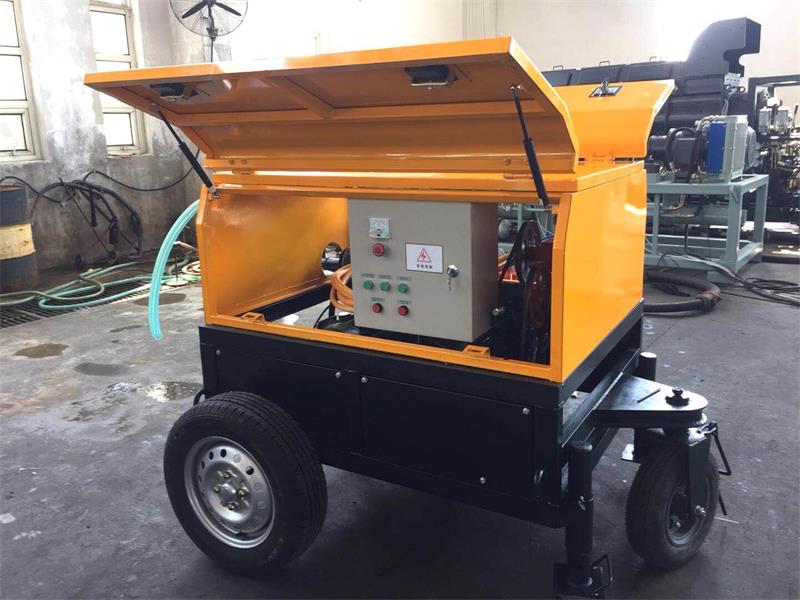

LD5 small portable foam concrete machine is special designed for small scale construction or
production. CLC block machine has small volume and easy to move. Pumping, foaming and mixing
system are assembled as a whole body, conveniently to use. This lightweight concrete machine
adopts peristaltic pump, and it is the best option for making Cellular lightweight concrete block,
LD5 cellular lightweight foam concrete machine also can be used for making wall panel, roof
construction, floor heating and foundation backfilling.
► Application:
1. LD5 lightweight concrete foam machine can be used in producing various specifications of cement
foam board, cement foam bricks and external wall insulation material.
2. Also applied for insulation, moisture proofing, anticorrosion of water, heating and transmission
oil pipeline, insulation of low temperature cold store and refrigerated depot section.
3. This small portable foam concrete machine can be used in filling tunnel and mine internal voids etc.
► Features:
1. LD5 small foam concrete machine can make the foaming, mix, pump together.
2. LD5 foam concrete machine with peristaltic pump can automatically adjust the density.
3. LD5 foam concrete machines can easy to control and operate.
► Technical Data:
Model
|
LD5 foam concrete machine
|
|
The actual output (m3/h)
|
3-5
|
|
Max.convening distance(m3)
|
Horizontal | 300 |
Vetical | 40 | |
Voltage(V)
|
380 or as request | |
Power | single /three phase | |
Total motor power(kw) | 7.7 | |
MIxing tank capacity (L) | 200 | |
Filling height (mm) | 880 | |
Total weight (kg) | 910 | |
Over dimension(mm) | 2100*1340*1390 |
