LGP500/2000/165H-E Cement grout plant for backfill

  • Type: LGP500/2000/165H-E
  • Weighting Load: 200Kg
  • Mixer Volume: 500L
  • Agitator Volume: 2000L
  • Hose Pump Output: 165L/min
  • Dimension: 4100×2100×2500mm

  • cement grout plant for cementing 500m depth shole
  • grout plant goundation backfill
  • grout plant for backfill
  • cement grout plant for depth shole
Grouting Plant
Grout Mixer and Agitator
Grout Pump
HydroSeeders
Refractory Gunite/Mixer
Shotcrete Machine
Industrial Peristaltic Pump
Foam Concrete Machine
Concrete Mixer
Concrete Pump
Plaster Machine
hydraulic pump station
Customized Service

Phone/Viber/Wechat

+86-18538591025

Whatsapp

+86-18538591025

Email

sales@leadcrete.com

skype:

machine.machine6

ADDRESS

Xisihuan Ring-Road East, Tielu, Xiliu Lake sub-district, Zhongyuan District, Zhengzhou, Henan China

■Introduction
 Description:

LGP500/2000/165H-E Cement grout plant for backfill is a combination of mixer machine, agitator and hose grouting pump in one plant, it is simple, compact injection systems, which have proven themselves on construction site for mixing, pumping and grouting cement, bentonite, anchor injection, slurry, fly ash, stone powder, insulation slurry, high solids slurries, sealing wall masses or other filling materials, through the high-speed colloidal grout mixer a homogenus disrupted suspension is produced.

LGP500/2000/165H-E Cement grout plant is connected with cutting-edge technology to realize automatic operation of
cement grout plantLGP500/2000/165H-E is equipped the automatically batching weight system and PLC control system to automate operations.  LGP500/2000/165H-E grout station with weigh 200Kg, mixer volume 500L, agitator volume 2000L, hose pump displacement 165L/min, has large volume suitable for large projects.

We could also customize grout plant for backfill according to your demands. If you have cooperation intentions in cement mixing, grouting and grouting plant,  please contact us without any hesitation, once confirm the detailed needs on the cement grout plant, better solution will be offered to you at first time.

cement grout plant for cementing 500m depth shole



cement grout plant for backfill depth shole



 Application:

LGP500/2000/165H-E Grout plant for goundation backfill  is suitable for all grouting applications with cement and ultra fine cement, bentonite suspensions for micro tunnelling, pipe jacking and directional drilling. The grout equipment mainly used for grout and backfill grout injection in depth shole, TBM tunnel construction or ground and underground construction, such as highways, railways, water and electricity, construction, mining etc.


 Features:
1. Mixer, agitator, hose pump in one frame base, compact size and it is easy to operate. Cement grout plant for cementing 500m depth shole also takes up  a small space.
2. C
ement grout plant for depth shole is with high turbulence mixing.
3. Heavy duty industrial hose pump.
4. Automatically batching and automatically mixing system.
5. PLC control system, operation mode can be operated automatically and manually.

■Product Details
cement grout plant for goundation backfill

Cement grout plant for goundation backfill

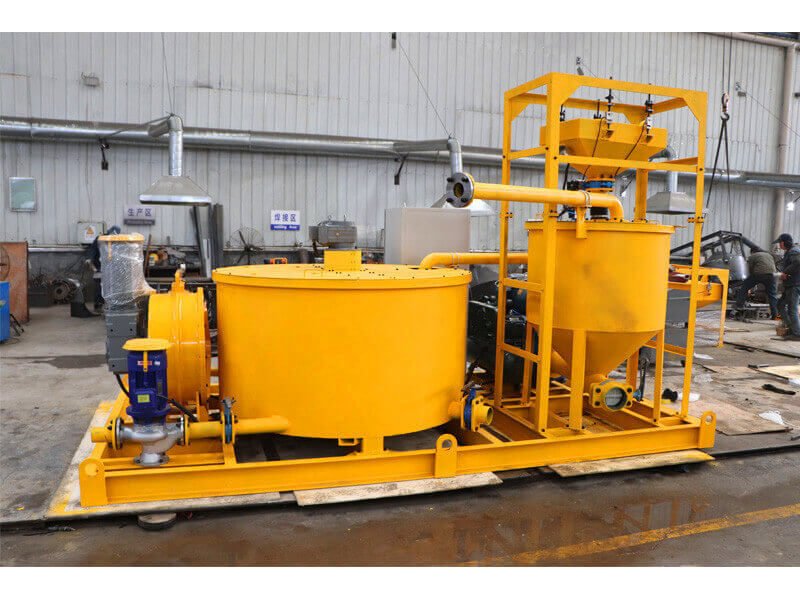

cement grout plant for backfill depth shole

Cement grout plant for backfill depth shole

cement grout plant for cementing

Cement grout plant for cementing

cement grout plant for cementing 500m depth shole

Cement grout plant for cementing 500m depth shole

electric cement grout plant

Electric cement grout plant

electric motor cement grout plant

Electric motor cement grout plant

■Technical Parameters

Type

LGP500/2000/165H-E Cement grout plant for backfill

Weighting

Sensor

S-type tension pressure sensor

Load

200Kg

Output Signal

Current signal

Vibration Motor

24V, 4KN, 0.37Kw

Mixer

Volume

500L

Slurry Pump Power

11Kw

Output

80m3/h

Agitator

Volume

2000L

Geared Motor Power

3Kw

Speed

45rpm

Water Pump Output

15m3/h

Water Pump Power

5.5Kw

Hose pump

Output

165L/min

Pressure

1.0MPa

Power

 7.5Kw

Air compressor

2.2Kw

Power supply

220V(380V,415V Multiple choices)

Dimension

4100×2100×2500mm

Weight

3200Kg

We could also customize cement grout plant according to your demands.
