LGP500/700/100 PI-D Grout Mixing Plant

  • Type:Two Work Cylinders
  • Rated output&pressure:100L/min with 5MPa
  • Rotating speed of engine:2200r/min
  • Dimensions:2900*1960*1550mm
  • Weight:1790kg

  • Grout Mixing Plant
  • diesel grout plant
  • diesel grout mixer pump
  • grout injection pump plant
Shotcrete Machine
Refractory Gunning Machine
Grouting Plant
Grout Mixer and Agitator
Grout Pump
Industrial Peristaltic Pump
Plaster Machine
Soil Spraying Machine
Concrete Pump
Foam Concrete Machine
hydraulic pump station

TEL

86-371-63902781

skype:

shotcreter

Email

sales@leadcrete.com

FAX

86-371-63526675

ADDRESS

Xisihuan Ring-Road East, Tielu, Xiliu Lake sub-district, Zhongyuan District, Zhengzhou, Henan China

■Introduction

 Description:
The LGP500/700/100PI-D Grout Mixing Plant is combination of mixer, agitator and hydraulic piston
grout
pump in one plant. It’s mainly used for ground and underground engineering such as highway,
railway, hydropower, construction, mining.
After the slurry is completely mixed by mixer, then is pumped into agitator. And the pump suction is
connected to the outlet of agitator. To turn on this grout pump, then to start to grout. Due to this
station is combination of mixer, agitator and grout, so the continuous grout is available.
The plant is hydraulic drive with compact structure, convenient operation, less space occupation.
The output is stepless variable.

Structure and Working Principle

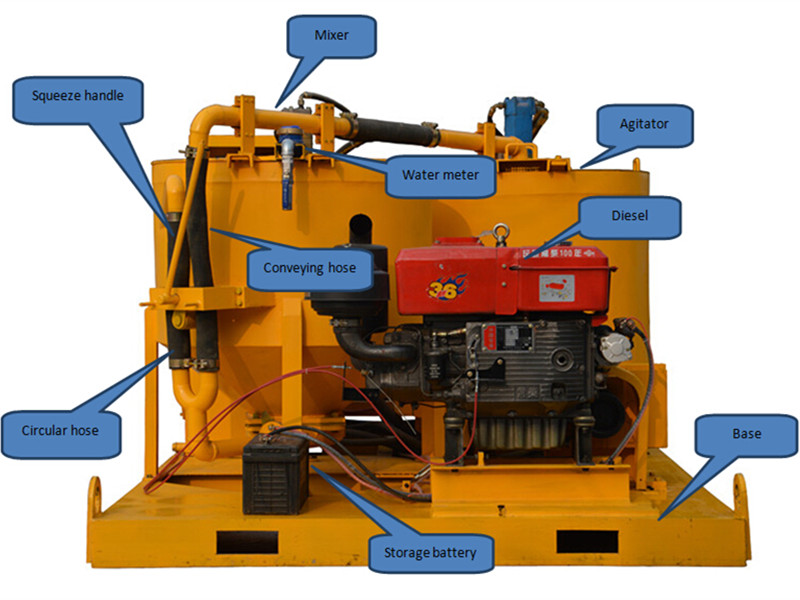

This diesel grout plant is combination of mixer, agitator, grout pump, hydraulic power pack, diesel
engine,

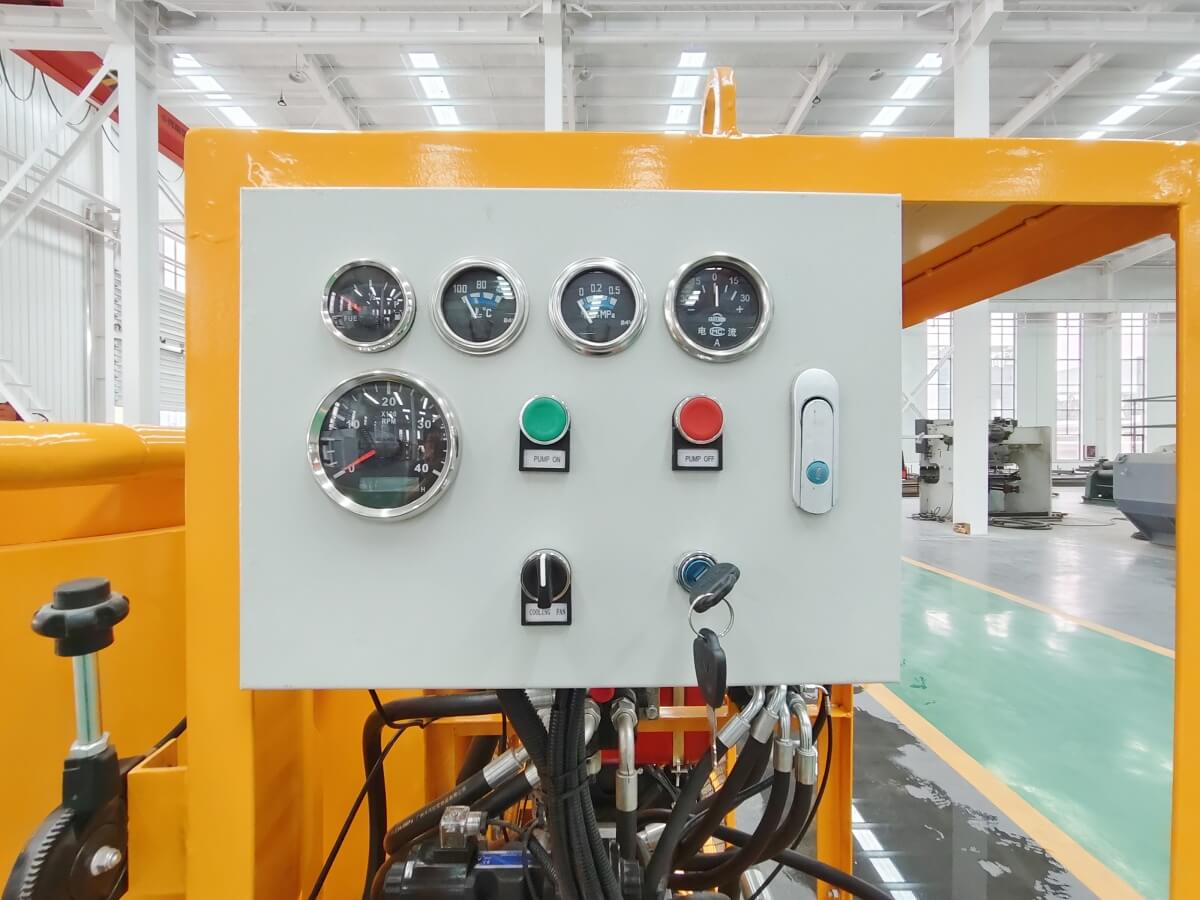

electric control, squeeze handle, etc.  The worldwide famous brand hydraulic elements ensure
the
safety. The diesel is Changchai EH36 diesel which ensure the power supply.

 Application:
This grout injection pump plant can be used for grouting in soil,earth foundation stabilization,
waterproofing, tunnel lining,
underwater foundation, bridge decks, deep well casing, slope line
grouting, etc


 Features:
1. Compact size, It is combination of mixer, agitator and piston grout pump in one base frame;

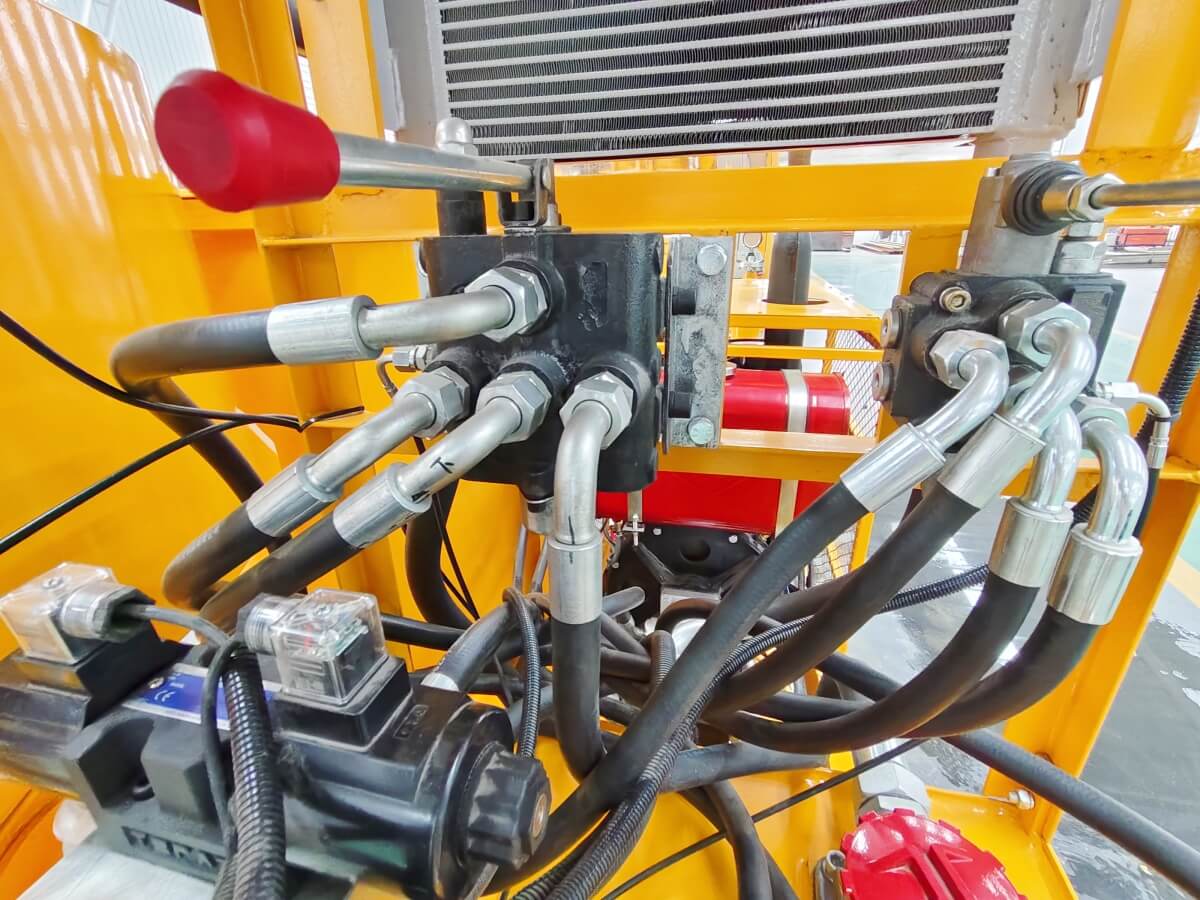

2. Yuken relief valve and directional valve for hydraulic system of grout pump;
3. Butterfly valve of mixer and agitator;

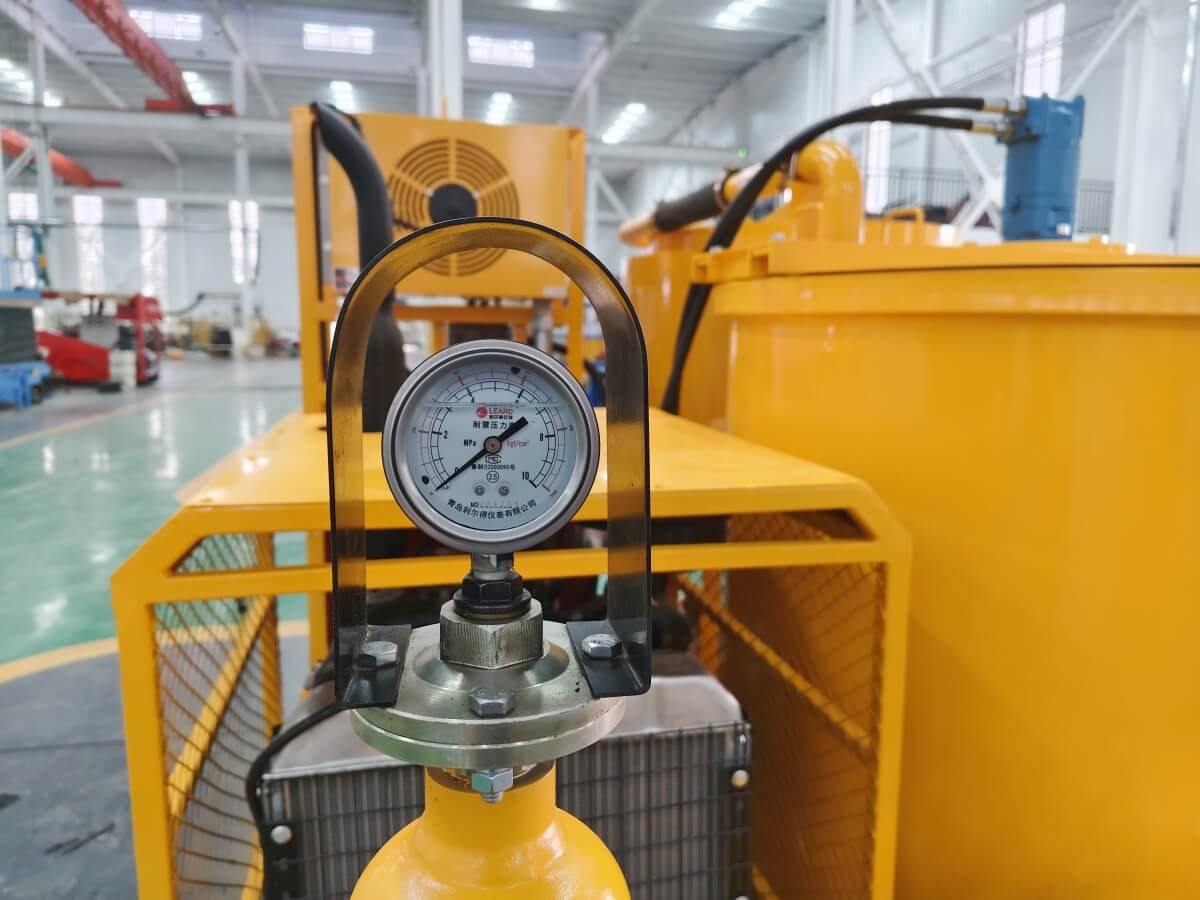

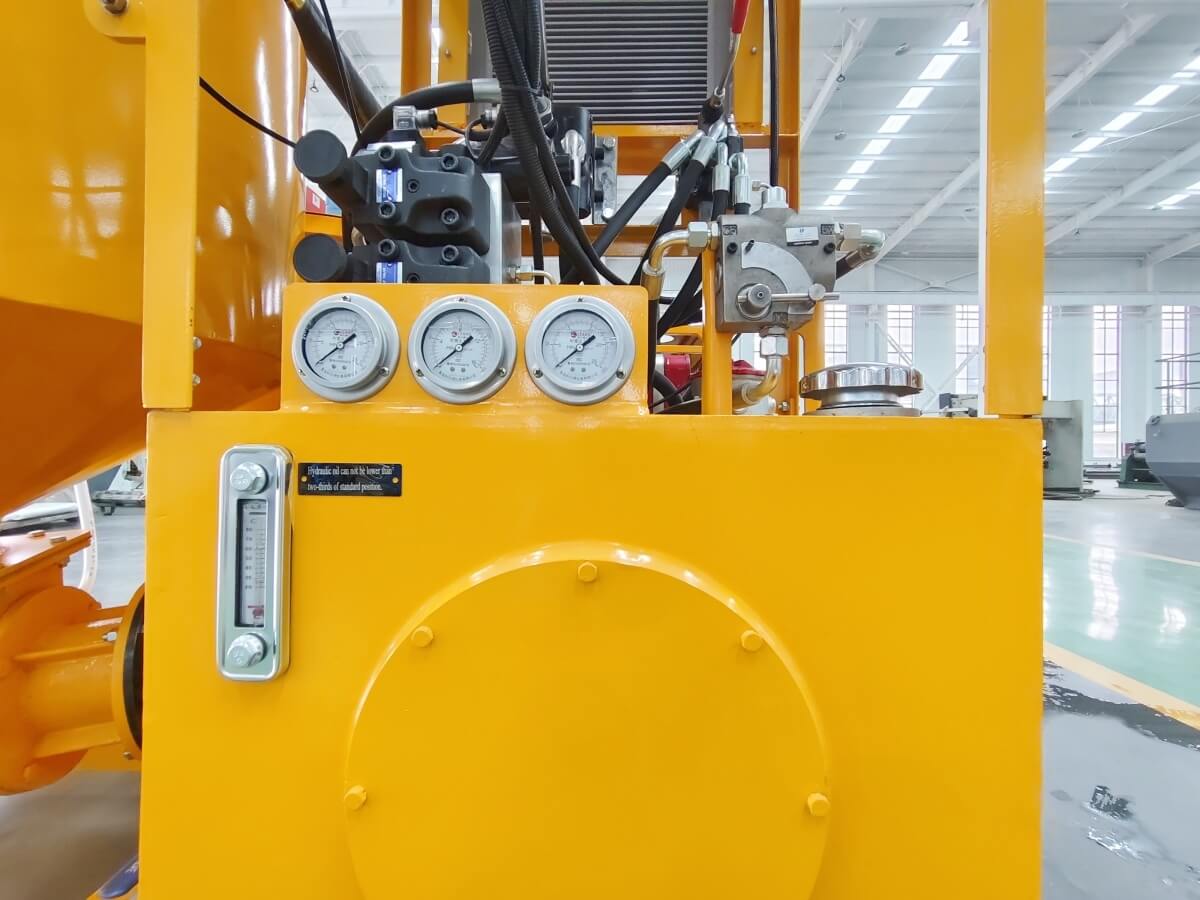

4. Oil temperature gauge can automatically control cooler fan working in normal temperature range,
if temperature is too high, the machine will stop work automatically;
5. Operation and maintenance are simple;
6. With ISO, CE certificate.

■Product Details

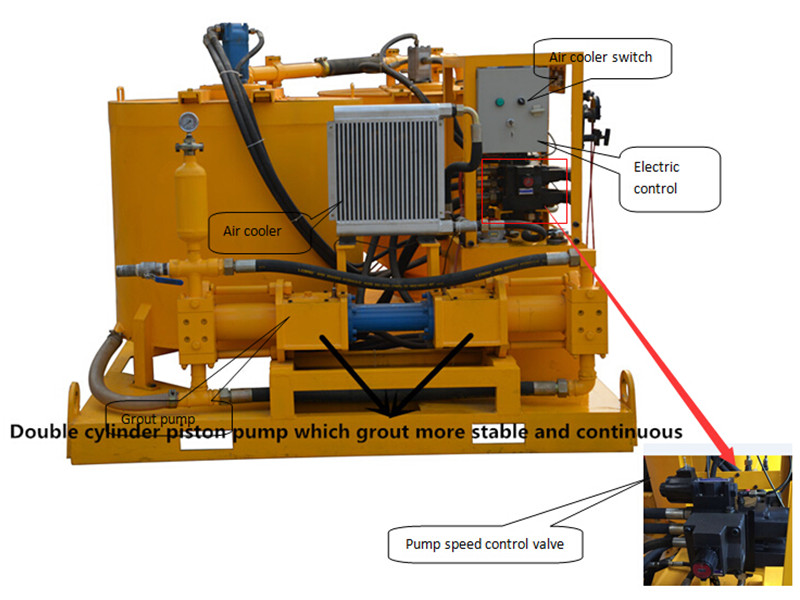

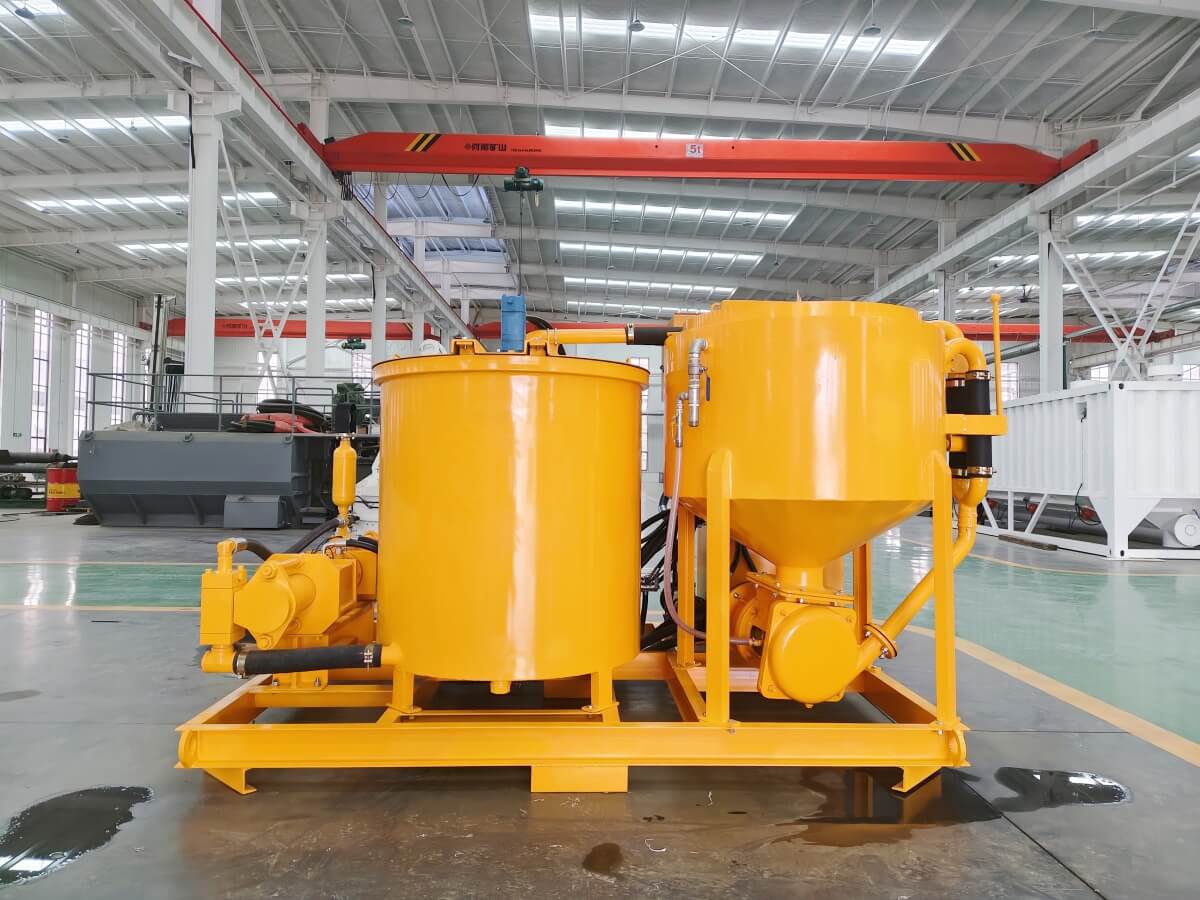

grout plant details

LGP500/700/100 PI-D Grout Plant Details

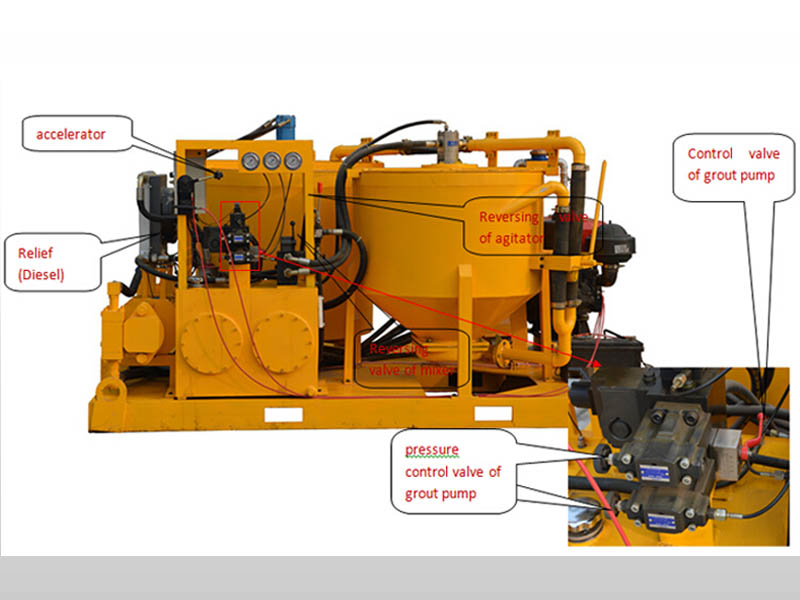

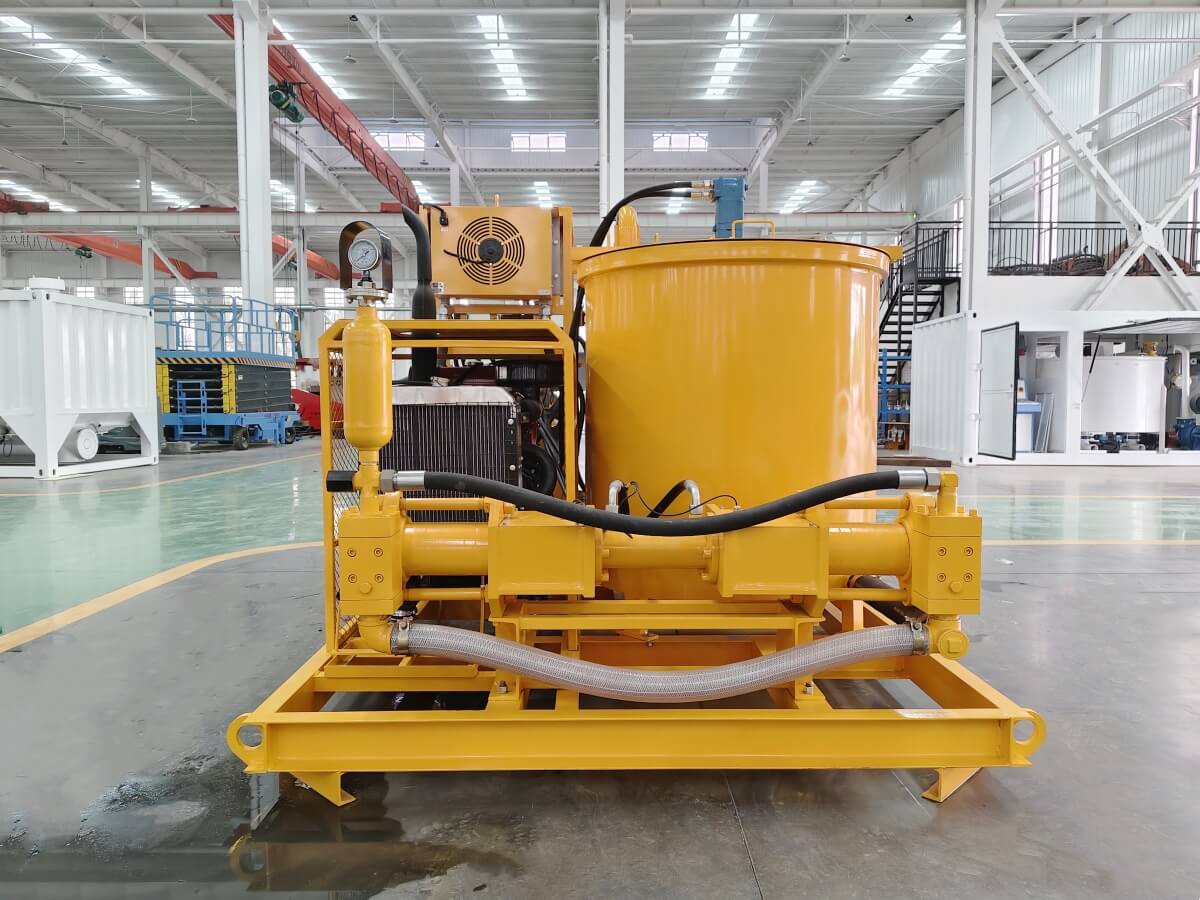

grout plant details

LGP500/700/100 PI-D Grout Plant Details

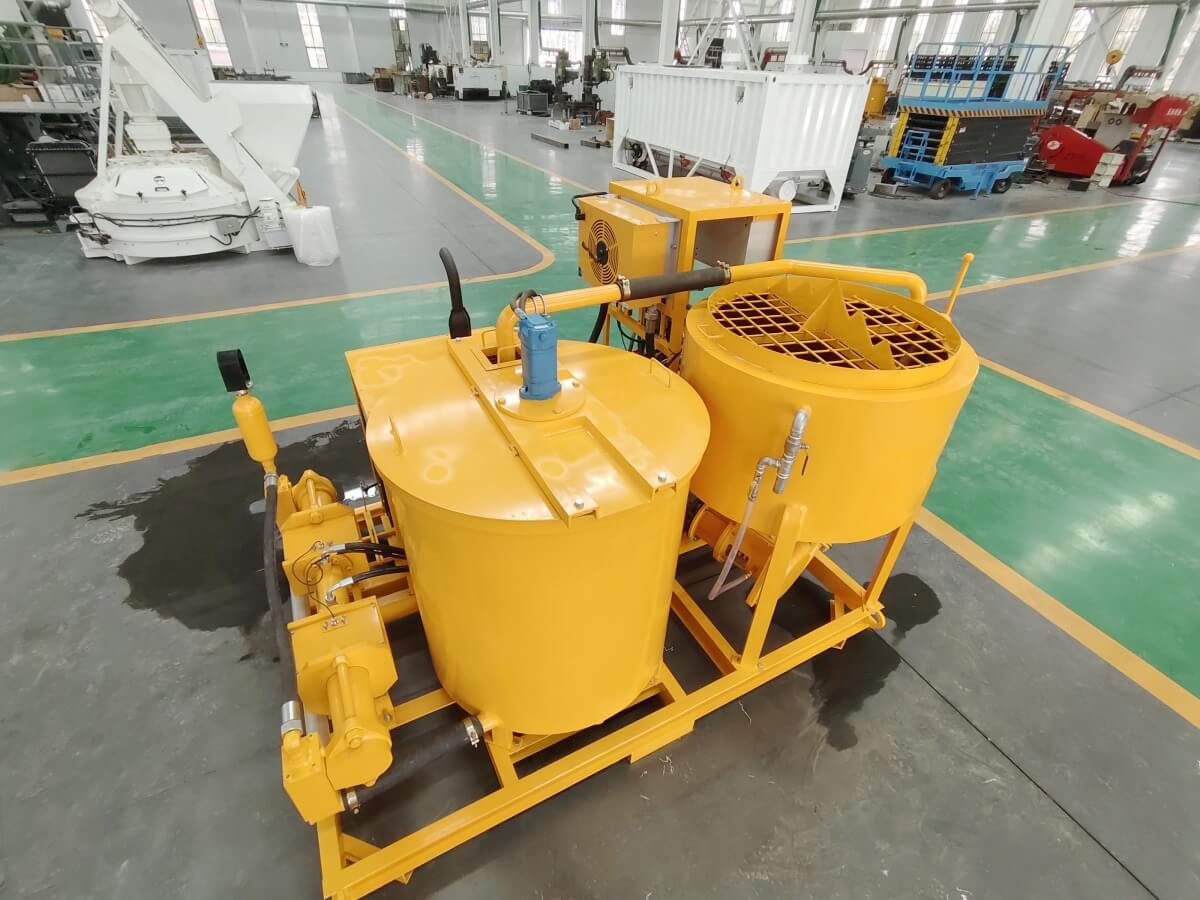

grout plant details

LGP500/700/100 PI-D Grout Plant Details

■Technical Parameters

Technical Data:


Type LGP500/700/100PI-D Grout Plant
Diesel engine 25kw/36HP
Rotating speed of engine 2200r/min
Dimensions 2900*1960*1550mm

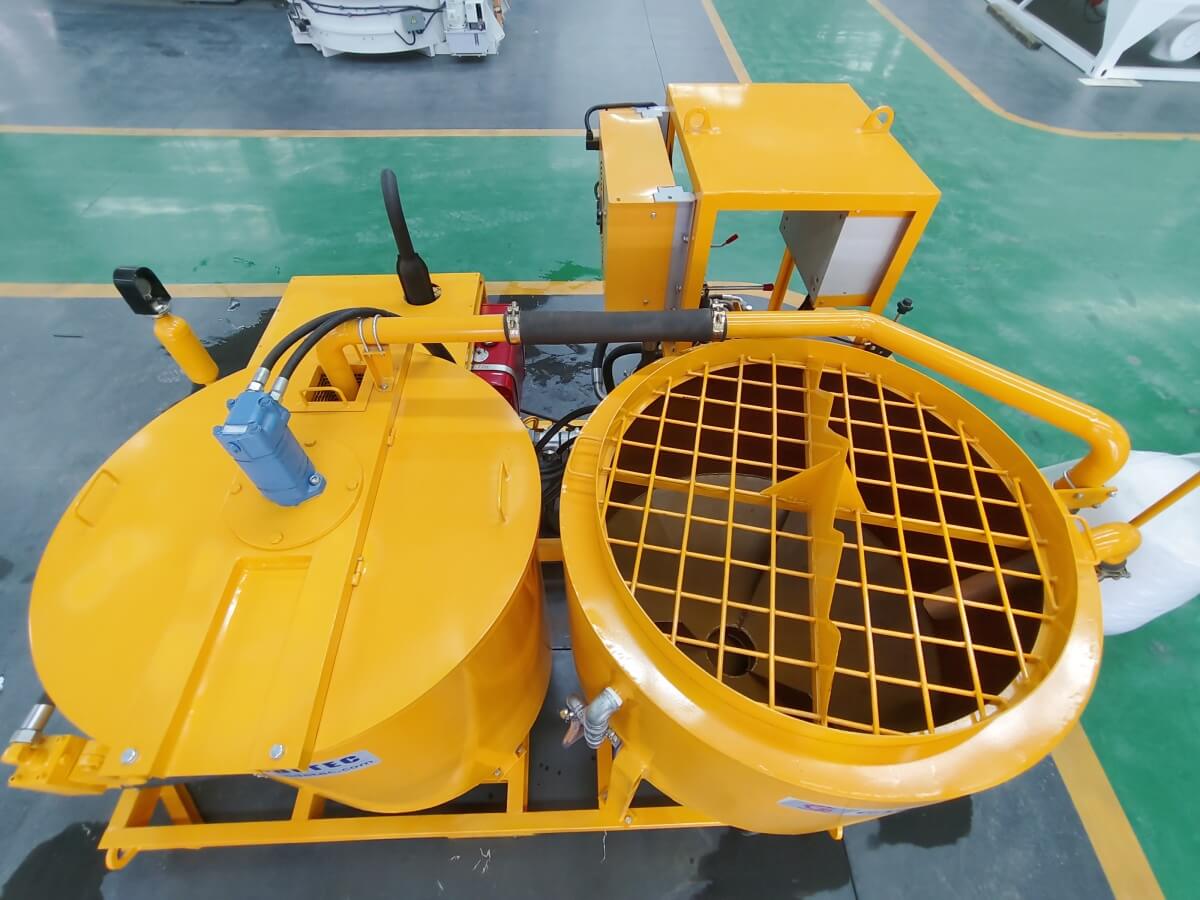

Mixer
Capacity 500L
W/C ratio 0.5-1
Rated Rev. 1500rpm
Agitator
Volume 700L
Rated Rev. 36rpm
Pump
Type Hydraulic Two Cylinder Piston Pump
Pressure 0-50 bar
Output 0-100 L/min
