► Description:

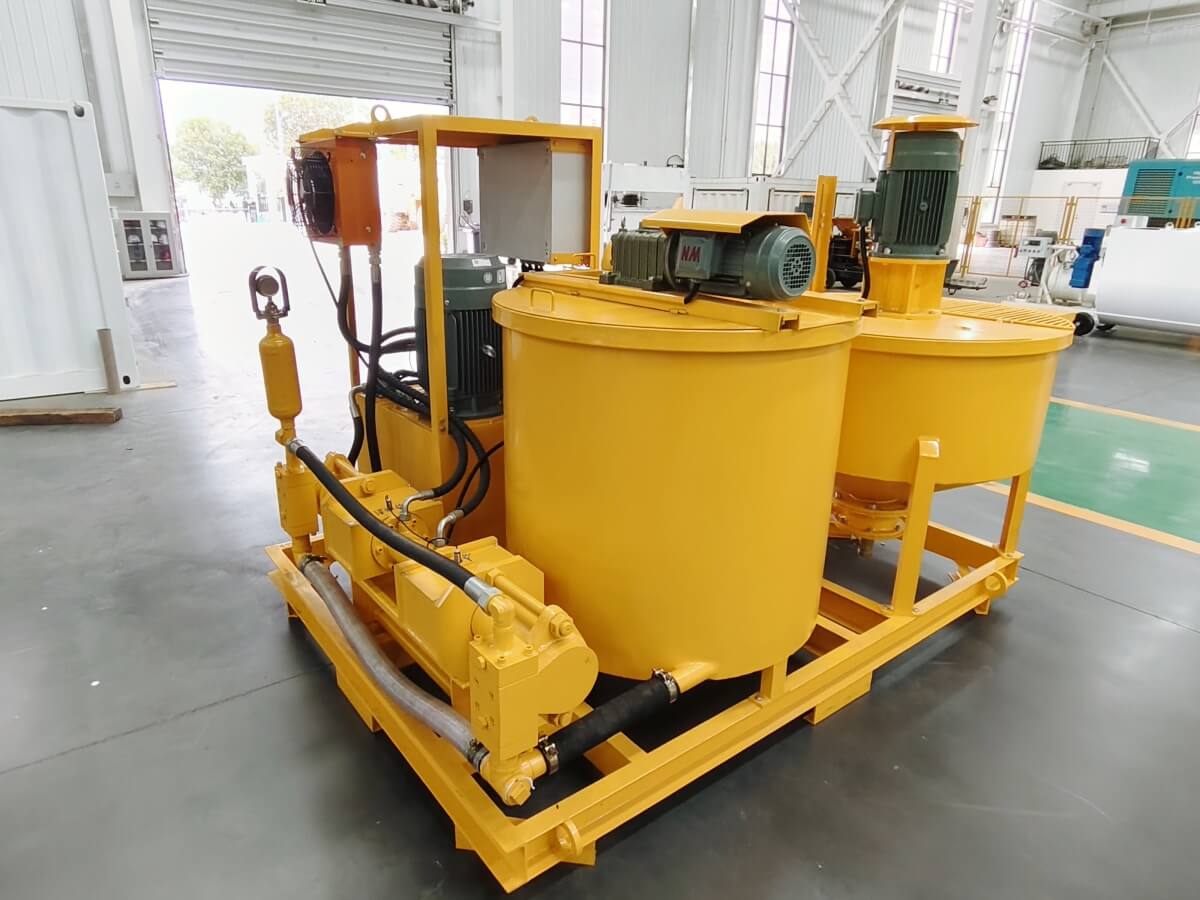

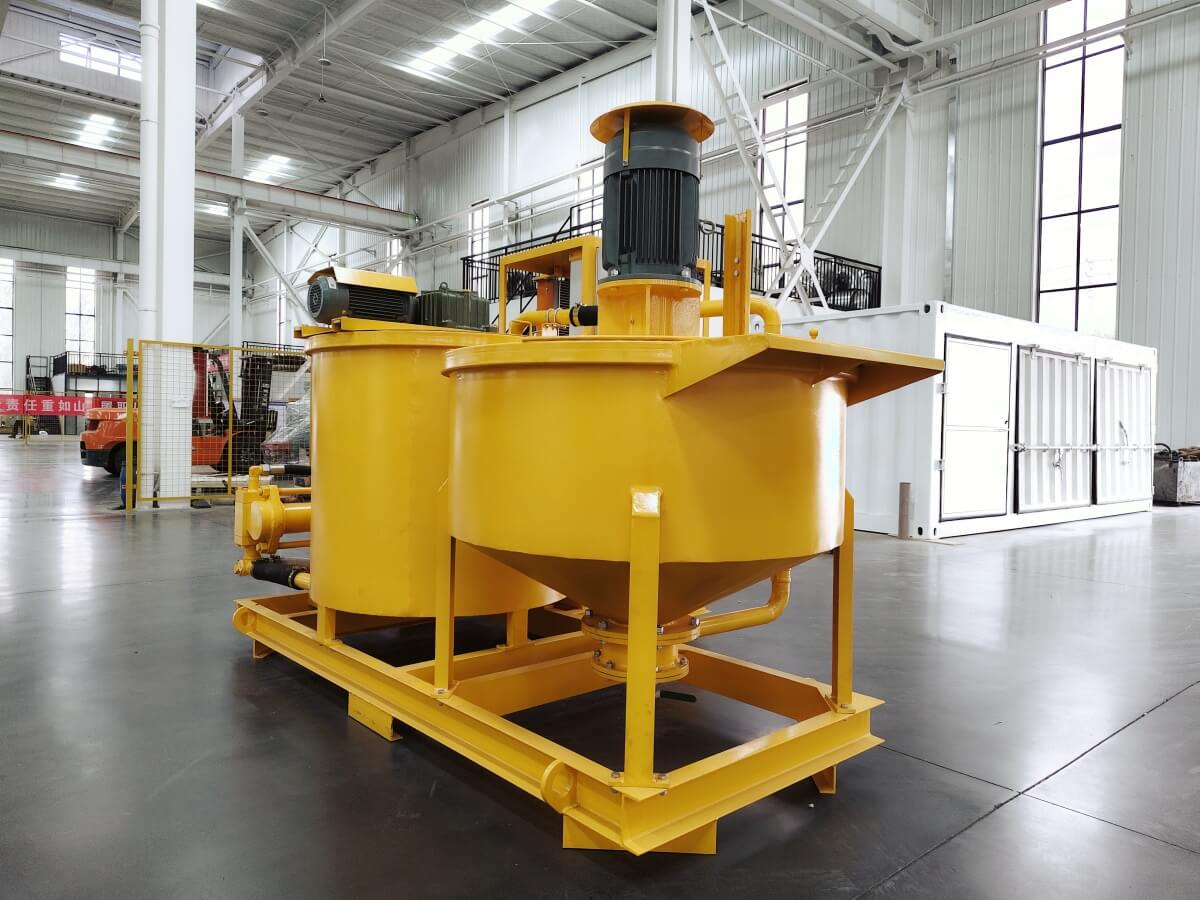

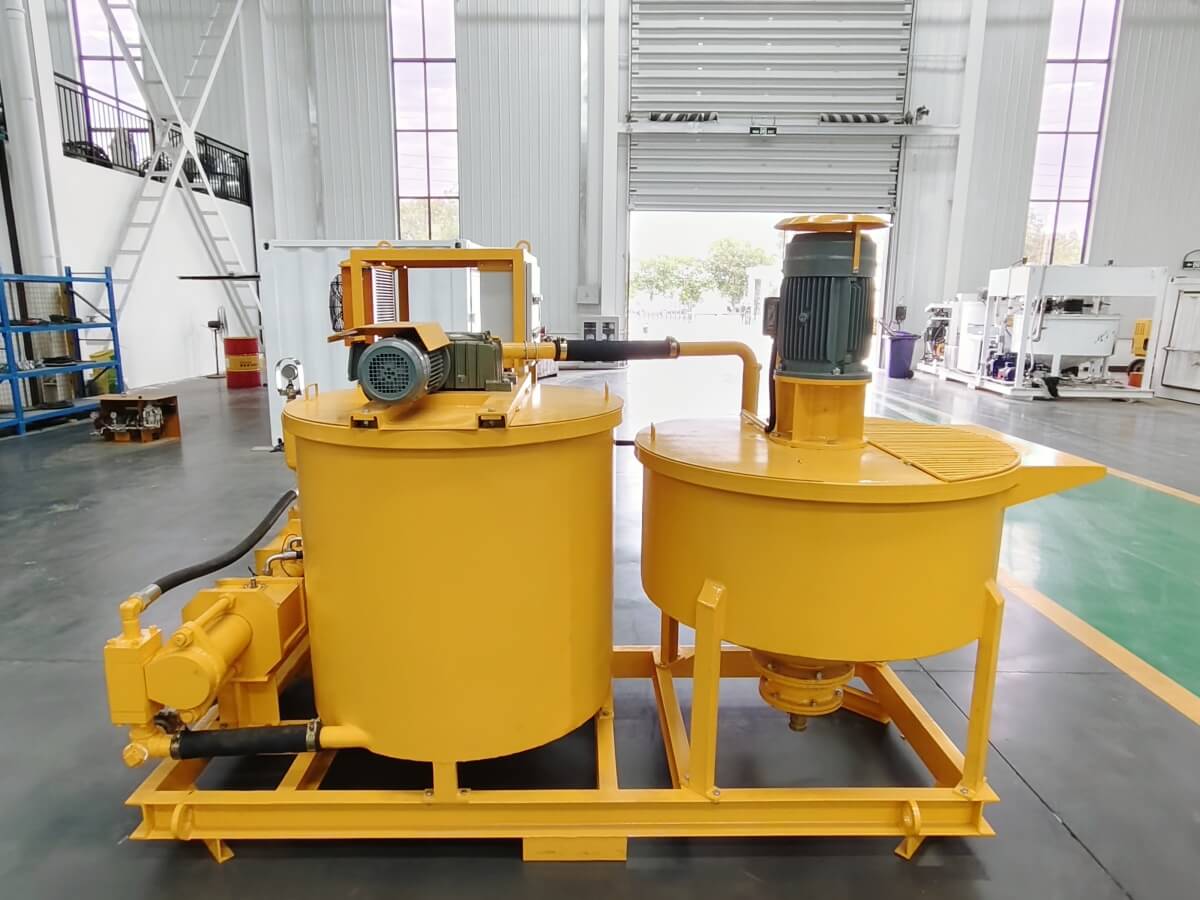

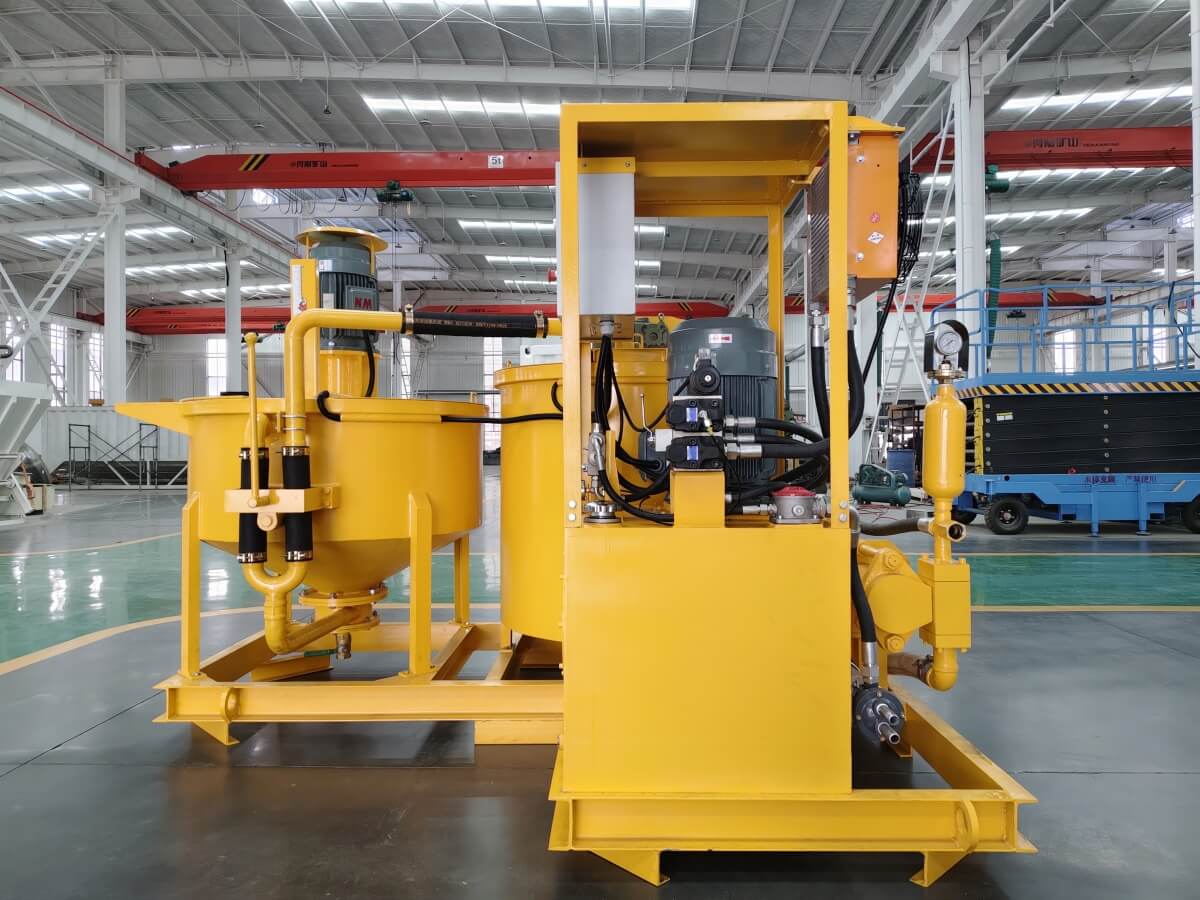

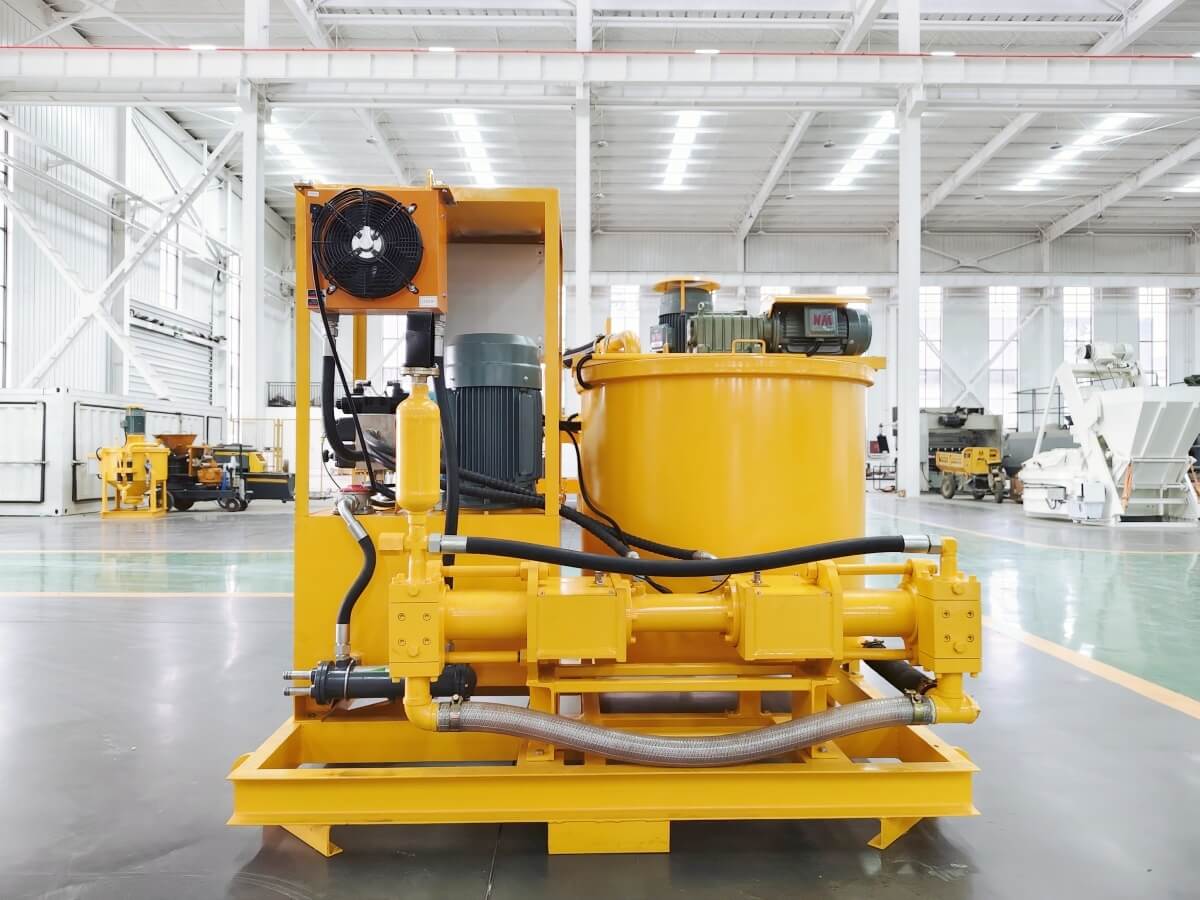

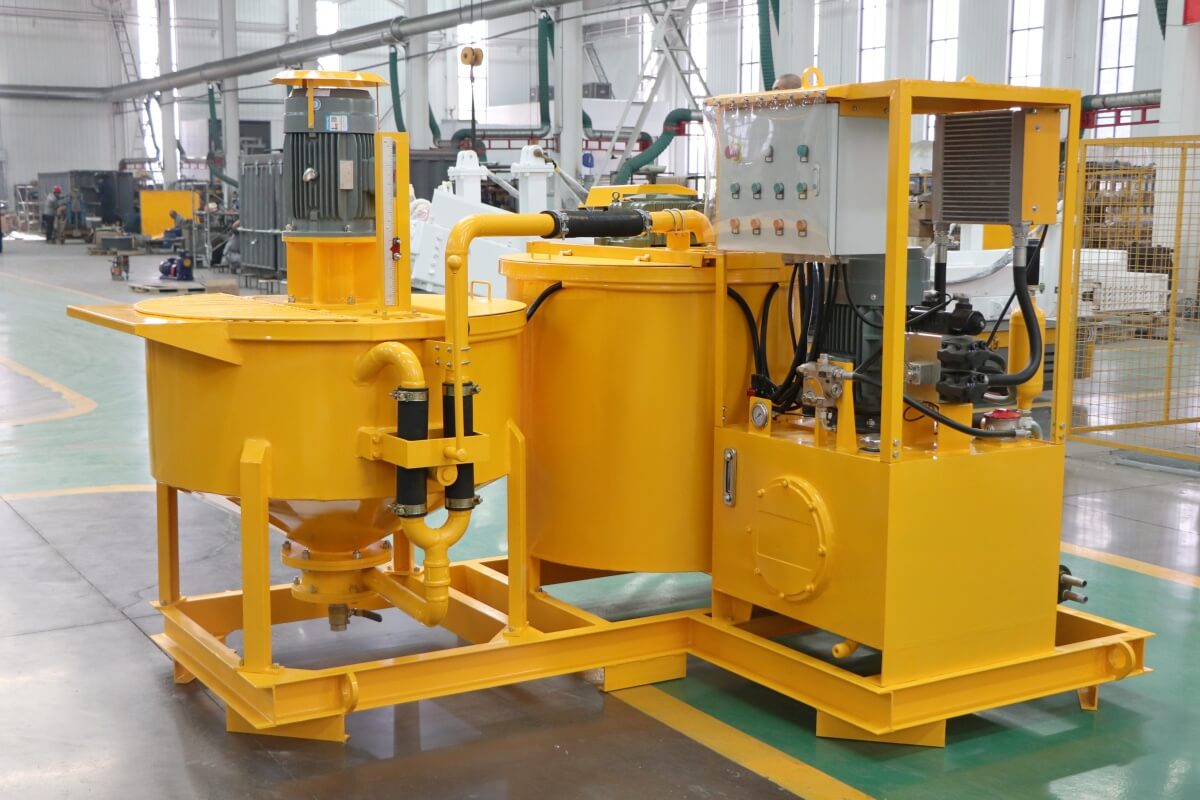

LGP500/700/100PI-E grout station is a combination of mixer, agitator and grout pump in one plant. It
is mainly used in highway, railway, hydropower, construction, mining and other ground and

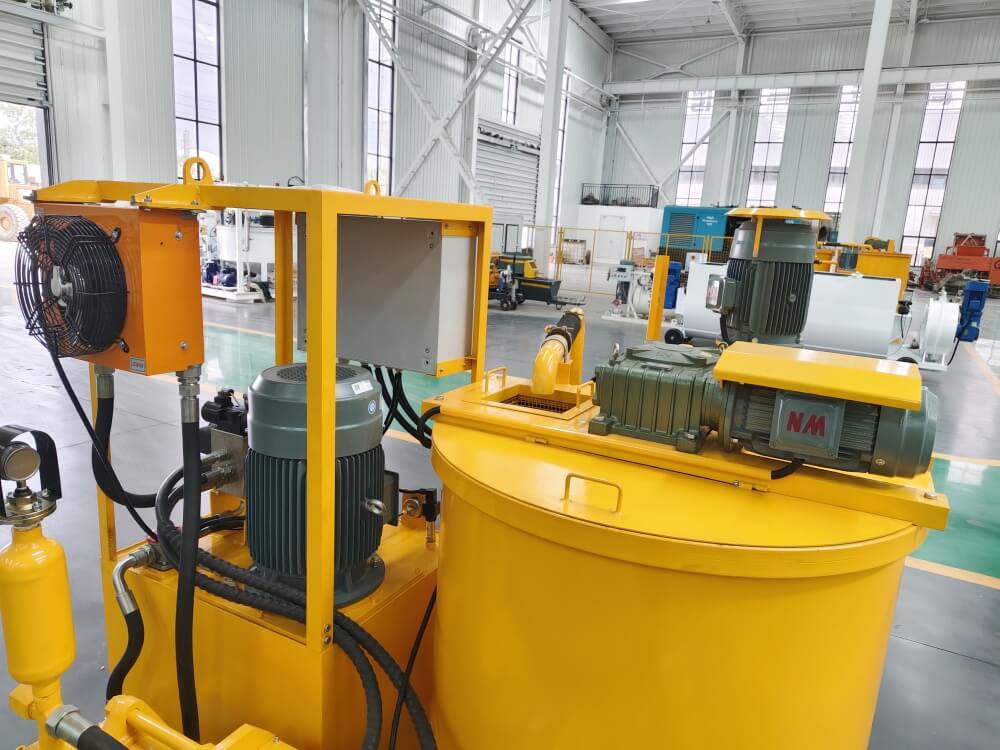

underground construction. High speed vortex mixer ensures mix quickly and evenly. Water, cement
and other media are quickly mixed into a homogeneous slurry. Then the mixed slurry was delivered to
the agitator. Grout pump injects from the mixing drum (storage tank). This ensures a continuous

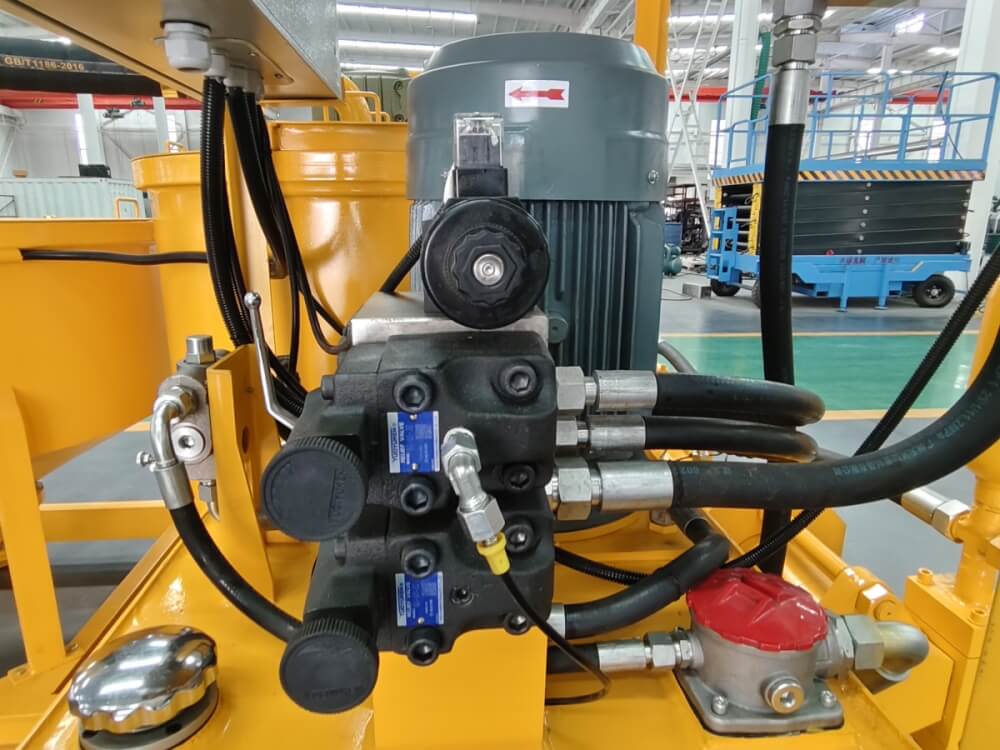

mixing and grouting operations. The grouting pump is hydraulic drive. Grouting pressure and
displacement is stepless adjustable. Compact size and it is easy to operate. It also takes up a small
space.
► Application:
1. Civil engineering - dam, tunnel, subway, mine, soil nailing wall, curtain, anchor, cable trench
and anchor grouting;
2. Building structure - building and bridge repair, foundation reinforcement, slope support, soil
compaction, terrg grouting;
3. Engineering - underwater foundation, offshore platform, coast foundation grouting reinforcement
4. Mine application - roadway reinforcement, backfill, waterproof grouting.
► Features:
1. Grouting pressure, displacement is stepless adjustable;
2. Simple structure, light weight, easy maintenance;
3. Double grouting cylinder, continuous output with small pulse;
4. Less spare parts ensure low maintenance costs;
5. High speed vortex mixer ensures mix quickly and evenly;
6. Mixer and agitator switch by using squeeze handle, it is safe, reliable and easy to operate;

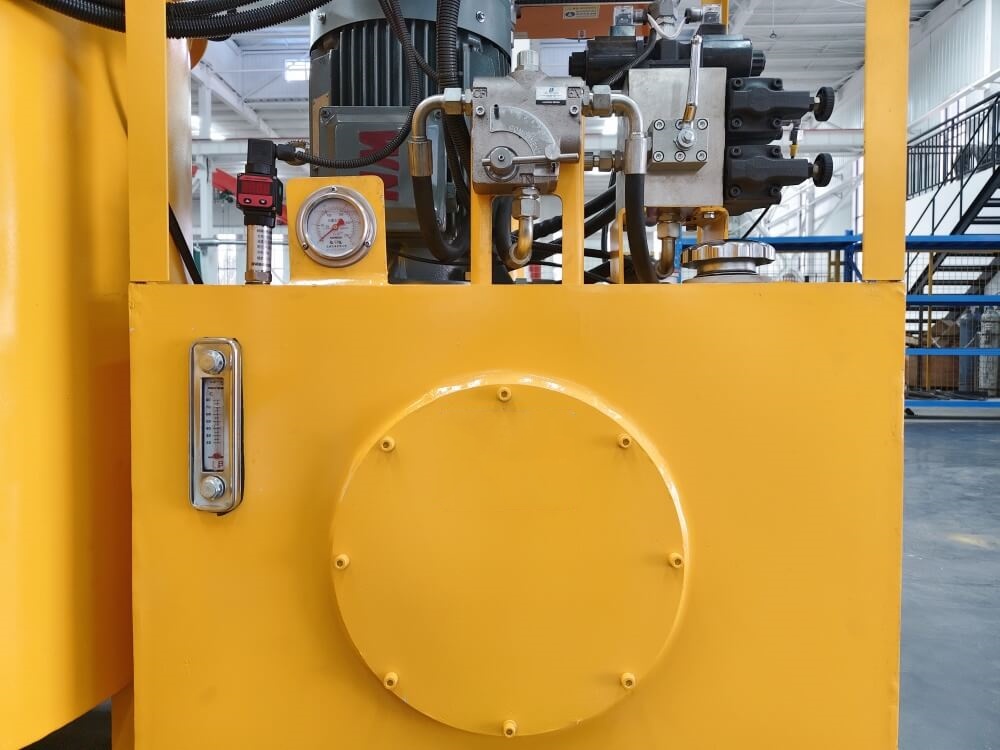

7. The motor has an overload protection function. Hydraulic system with oil temperature overheating
protection;
8. With CE, ISO certification.
►Technical Data:
Description | Data | ||||
Grout Station type | LGP500/700/100PI-E | ||||
Dimensions | 2700×1750×1650mm | ||||
Weight | 1440kg | ||||
Mixer | |||||
Capacity | 500L | ||||
Output | 7m3/h | ||||
Power | 7.5Kw, 1450rpm,50Hz,380V | ||||
Rated Rev | 1450rpm | ||||
W/C ratio | ≥0.5:1 | ||||
Agitator | |||||
Capacity | 700L | ||||
Rated Rev. | 36rpm | ||||
Power | 1.5KW, 50Hz,380V | ||||
Pump | |||||
Output | 0-100L/min | ||||
Pressure | 0-5MPa | ||||
Power | 15kw,50Hz,380V |
