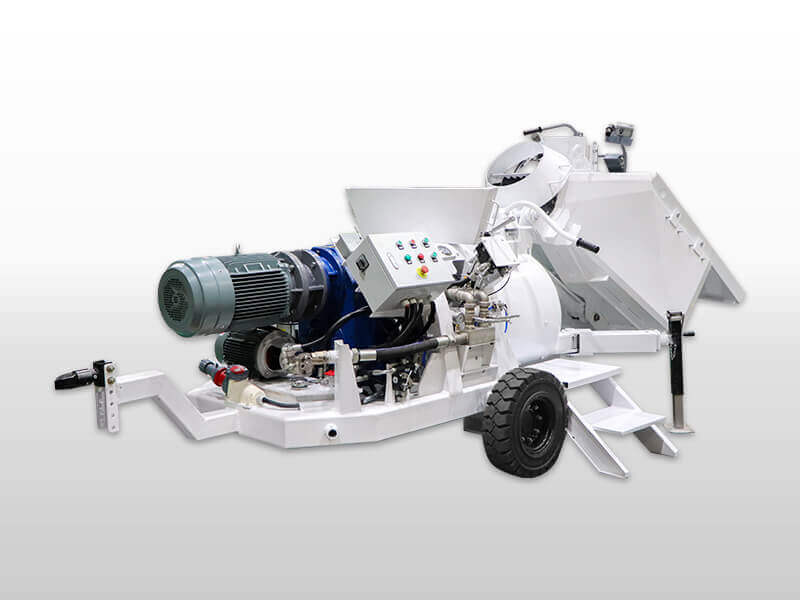

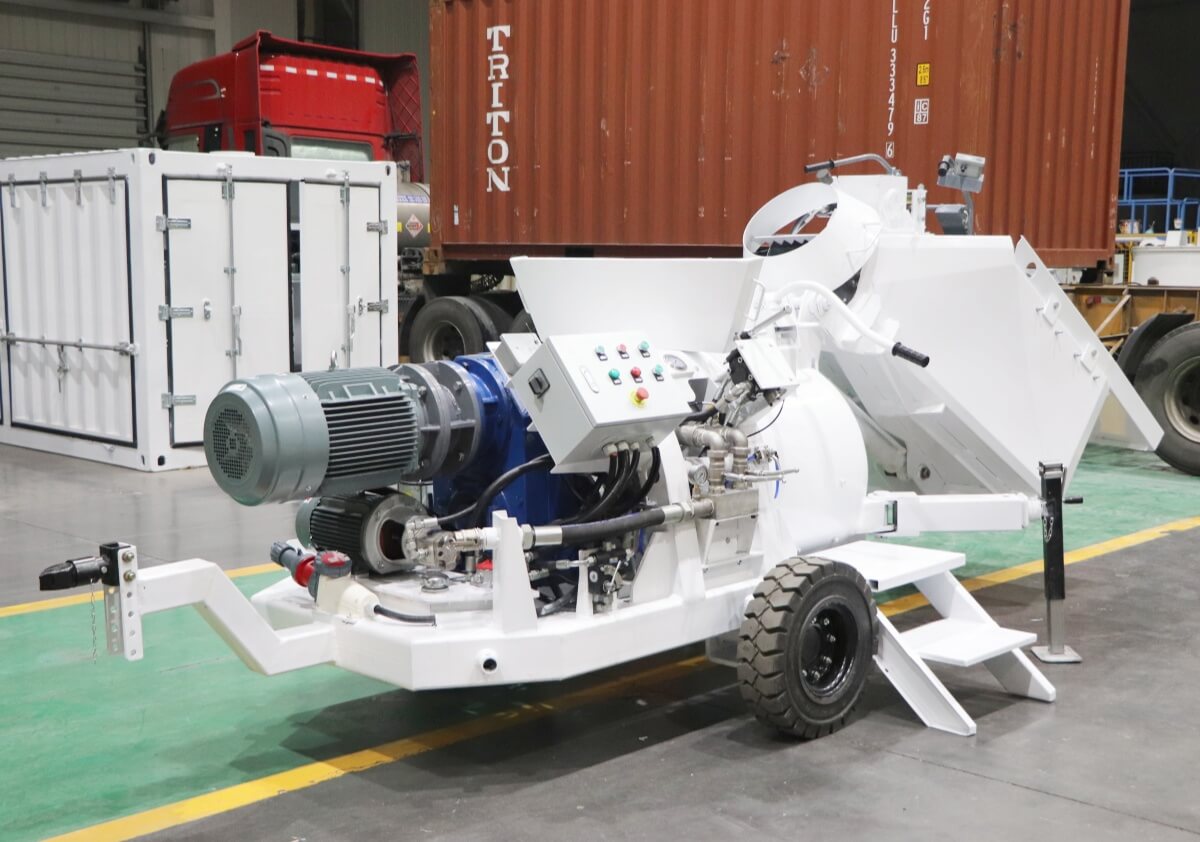

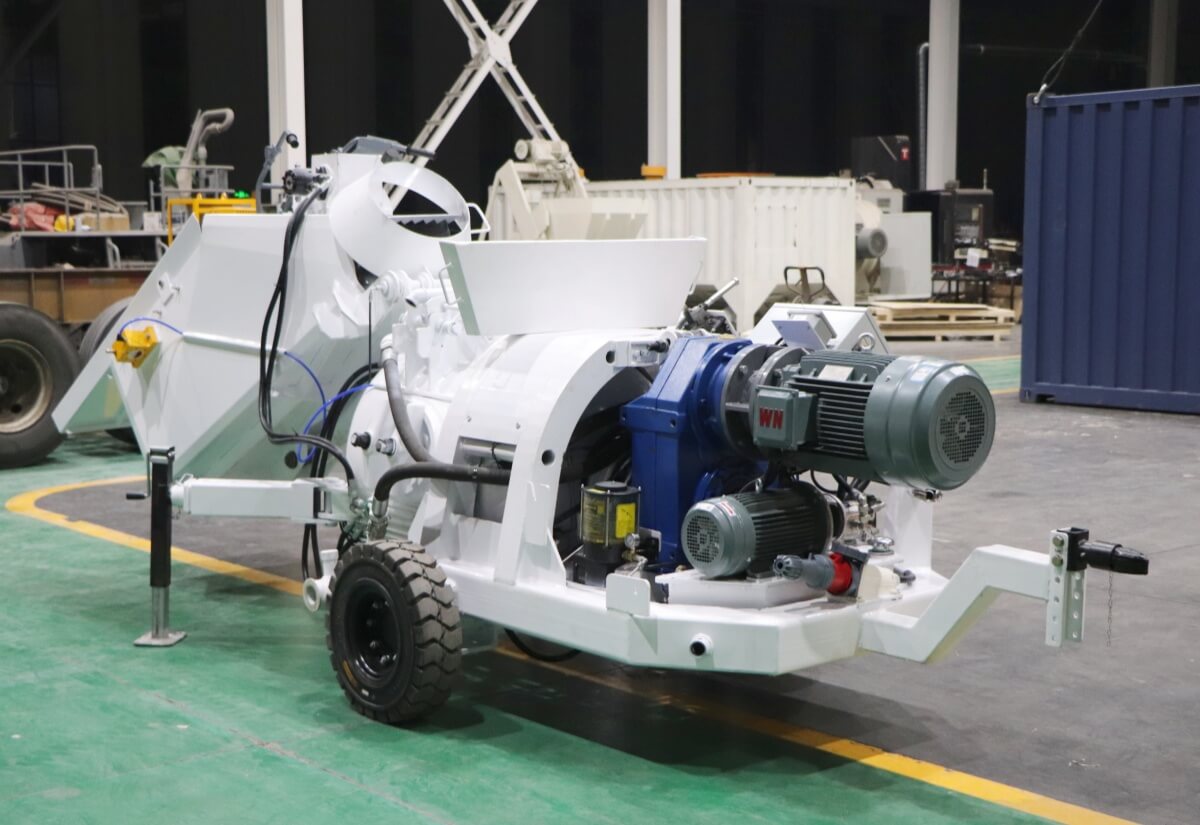

LPXT400-E Electric screed pump

  • Model: LPXT400-E
  • Mixing Motor: 22KW
  • Hydraulic Pump Motor: 4KW
  • Operating Voltage: 380V, 50HZ
  • Vessel Capacity: Gross 520L / Net 400L
  • Output Capacity: 9m³/h

  • electric screed pump
  • screed pump

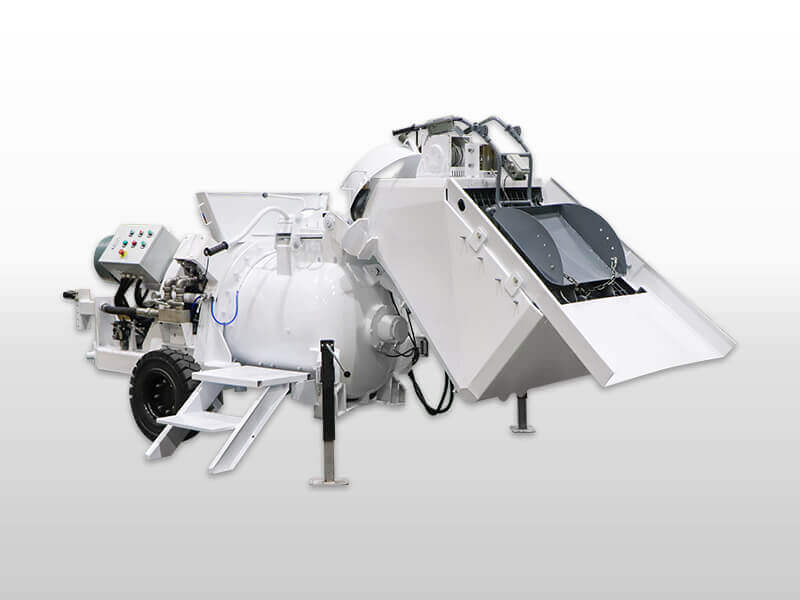

  • Screed Transfer Pump

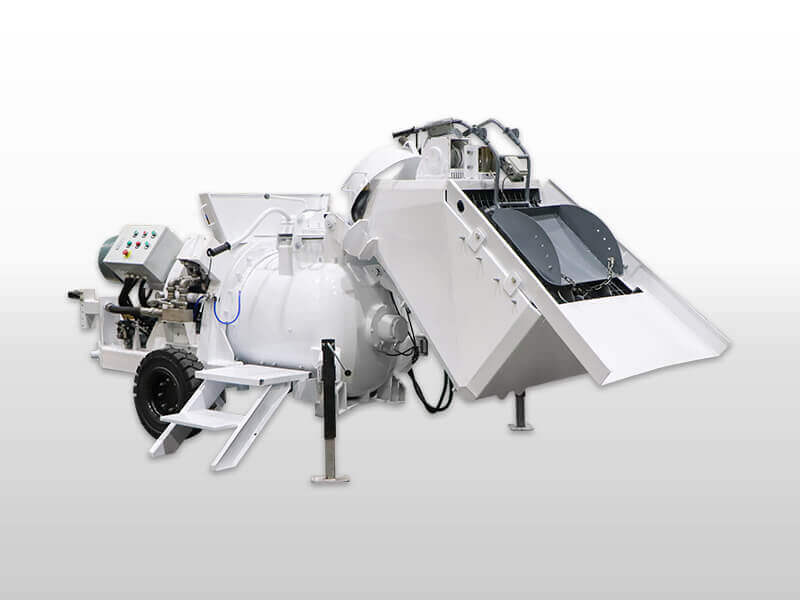

  • electric screed machine

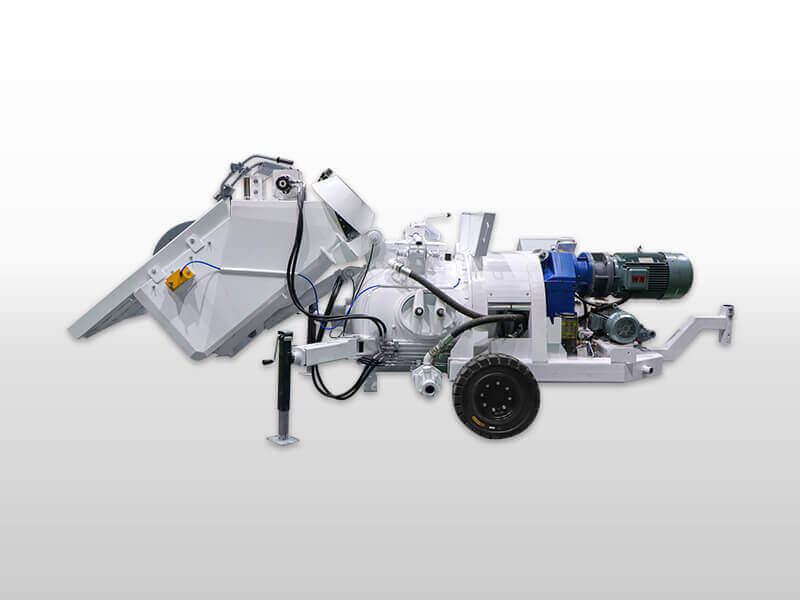

  • dry screed mixer pump
Grouting Plant
Grout Mixer and Agitator
Grout Pump
Plaster Machine
HydroSeeders
Refractory Gunite/Mixer
Shotcrete Machine
Industrial Peristaltic Pump
Foam Concrete Machine
Concrete Mixer
Concrete Pump
hydraulic pump station
Customized Service

Phone/Wechat

+86-18538591025

Whatsapp

+86-18538591025

Email

sales@leadcrete.com

ADDRESS

Xisihuan Ring-Road East, Tielu, Xiliu Lake sub-district, Zhongyuan District, Zhengzhou, Henan China

■Introduction
 Description:

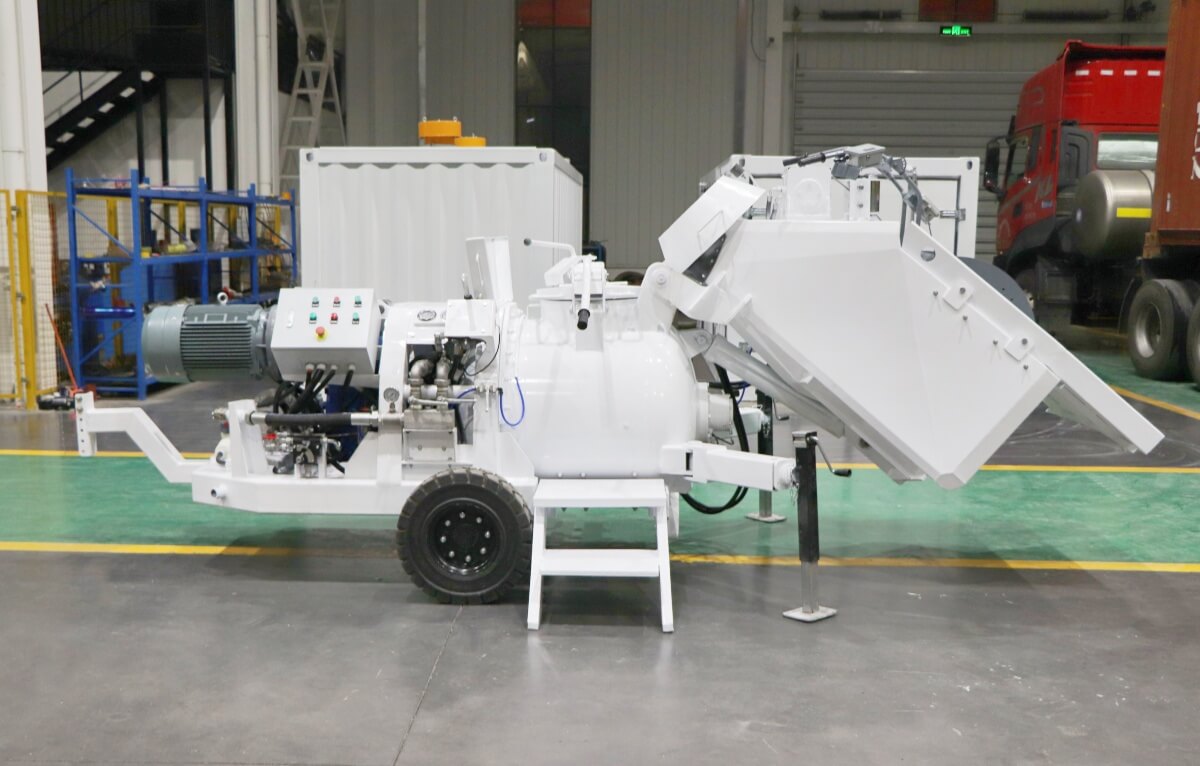

LPXT400-E Electric screed pump is engineered to supply steady and dependable power for the continuous conveyance of construction materials. Equipped with high-power motors, it delivers robust driving force, and its large-capacity mixing tank allows for more material to be mixed simultaneously. This machine consistently provides you with convenient and practical benefits for all your screed construction projects.

China screed pump


This new-type screed pump is capable of conveying materials both horizontally and vertically. An external air supply can serve as the conveying power, which, combined with its powerful mixing performance, guarantees the smooth transportation of materials within the entire working scope.

Electric Floor Screed Machine



Electric Screed Conveyors



Liquid Floor Screed Pumps


 Application:

LPXT400-E electric screed pump delivers reliable power through a pneumatic system, ensuring smooth and stable operation even in harsh and demanding construction environments.

Electric screed pump manufacturer

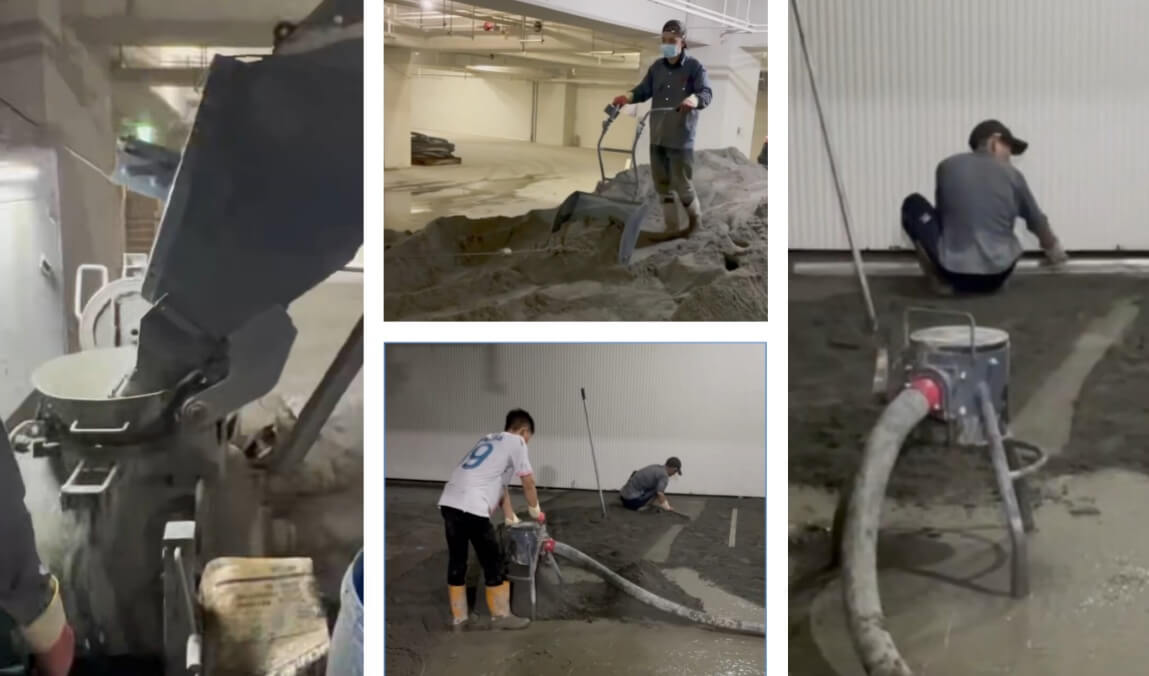

screeding machine application


As a pneumatic-powered screed mortar mixing and transfer machine, the LPXT400-E screeding machine
is specifically designed to fulfill two core functions in construction projects: continuous material conveyance (both horizontal and vertical) and high-efficiency mixing of mortar, screed, and other related construction materials.


 Features:

Electric screed pump delivers reliable power through a pneumatic system, with its core power configuration consisting of a 22KW mixing motor and a 4KW hydraulic pump motor. This dual-motor combination ensures smooth and stable operation even in harsh and demanding construction environments. As a professional pneumatic-powered screed mortar mixing and transfer machine, it boasts multiple practical features to boost construction efficiency and durability:

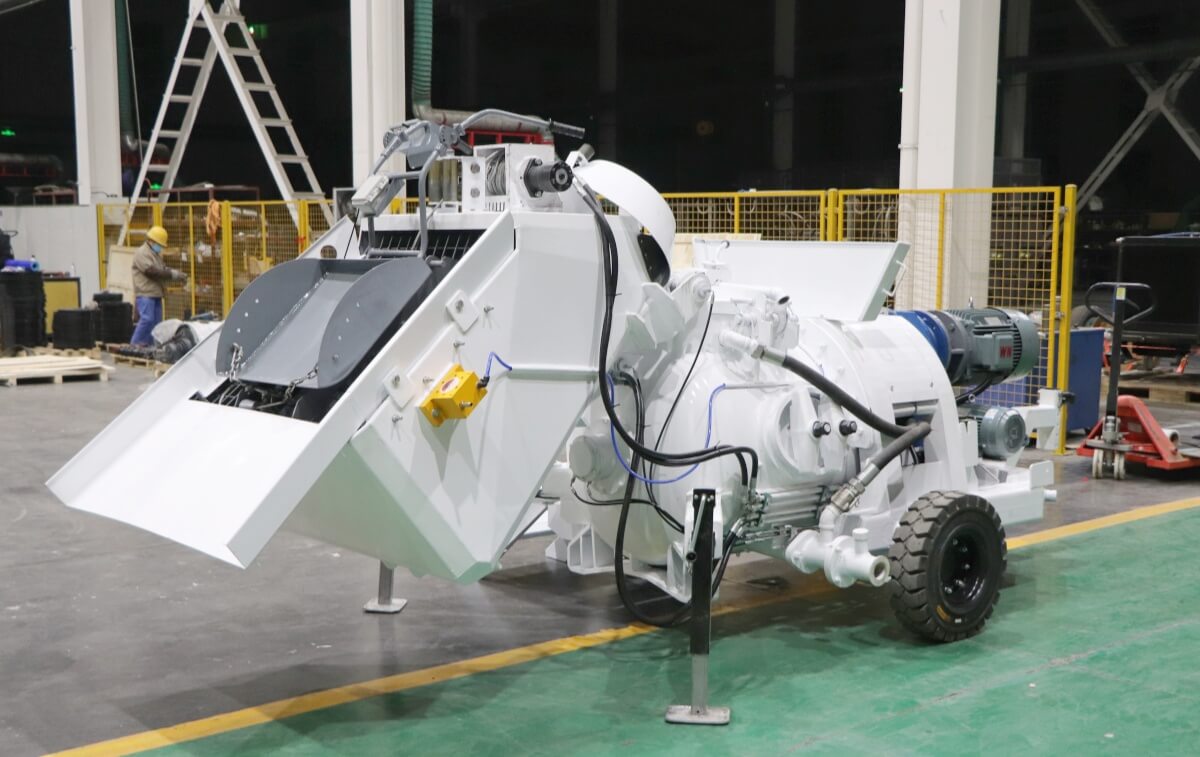

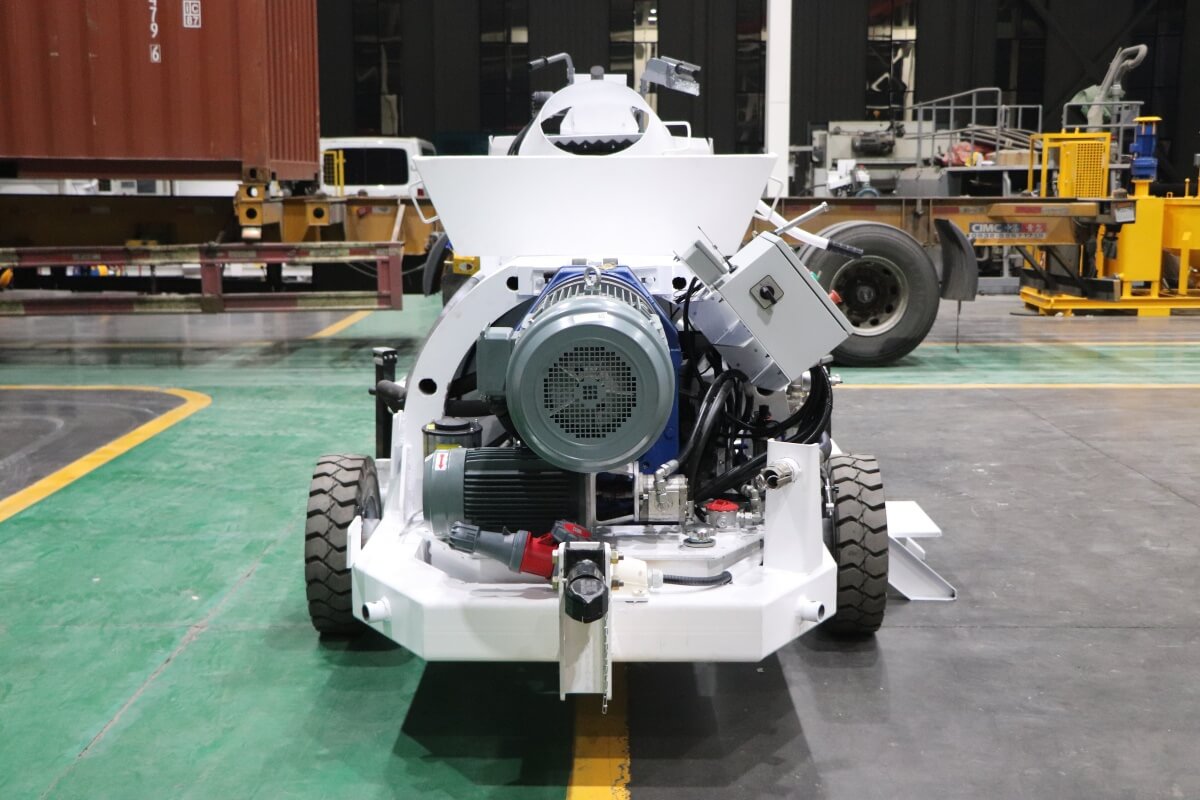

Electrical Floor Screed Machine


It is equipped with high-load solid tires and a mobile trailer structure, facilitating flexible movement and convenient transportation on construction sites. A replaceable wear-resistant lining plate is adopted to effectively extend the machine’s service life and reduce maintenance costs. The hydraulic-driven feeding device simplifies the loading process, making material feeding more effortless and time-saving.

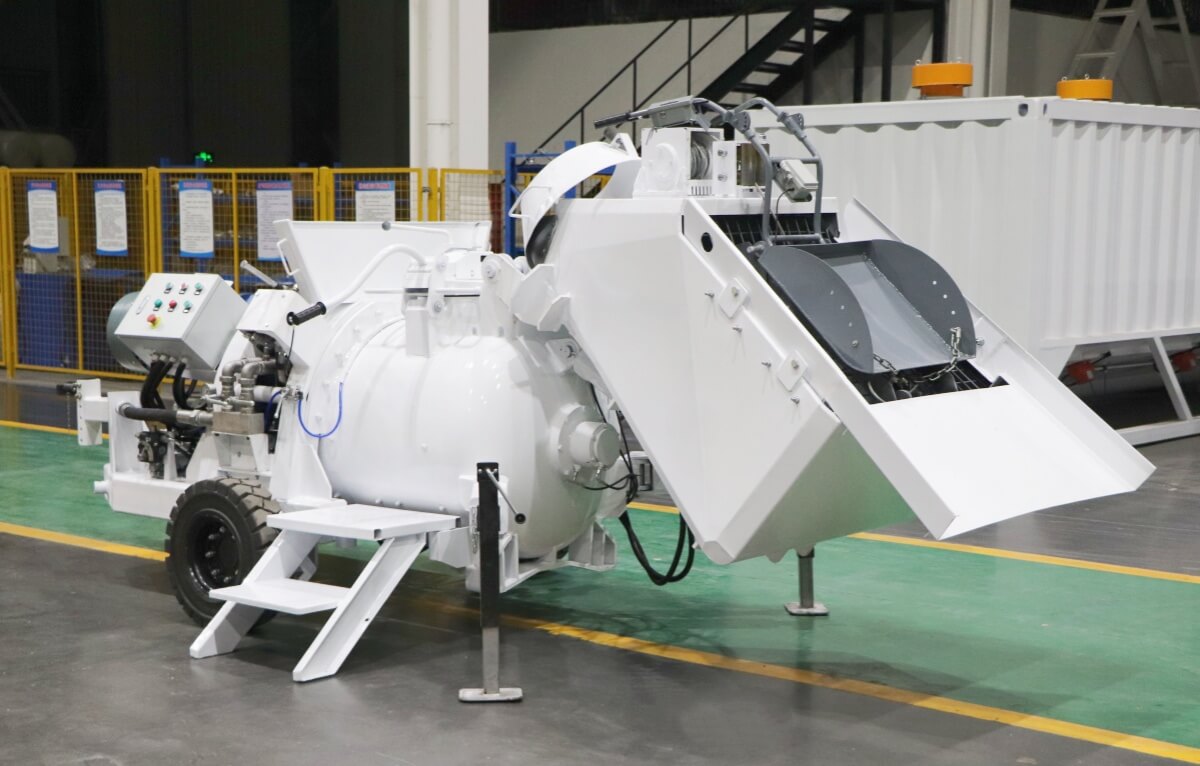

Electrical Floor Screed Pump


In addition, the machine is fitted with 4 wear-resistant mixing blades, which can significantly enhance the mixing efficiency and ensure the uniformity of mortar, screed and other construction materials. Moreover, its high-load adjustable jack support legs enable stable placement during operation, avoiding displacement and ensuring construction safety.

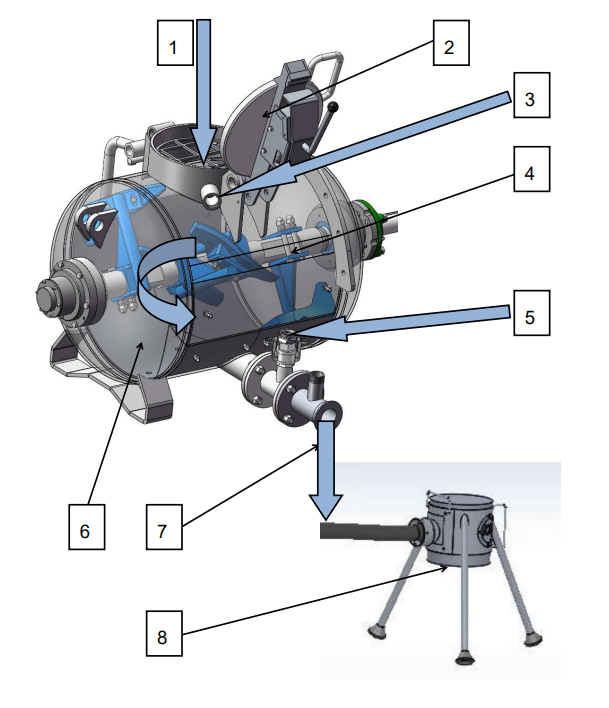

  Operating Principle:

Operating Principle


① Add material 1 to mixing tank 6.

② Put on the sealing cover 2 and press it down firmly.

③The materials are fully stirred in the mixing tank 6. Fully stir and push through mixing shaft 4.

④Compressed air with sufficient pressure enters the mixing tank 6 from the upper pipeline 3 and the lower pipeline 5, the material begins to be transported.

⑤The material is discharged from discharge port 7, passes through the conveying hose, reaches the discharge point, and is discharged at discharge port 8.

PUTZMEISTER Electric Screed Pump

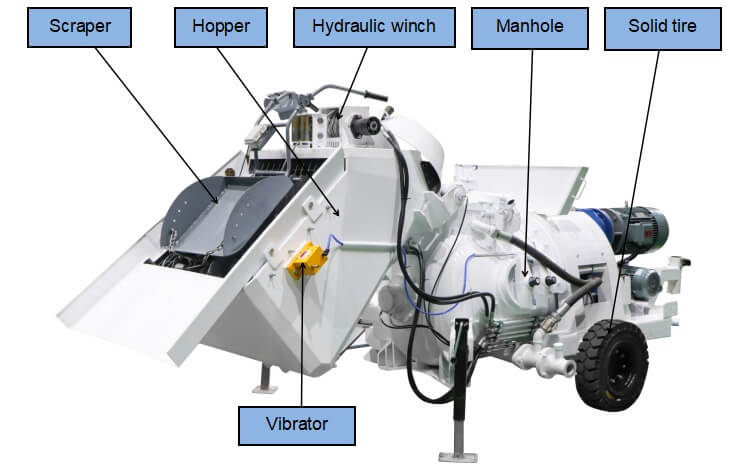

■Product Details

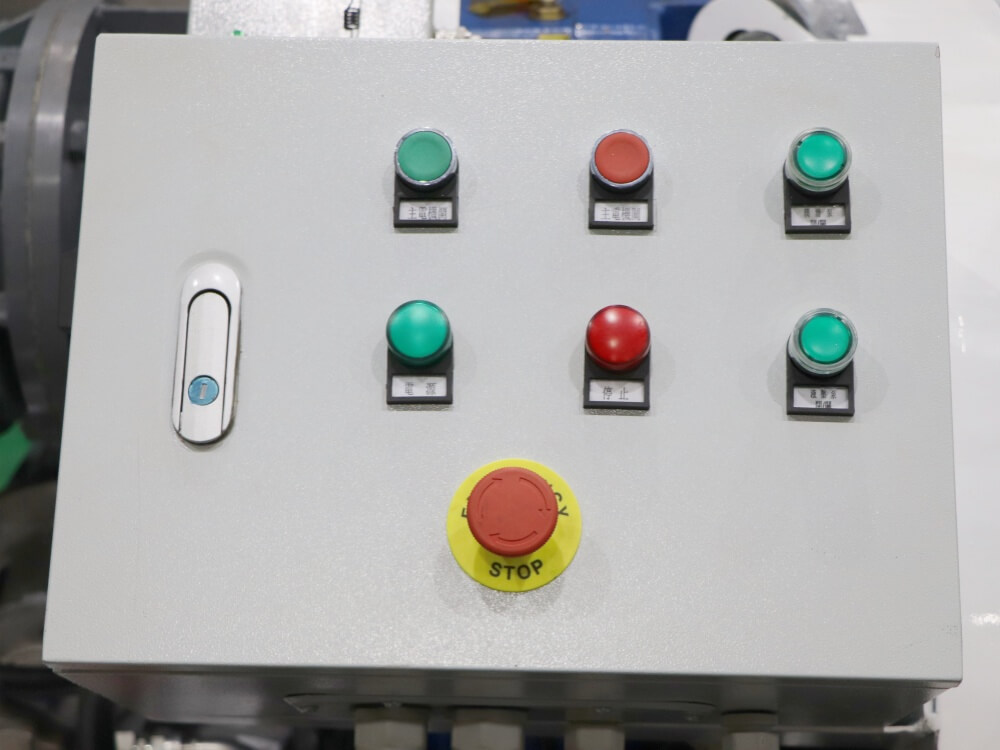

electrical control box

Electrical control box

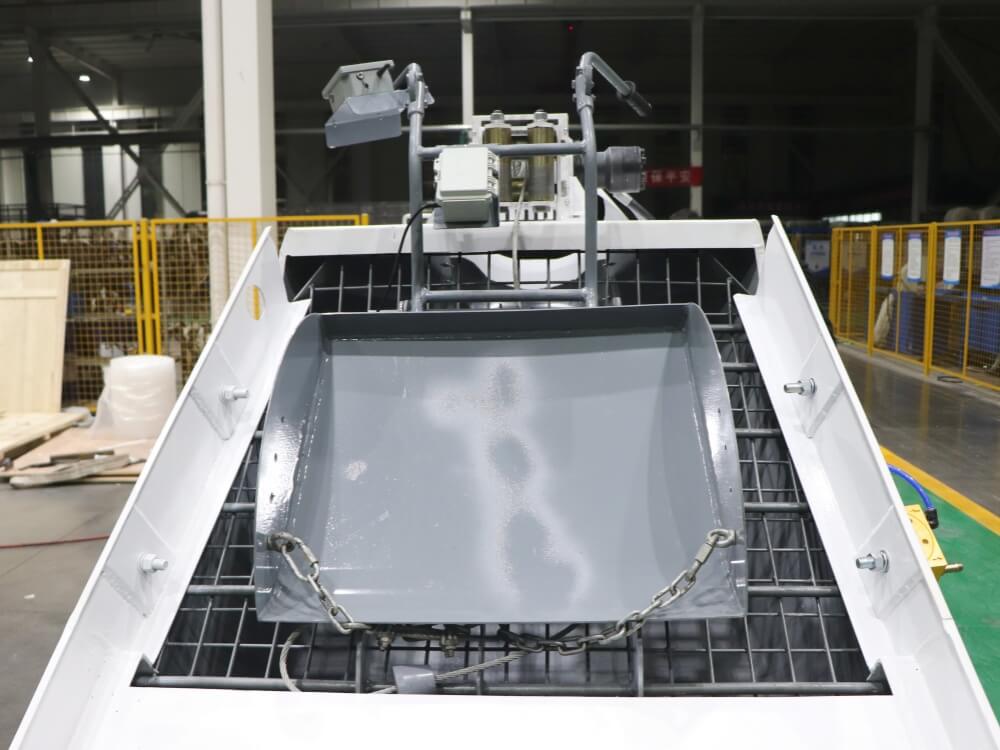

hopper and scraper

Hopper and scraper

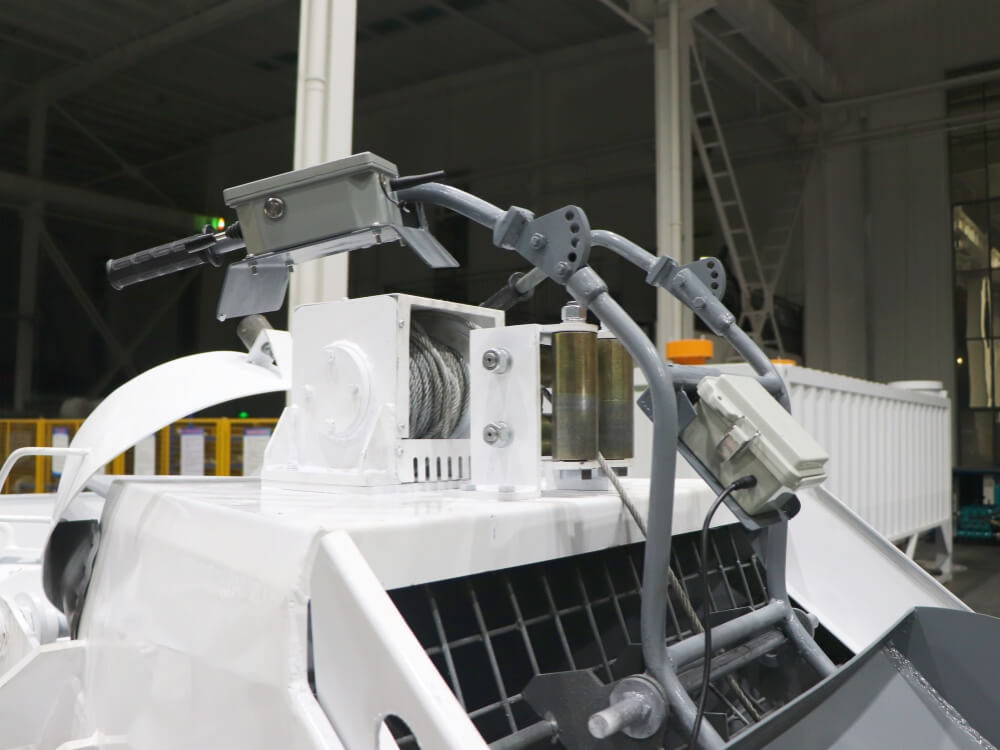

hydraulic winch

Hydraulic winch

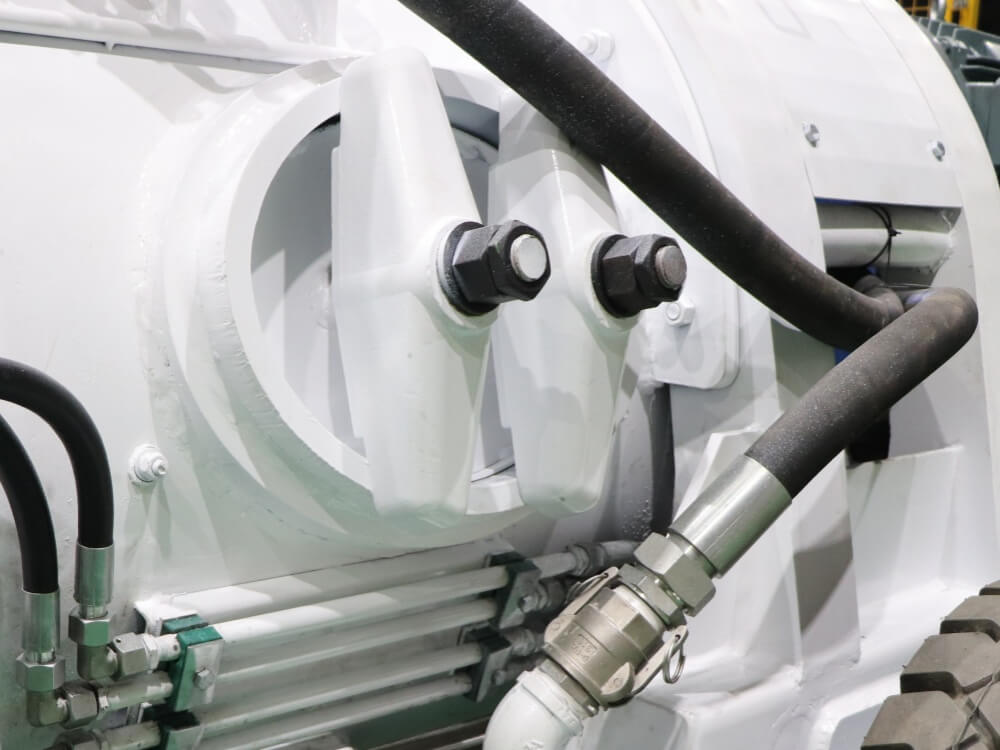

Manhole

Manhole

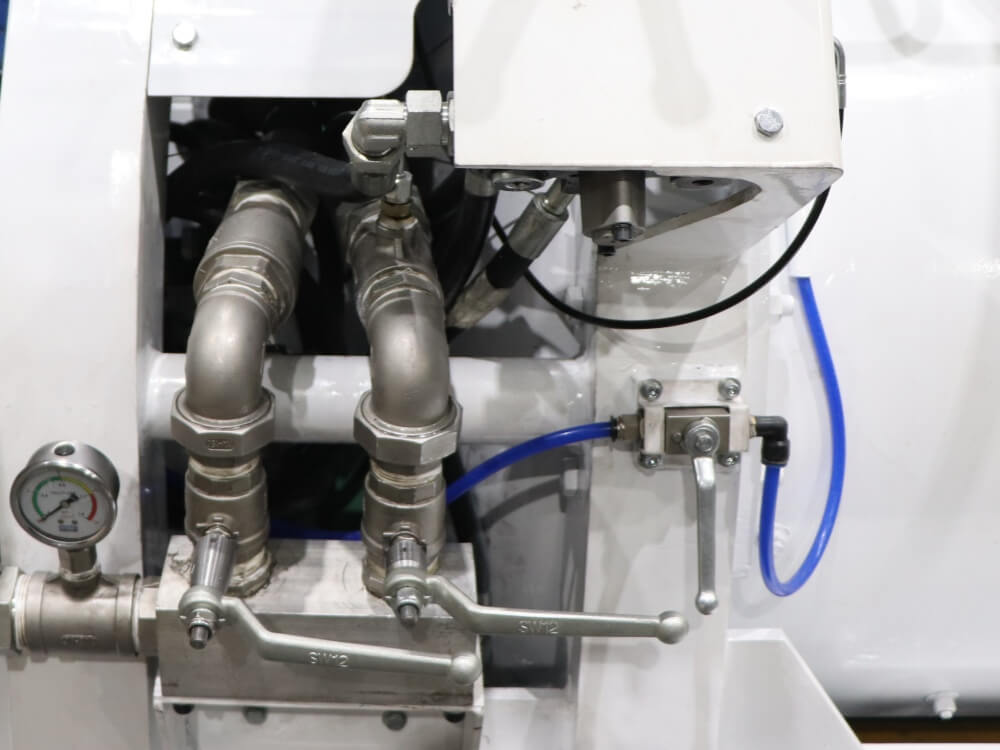

Operating handle

Operating handle

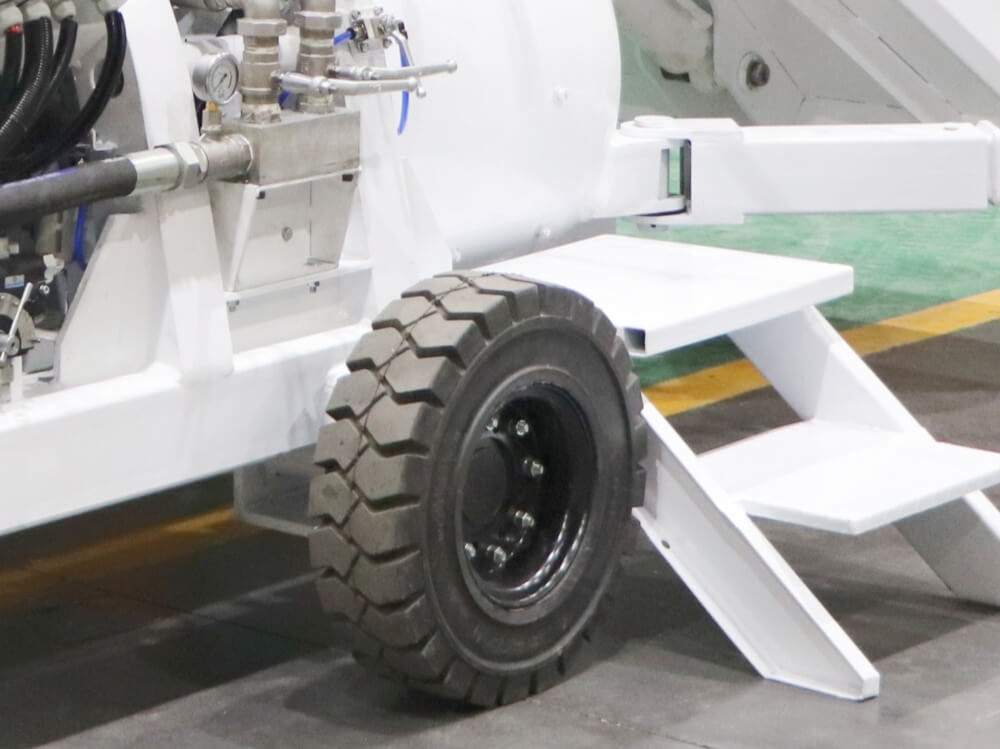

Solid tire

Solid tire

■Technical Parameters

Model

LPXT400-E Electric screed pump

Mixing Motor

22KW

Hydraulic Pump Motor

4KW

Operating Voltage

380V, 50HZ

Vessel Capacity

Gross 520L / Net 400L

Output Capacity

9m³/h

Operation Pressure

2bar~8bar

Air Consumption

4~8m3/min

Lubrication System

Central Automatic

Chassis Tow Connection

Ball Coupling

Dimension L×W×H

4840×1700×1650mm

Weight

2595kg
