LDS2000G Shotcrete Pump

  • Pump head:LH50-680
  • Output:6-8m3/h
  • Max. Aggregate:10mm
  • The Squeeze Hose:ID 50mm
  • Conveying Hose:Hose ID 50mm
  • Working Pressure:Working Pressure 1.5 Mpa (Chinese Hose)/3.5 Mpa (Trelleborg Hose)

  • small shotcrete pump
  • wet shotcrete pump
  • shotcrete pump manufacturers
  • shotcrete pump price
Grouting Plant
Grout Mixer and Agitator
Grout Pump
HydroSeeders
Refractory Gunite/Mixer
Shotcrete Machine
Industrial Peristaltic Pump
Foam Concrete Machine
Concrete Mixer
Concrete Pump
Plaster Machine
hydraulic pump station
Customized Service

Phone/Viber/Wechat

+86-18538591025

Whatsapp

+86-18538591025

Email

sales@leadcrete.com

skype:

machine.machine6

ADDRESS

Xisihuan Ring-Road East, Tielu, Xiliu Lake sub-district, Zhongyuan District, Zhengzhou, Henan China

■Introduction

 Description:

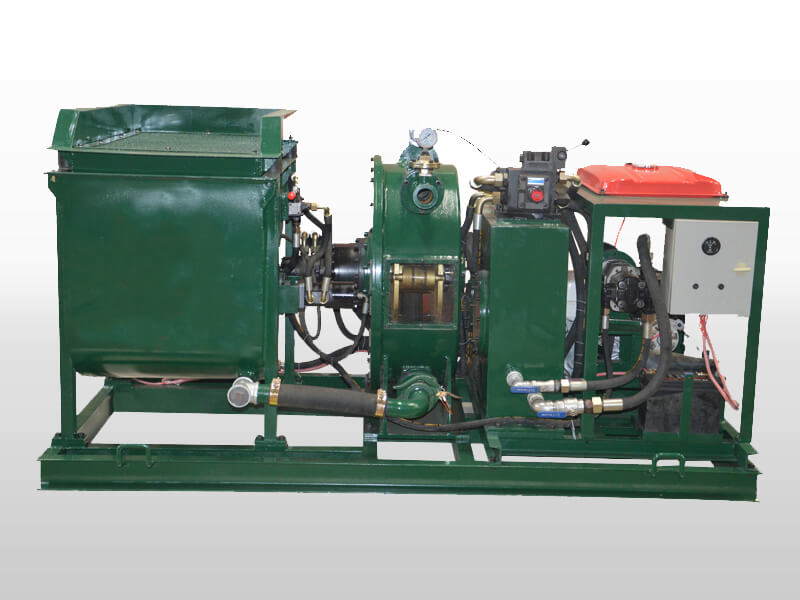

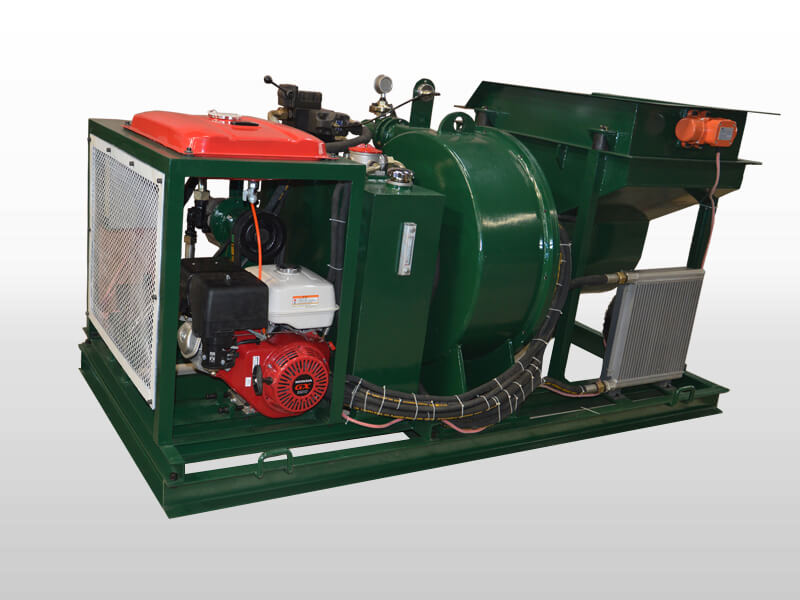

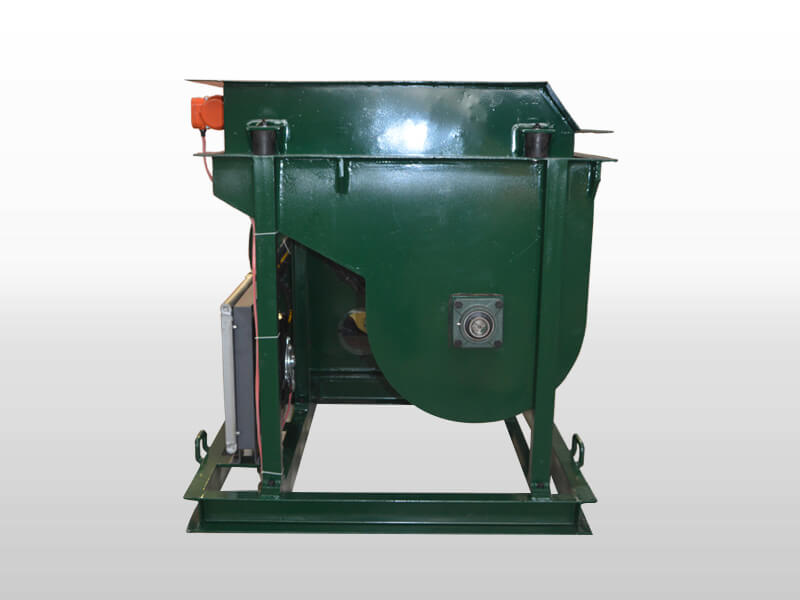

The LDS2000G is a lightweight shotcrete pump run by a highly-reliable direct drive planetary gearbox and hydraulic power pack. This sturdy workhorse is made better with the added improvement of a direct drive to the carousel. This pump could be used for dome- building, swimming pool etc. projects.

 Application:

1. For pumping/grouting/spraying mortar/plaster;
2. For pumping cellular light weight concrete;
3. For pumping of wet normal concrete, acceptable max. aggregate size is 10mm.


 Features:

1) Highly-reliable direct drive planetary gearbox;
2) Infinite speed variation;

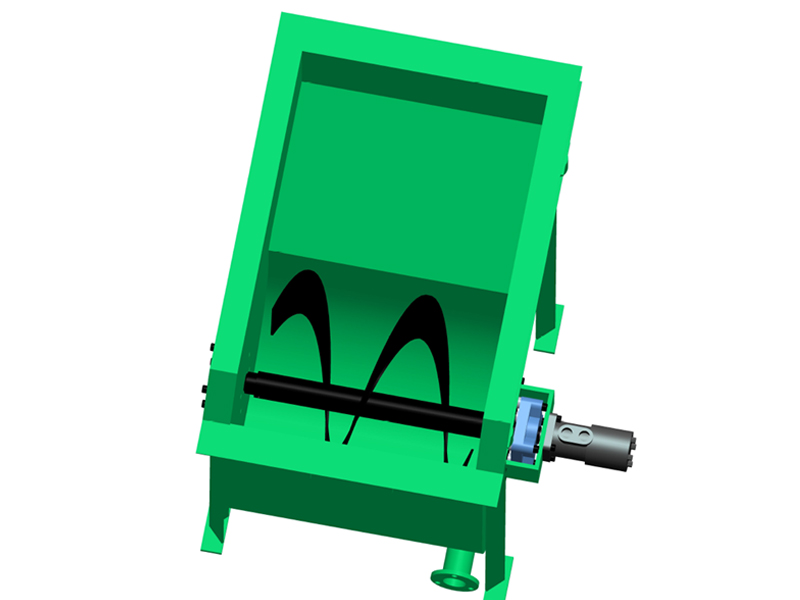

3) Specially hopper/ agitator stir design;
4) Honda GX390 and GX630 gasoline engine for option;
5) Easily operating on site work;
6) Standard spare part supply.



■Product Details
gunite machine

lightweight shotcrete pump

■Technical Parameters
LDS2000G Shotcrete Pump:

Hopper rated rev. 76r/min
Working Pressure 1.5 Mpa (Chinese Hose)/3.5 Mpa (Trelleborg Hose)
Output 6-8m3/h
Max. Aggregate 10mm
The Squeeze Hose ID 50mm
Conveying Hose ID 50mm
Pump head LH50-680
Horizontal Conveying Distance 40 m (Chinese Hose)/80 m (Trelleborg Hose)
Vertical Conveying Distance 15 m (Chinese Hose)/30 m (Trelleborg Hose)
Hopper volume: 240 Liter
Oil tank 130 Liter
Weight 900kg
Requested air compressor 6m3/min, 0.6Mpa Pressure
Overall Dimension 2350x1250x1450mm
Power  Honda GX390 Gasoline Engine (low pressure)
Honda GX630 Gasoline Engine(high pressure)

Note: the diesel engine or Electric motor is  for optional.
