LGP400/700/80DPL-D Grout mixer pump with diesel engine

  • Grout mixer pump model:Dimensions
  • LGP400/700/80DPL-D:2400*2150*1700mm
  • Weight:1820kg
  • Diesel engine power:27KW@1800rpm
  • Mixer capacity:400L
  • Agitator capacity:700L

  • diesel engine grout mixer pump
  • diesel engine grout unit
  • diesel grout mixing plant for sale
  • grout mixer plant with diesel engine
  • grout mixer pump with diesel engine
  • grout plant with diesel engine
Grouting Plant
Grout Mixer and Agitator
Grout Pump
HydroSeeders
Refractory Gunite/Mixer
Shotcrete Machine
Industrial Peristaltic Pump
Foam Concrete Machine
Concrete Mixer
Concrete Pump
Plaster Machine
hydraulic pump station
Customized Service

TEL

86-371-63902781

skype:

machine.machine6

Email

sales@leadcrete.com

FAX

86-371-63526676

ADDRESS

Xisihuan Ring-Road East, Tielu, Xiliu Lake sub-district, Zhongyuan District, Zhengzhou, Henan China

■Introduction
  Description:

LGP400/700/80DPL-D grout mixer pump with diesel engine is used for mixing and pumping bentonite
cement slurry, it could result in a continuous mixing and grouting projects, such as mining,
hydropower, construction, highway, railway, and other underground and ground construction projects.

LGP40070080DPL-D

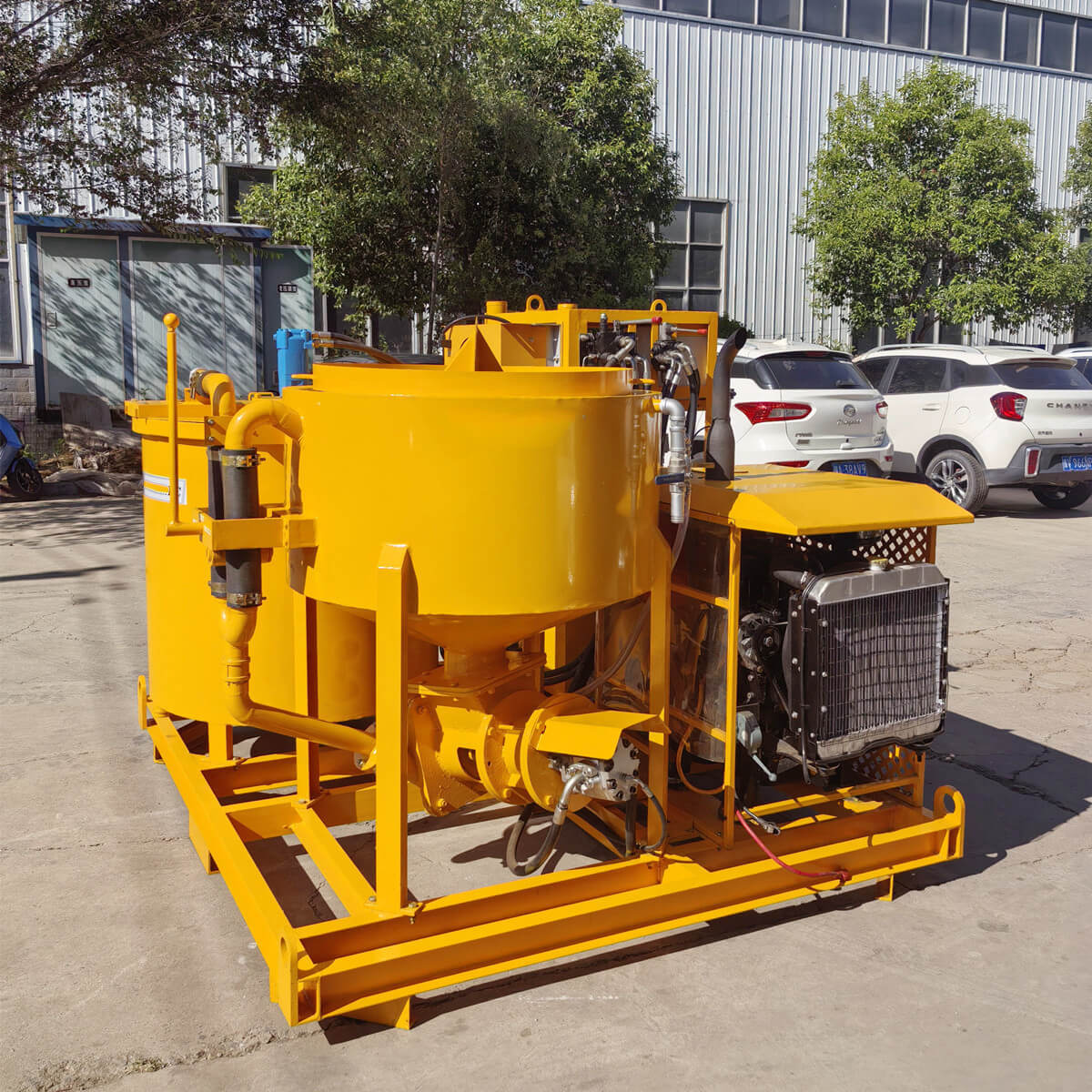

Hydraulic drive diesel engine grout mixer pump is a combination of high-speed vortex mixer, agitator,
and double plunger pump p in one base frame. Grouting pressure and displacement are adjustable.


grout pump plant with diesel engine


A high-speed vortex mixer ensures fast and uniform mixing. Water, cement, or bentonite are quickly
mixed into a uniform slurry. The mixed slurry is then conveyed to the agitator. The grouting pump
injects water from the mixing drum (storage tank). This ensures continuous mixing and grouting
operations. More importantly, the double plunger pump is used together with the pressure
maintaining system to automatically stop the pump and maintain a very small pressure pulse
(1-4bar, 50bar grouting pressure) to ensure that the grouting hole is fully filled. This is necessary
for the grouting projects.

 diesel engine grout plant system


Leadcrete equipment is a Chinese company with 20 years of manufacturing experience. We have our
own technical team and research and development ability. If you are interested in our grouting pump
station, please contact us directly at email: sales@leadcrete.com.


 Application:

LGP400/700/80DPL-D grout pump plant with diesel engine application range:

grout plant application pictures


1. Mining - tunnel lining, contact grouting, shaft waterproofing;

2. Geotechnical engineering - deep well casing, monitoring well, well sealing and well abandonment;

3. Construction - lower sealing layer, top plate and lifting plate;

4. Civil engineering - dam foundation, tunnel, mining, soil nailing, tie back, ground anchor, cable
and rock anchor;

5. Ocean - underwater foundation, pier, crusher, shoreline foundation;

6. Utilities - shell, waterproof, slope line grouting;

7. Structure - building and bridge repair, foundation stability, foundation lifting, soil compaction
grouting, earth rock grouting.


 Features:

1. Low flow pressure surge system

2. Grout mixer plant with diesel engine is with Vertical type double plunger pump  with compact size

3. Hydraulic drive (safely releasing pressure when pumping block)  diesel engine grout mixer pump

4. Grout mixer pump with a diesel engine has high-speed colloidal grout mixer

5. Hydraulic system with high-temperature warning and protection system

6. Pressure holding system

7. Up to 5mm particle size

8. Air cooler and water cooler (suitable for working in tropical and sub-hot areas)

grout pump plant with diesel engine details



grout mixer plant with diesel engine details



diesel engine grout mixer pump details


grout mixer pump with diesel engine details

■Product Details
Plunger pump

Plunger pump

Multi-way valve

Multi-way valve

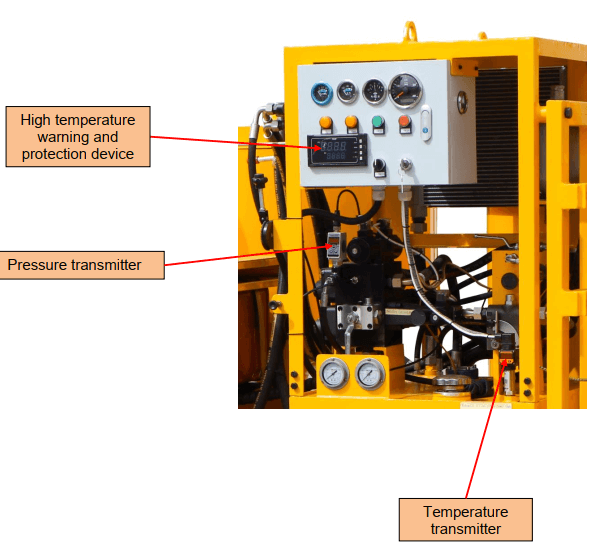

High temperature warning and protection device

High temperature warning and protection device

electric control box of electric grout mixer

Electric control box of grout plant

electric control box details

Electric control box details

diesel grout plant details

Diesel grout plant details

■Technical Parameters

Technical Data:


Description Data
Grout mixer pump with diesel engine model GGP400/700/80DPL-D
Dimensions 2400*2150*1700mm
Weight 1820kg
Diesel Engine
 Power 27KW@1800rpm
Mixer
Capacity 400L
Recycling discharge  1100L/min
Suitable water/cement ratio ≥0.5:1
Agitator
Capacity 700L
Rated Rev 36rpm
Pump(vertical compact hydraulic grout pump)
Output/pressure 80L/min@5Mpa
 Diameter 85mm
 Stroke 220mm
Cycles 38 times/min
We could also customize diesel engine grout mixer pump according to your demands.
