LSC500H Scraper Conveyor

  • Model: LSC500H
  • Output: 10~60m3/h
  • Chain speed: 0-0.7m/s
  • Max.tilt angle: 25°
  • Slot width: 500mm
  • Slot height: 340mm

  • Scraper Conveyor for Sale
  • heavy duty scraper conveyor
  • hydraulic heavy duty scraper conveyor
  • hydraulic motor scraper conveyor
  • hydraulic scraper conveyor
  • heavy duty hydraulic scraper conveyor
Shotcrete Machine
Refractory Gunite/Mixer
Concrete Pump
Grouting Plant
Grout Mixer and Agitator
Grout Pump
Industrial Peristaltic Pump
Plaster Machine
Soil Spraying Machine
Foam Concrete Machine
hydraulic pump station
Customized Service

TEL

86-371-63902781

skype:

machine.machine6

Email

sales@leadcrete.com

FAX

86-371-63526676

ADDRESS

Xisihuan Ring-Road East, Tielu, Xiliu Lake sub-district, Zhongyuan District, Zhengzhou, Henan China

■Introduction

 Description:
LSC500H is a heavy duty scraper conveyor driven by hydraulic motor. We our specially design it to
follow our years experiences, it is for bulk material conveying equipment. It is suitable for the
transportation of broken materials, ores, slag, stone, slag and other granular and small blocks. It is widely
used in mining, construction, tunnel building, underground engineering, water conservancy and
hydropower engineering.


 Application:

It is suitable for the transportation of broken materials, ores, slag, stone, slag and other granular and
small blocks. It is widely used in mining, construction, tunnel building, underground engineering, water
conservancy and hydropower engineering.


 Features:

Ø  With solid structure, to withstand the shocking, impacting, pounding of the stone, soil, coal, muck, etc.

Ø  With compact size, to be installed in a small room.

Ø  To be conveyed with large tilt angle.

Ø  To insert the conveyor into the material, this equipment can work without the loader.

Ø  Reverse run.

■Product Details

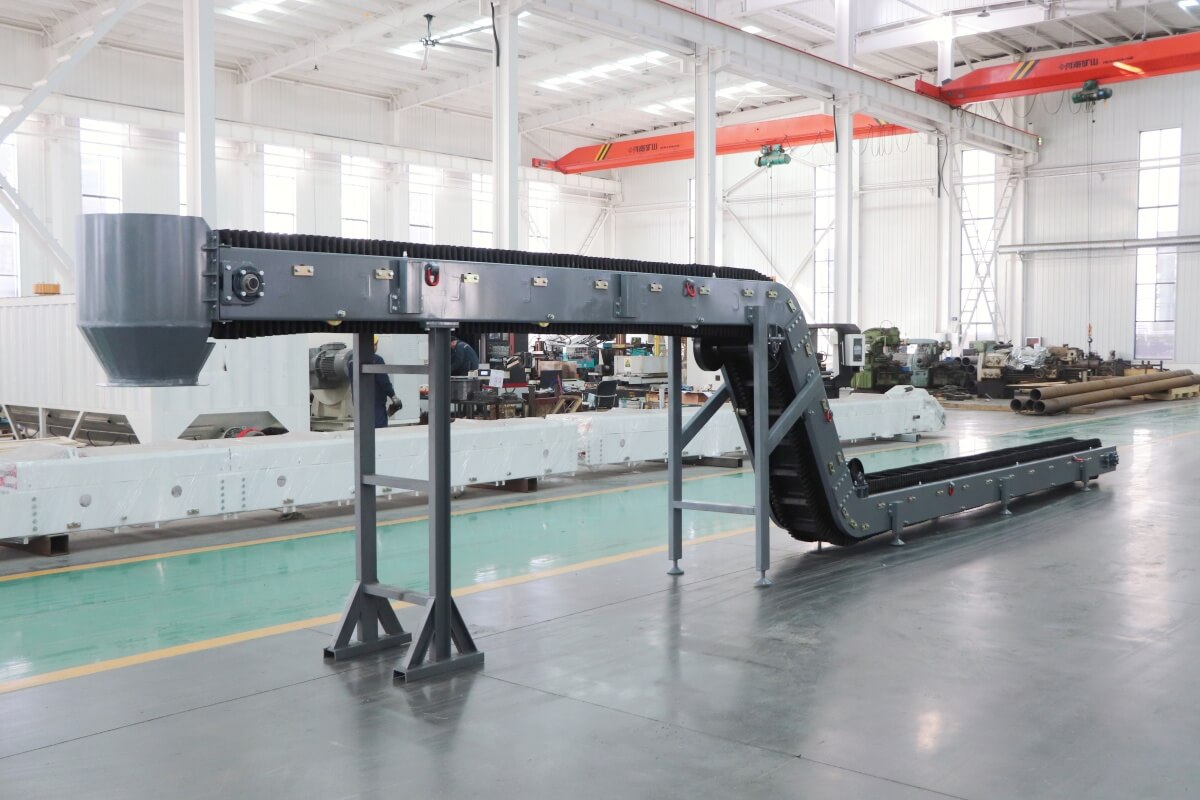

Scraper Conveyor in Our Factory

Scraper conveyor in our factory

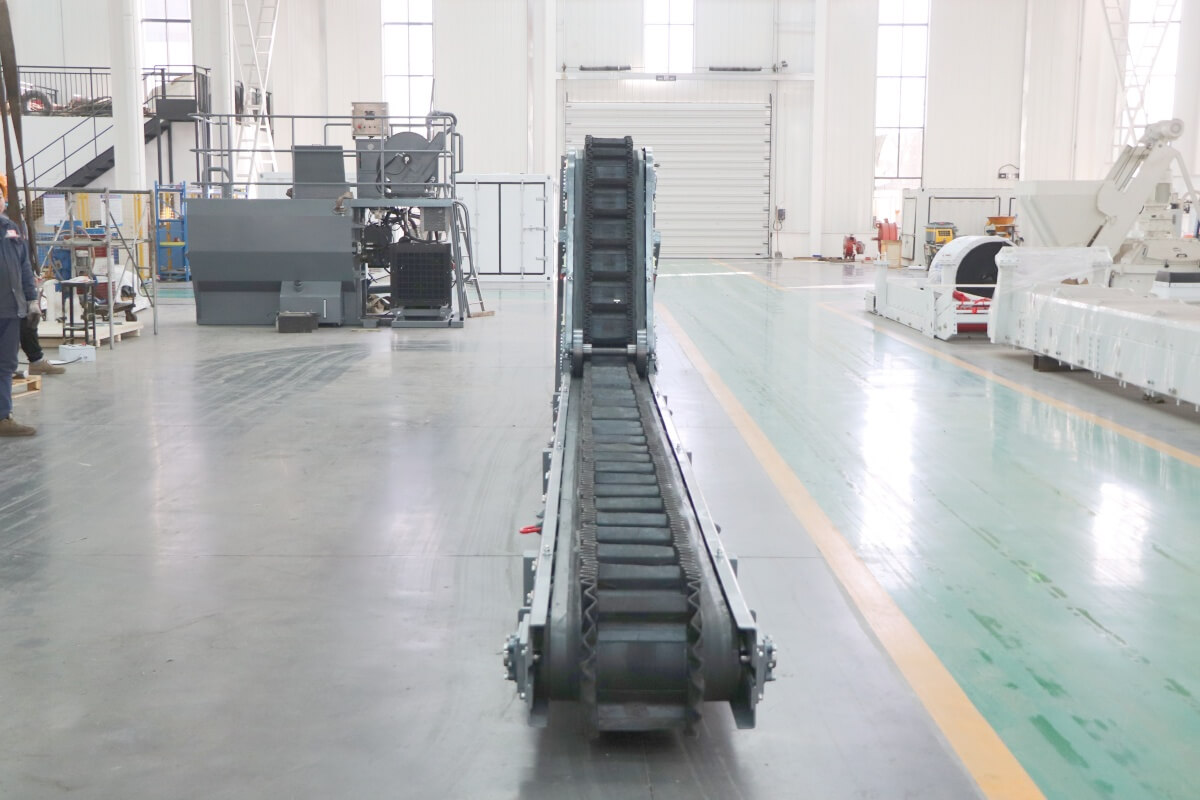

Scraper Conveyor for Sale

Scraper conveyor for sale

Scraper conveyor application

Scraper conveyor application

Scraper Conveyor

Scraper conveyor

Low noise with full loading

Low noise with full loading

To protect the pins of the chain

To protect the pins of the chain

■Technical Parameters

Technical Data:


Model LSC500H
Output 10~60m3/h
Chain speed 0-0.7m/s
Max.tilt angle 25°
Slot width 500mm
Slot height 340mm
Scraper type T
Scraper space 266mm
Hydraulic powerpack for motor 80L/min,10MPa
Weight 960KG
We reserve the right to change technical specifications without prior notice.
