■Introduction

► Description:

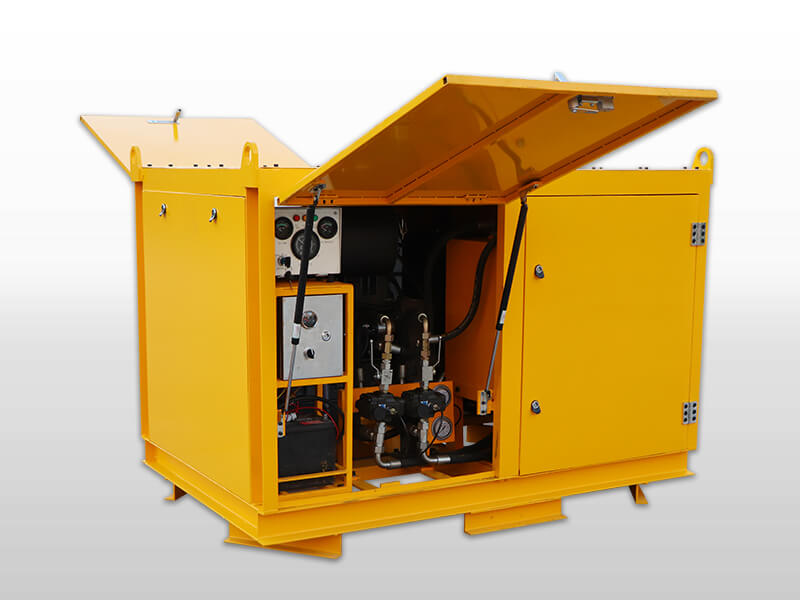

LBHPP15/55X2-30D diesel hydraulic power unit is an all hydraulic pumping station driven by diesel
engine. It is equipped with cooling system, filtration system, pressure regulating system, pressure
and temperature indication and valve control. The product is compact, easy to operate and does
not take up space.

► Application:

LBHPP15/55X2-30D diesel hydraulic power unit is mainly used for pumping and grouting of mud
and other mud mixtures to provide power.

► Features:

1. Compact size, simple structure, easy to operate and maintain;

2. Few spare parts and low maintenance cost;

3. The motor has overload protection function. The hydraulic system has oil temperature overheat
protection;

4. Diesel engine driven, suitable for construction site where power supply cannot be met. The motor
has an overload protection function. Hydraulic system with oil temperature overheating protection.

■Product Details

NORINAI F3L912 diesel engine

Instruments panel

High pressure ball valve and flood valve

■Technical Parameters

► Technical Data:

Description	Parameter
Type	LBHPP15/55X2-30D
Pump displacement	32ml/r
Export discharge	0-57.6L/min
Hydraulic system pressure	15MPa
Outlet pressure	15MPa
Diesel power	29KW
Dimensions	1760X1150X1300mm
Weight	960kg
