■Introduction

► Description:

LGH series hydraulic drive grouting pump is a universal high-pressure grouting pump. Our high pressure grouting pump is ideal for grouting-process in underground and civil applications.
Leadcrete Equipment is a professional high pressure grouting pump manufacturer and supplier, our engeers have strong ability for designing and manufacturing the high pressure grouting pump acorrding your requirement.

► Application:

LGH Series high pressure grouting pump is used for grouting in soil nails, foundation stabilization, tunnel lining, dam foundation, cable and rock bolts, earth anchors, slope line grouting and void fillings etc.

► Features:

♦ Single piston with double-acting.
♦ LGH series high pressure grouting pump is hydraulic drive.
♦ Compact structure.
♦ Ball valve.

■Product Details

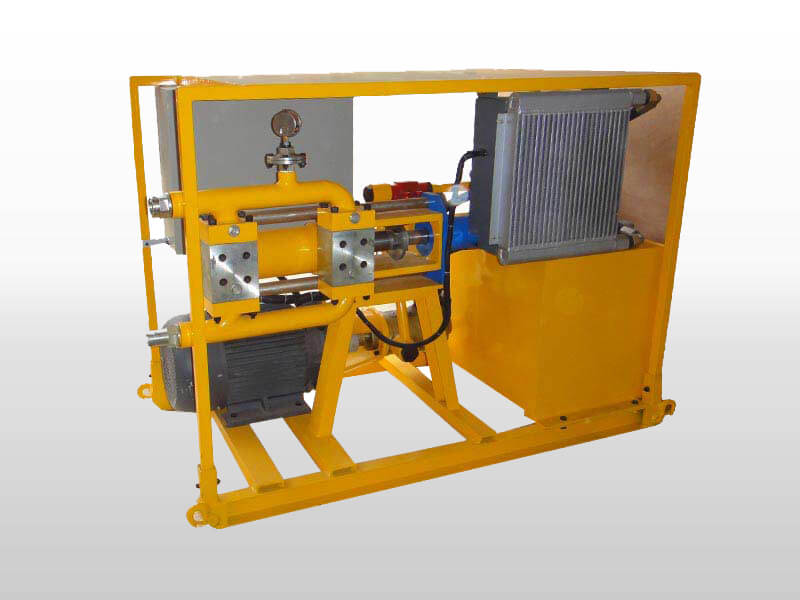

High Pressure Grouting Pump

LGH70 High Pressure Grouting Pump

LGH90 High Pressure Grouting Pump

Grouting Pump Details

High Pressure Grouting Pump Details

Grout pump spare part

■Technical Parameters

Item	LGH70 high pressure grouting pump	LGH90 hydraulic drive grouting pump
Rated Output	0-70 L/Min	0-100 L/Min
Rated Pressure	10MPa(1450PSI)	10MPa(1450PSI)
Cylinder Dia.	110mm	110mm
Stroke/Minute	31	45
Inlet Dia.	38mm	38mm
Outlet Dia.	32mm	32mm
Power Unit	7.5kW	11kW
Transmission	Hydraulic drive	Hydraulic drive
Chassis	Skid	Skid
Weight	450Kg	580Kg
Overall Dimension	1505x770x1110mm	1505x770x1110mm
Note: Single or Double Passageway are optional; Chassis: Skid or Tyre
