LH32-330B explosion proof peristaltic squeeze hose pump

  • Model:LH32-330B
  • Output:2m3/h
  • Rated pressure:0.5Mpa
  • Rotation:60rpm
  • Squeeze hose ID:32mm
  • Squeeze hose material:NR

  • peristaltic pump for sale
  • hose pump for sale
  • explosion proof squeeze pump
  • explosion proof peristaltic pumps
  • explosion proof hose pump
Grouting Plant
Grout Mixer and Agitator
Grout Pump
HydroSeeders
Refractory Gunite/Mixer
Shotcrete Machine
Industrial Peristaltic Pump
Foam Concrete Machine
Concrete Mixer
Concrete Pump
Plaster Machine
hydraulic pump station
Customized Service

Phone/Wechat

+86-18538591025

Whatsapp

+86-18538591025

Email

sales@leadcrete.com

skype:

machine.machine6

ADDRESS

Xisihuan Ring-Road East, Tielu, Xiliu Lake sub-district, Zhongyuan District, Zhengzhou, Henan China

■Introduction
 Description:
LH32-330B industrial peristaltic hose pump (squeeze pump) consists mainly of pump house, rotor, roller, idle roller, squeeze tube and driving unit. The squeeze hose is U-shape in pump house, when rotor drives roller to rotate, hose is deformed. After the roller rotate, the deformed hose recover by its elasticity. Thus the negative pressure in this hose is generated, sucking slurry, and discharging through outlet under roller’s push, finally forms pressure conveying of slurry.


 Application:
This LH32-330B explosion proof peristaltic squeeze hose pump is designed for aggressive medium used in chemical manufacturing as per customers’ project. As per their need, explosion proof electric
motor, control and frequency converter are added.


 Features:

       ♦ No seals
♦ No valves
♦ Self -priming
♦ Only tube to replace
♦ Dry –running without damage
♦ Reversible
♦ No contact between product and mechanical parts
♦ Able to pump products with solid parts inside
♦ Easy maintenance, low-cost, short down time

■Product Details

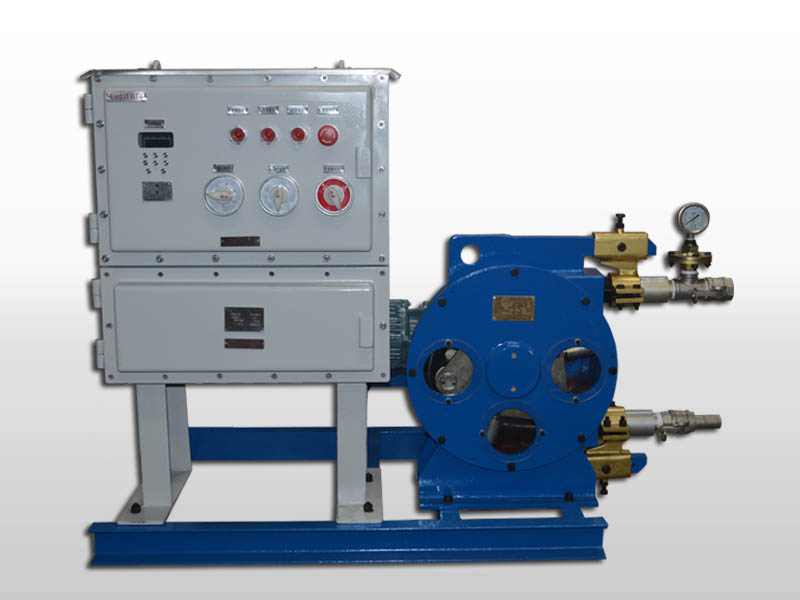

explosion proof peristaltic squeeze hose pump

LH32-330B explosion proof peristaltic squeeze hose pump

explosion proof hose pump

LH32-330B explosion proof peristaltic squeeze hose pump

squeeze hose pump

LH32-330B explosion proof peristaltic squeeze hose pump

■Technical Parameters
Model LH32-330B squeeze hose pump
Output 2m3/h
Rated pressure 0.5Mpa
Rotation 60rpm
Squeeze hose ID 32mm
Squeeze hose material NR
Electric motor 1.5kw
Electric voltage 3 phase 380v 50hz
