100kg small capacity refractory pan mixer for sale

2021-12-31 14:08:14

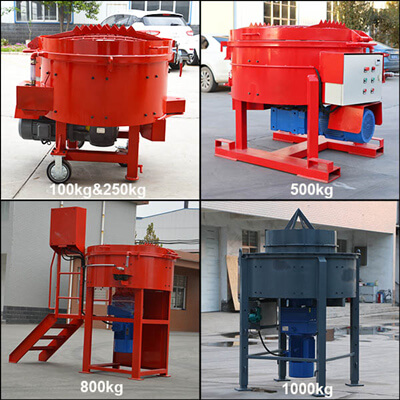

We have all kinds of refractory pan mixer with different mixing capacity to choose. Their mixing capacity respectively is 100kg, 250kg, 300Kg, 500kg, 800kg and 1000kg, etc. If the customer has other requirements for the mixing capacity or the appearance of the machine, we can also provide customized services.

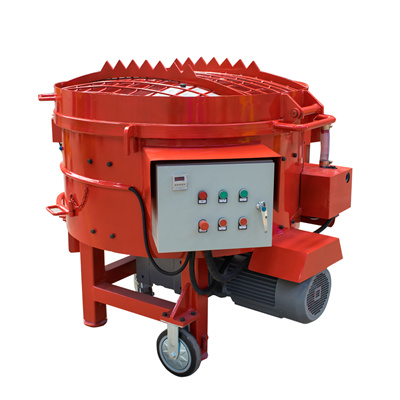

100kg small capacity refractory pan mixer

We named 100kg small capacity refractory pan mixer as LRM100. It is used for mixing refractory materials, friction materials, chemical materials, precast concrete, mortar, aggregate mixing and glass materials etc.

100kg capacity refractory pan mixer adopts a novel rotor structure, the minimum gap between the rotor and the shell can be adjusted close to zero, which can effectively reduce the residual material. The boiler plate is lined with polypropylene or stainless steel, so it is not easy to stick to the material. All the working bodies of the LRM series refractory pan mixer are fixed on the frame. The frame is welded with high-quality carbon steel.
LRM100 small capacity refractory pan mixer weighs up to 550Kg, dimensions is 1.4*1.3*1.1m. Its mixing capacity is 100Kg, and its motor power is 4Kw.
Besides, we also have LRM250 and LRM500 small capacity refractory pan mixers for sale.

100kg capacity refractory pan mixer

1. Refractory pan mixer is fast mixing speed and homogenous;
2. Comfortable feeding height;
3. It equipped with water spray nozzles;
4. This refractory mixer is special designed for site operation;
5. Compact structure;
6. Easy to move;
7. With bag breaker;
8. Refractory pan mixer is low maintenance cost.

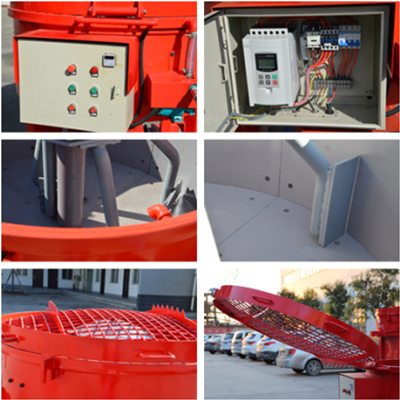

Safety feature:
If the top lid door is opened in between the operation, machine can stop automatically. Because
there is a relay between the top lid door and the hopper, once the top lid is opened, the power will cut off automatically and confirm the safety for operator.

small capacity refractory pan mixer

Maintenance note:
1. When replacing the scraper, be sure to cut off the power supply and hang up a sign prohibiting starting. It is best if someone guards the power supply.
2. The staff should regularly change the oil for the machine and add grease to the motor bearings. To extend the service life of the machine.

Small capacity refractory pan mixer operation instructions:
1. Preparations before starting: check whether there are sundries in the disk, check whether the bolts in each part are loose or missing, check whether the scraper is loose, whether the angle is correct, and whether the power wire is leaking.
2. Startup: Clear all the materials in the disk to ensure that it restarts after emptying. Turn on the power and start the machine, listen for abnormal sounds, and add materials according to the regulations.
3. Shutdown: Stop the machine after the materials in the pan are finished, and clean the remaining materials in the pan.

Contact us for refractory pan mixer details:
If you are interested in our small capacity refractory pan mixer, please help us confirm the following questions:
1. What is mixing materials with our machine, for mixing refractory, castable or others?
2. What is the mixer capacity you need, 100kg/batch, 250kg/batch, 500kg/batch, 800kg/batch, 1000kg/batch or others?
3. What is the voltage you need, here is 380V, 50HZ, 3 phase, is it OK for you?

We could customize according to your requirements, just tell us the application of the product or the parameter information you need.
