Dry spraying refractory gunite machine applied in steel plant

2021-09-15 17:58:01

Dry spraying refractory gunite machine applied in steel plant

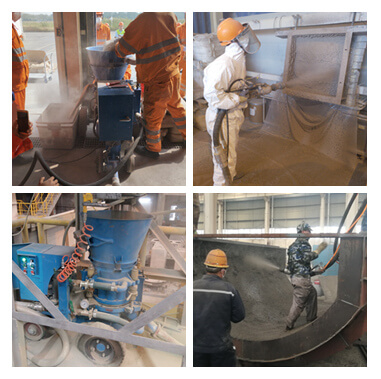

Dry spraying refractory gunite machine is specially designed for spraying refractory materials, castable in refractory repair installing project. Such as: steel plant, aluminum furnace linings, industrial furnace repair, heat treating furnaces, reheat furnaces, rotary kiln linings, tunnel and shuttle kiln, dryer and combustion chambers, refractory boiler settings, incinerator rebuilds, stack and duct linings, ladle and crucible linings.

Dry spraying refractory gunite machine applied in steel plant

We are a manufacturer of dry spraying refractory gunite machine. We have developed LZ series dry spraying refractory gunite machine applied in steel plant, output from 1m3/h to 9m3/h, electric engine and air motor can be customized according to your requirements.

Dry spraying refractory gunite machine applied in steel plant


Compared with common dry mix shotcrete machine, our LZ-3ER and LZ-5ER dry spraying refractory gunite machine applied in steel plant equipped with ABB frequency converter and high pressure water pump. ABB frequency converter is used for achieving variable output. The high pressure water pump provides pressure to the nozzle to ensure that the material and water are evenly mixed.

Dry spraying refractory gunite machine applied in steel plant

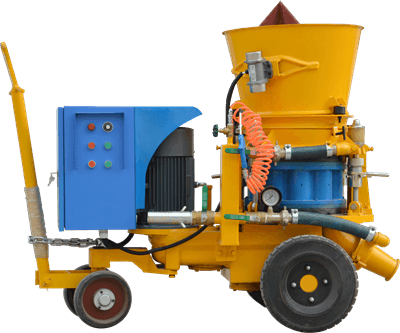

LZ-3ER and LZ-5ER dry spraying refractory gunite machine applied in steel plant is driven by electric engine. It is specifically designed for dry spraying refractory.

Technical and data:
Rated output: 3m3/h
Max horizontal conveying distance: 100m
Operating air pressure: 2-4bar
Electric motor: 4Kw
Voltage: 3phase, 380V, 50Hz

Dry spraying refractory gunite machine applied in steel plant

Rated output: 5m3/h
Max horizontal conveying distance: 100m
Operating air pressure: 2-4bar
Electric motor: 5.5Kw
Voltage: 3phase, 380V, 50Hz

Dry spraying refractory gunite machine applied in steel plant


Common features of LZ-3ER and LZ-5ER dry spraying refractory gunite machine:
1. Both LZ-3ER and LZ-5ER dry spraying refractory gunite machine applied in steel plant are straight chamber rotor type refractory gunning machine;
2. Bag cutter and flat hopper with vibrator;
3. Heavy-duty solid wheels;
4. Blast rubber hose;
5. Light weight nozzle;
6. Collect dust bag;
7. Clean dust gun.

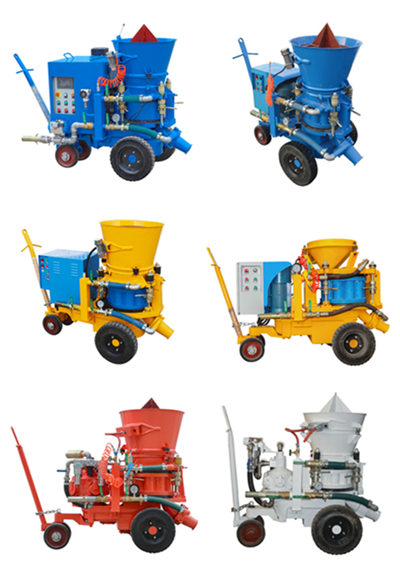

In addition, we have other types dry spraying refractory gunite machine for sale.
LZ-3AR dry spraying refractory gunite machine is driven by air motor, its operating air pressure is 2-4bar, and the rated output is 1-3m3/h. Its engine power is 4Kw.

Dry spraying refractory gunite machine applied in steel plant

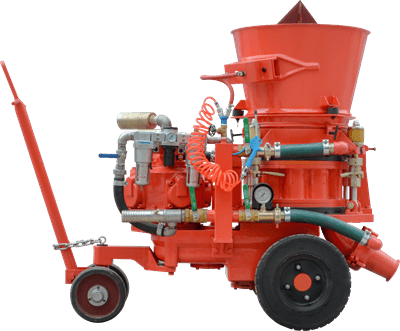

LZ-5AR dry spraying refractory gunite machine is also driven by air motor, its operating air pressure is 2-4bar, and the rated output is 1-5m3/h. Its engine power is 5.5Kw.

Dry spraying refractory gunite machine applied in steel plant

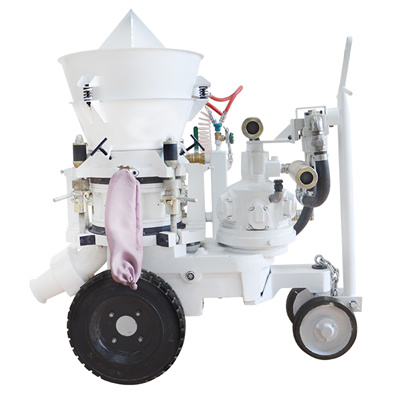

LZ-3ER/S dry spraying refractory gunite machine is an upgraded version of our company’s hot-selling LZ-3ER fire-resistant material spray machine. The newly designed LZ-3ER/S dry spraying refractory gunite machine effectively reduces dust and greatly improves the spraying effect. Its rotor body hole and rigid liner are changed from round hole to fan-shaped hole, which increases the blanking volume and reduces the friction area; under the same output, the speed and power can be effectively reduced, thereby the service life of the dry spraying refractory gunite machine is extended.

Dry spraying refractory gunite machine applied in steel plant

Dry spraying refractory gunite machine applied in steel plant

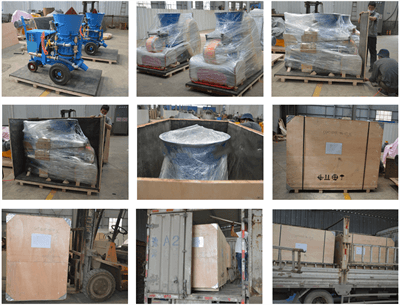

Packaging and shipping:
1. Packed in wooden case.
2. Plywood box.
3. According to customers' requirements.

Dry spraying refractory gunite machine applied in steel plant


Before we send quotation, please let me know the following question:
1. What's the project you will use the machine do?
2. What is the output do you need, 3m3/h, 5m3/h, 7m3/h, 9m3/h?
3. Drive type mode? Do you want electric or air motor?
4. Do you have any other special requirments for this machine?
