Grout mixer machine for consolidation grouting in dams

2021-09-14 17:21:51

Grout mixer machine for consolidation grouting in dams
Grout mixer machine is mainly used in grouting construction to mix slurry specially. It could mix water, cement, bentonite, sand and other additives rapidly. In addition, the grout mixer machine also can be widely used in engineering department of water resource and electric power, coal, railway, traffic, construction, mine etc. field.

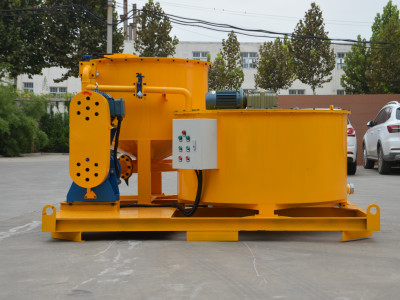

Our LMA850-1500E grout mixer machine is specially designed for consolidation grouting in dams, cement mixing and grouting in underground engineering. It is a skid mounted grout unit. This system is designed to provide a continuous mixing operation. The water, cement and bentonite are mixed through a high speed vortex produced by a special pump. As soon as the mixing process is over, the mixture is transferred into the agitator. The slow stirring paddle prevents the grout from setting out of suspension and removes any air bubbles from the mix. Mixer and agitator is switch by using butterfly valve.

Grout mixer machine for consolidation grouting in dams


LMA850-1500E grout mixer machine for consolidation grouting in dams is a combination of a steel sheet cylindrical mixer tank, heavy-duty slurry pump, and agitator tank, and set-up on a strong base frame. It’s agitator is used as holding tanks between the grout mixer and the grout pump. In the slowly revolving agitator, the grout suspensions are homogenized and possible air bubbles removed. Agitator volume is usually design based on the mixer volume. Same volume or large than the mixer. This can ensures better using. For the power: electric motor and diesel engine for your option.

Grout mixer machine for consolidation grouting in dams



Output: 11~14m3/h
Mixer volume: 850L
Agitator volume: 1500L
Pump delivery output: 700L/min
Motor power: 11+3Kw

Grout mixer machine for consolidation grouting in dams


Features of LMA850-1500E grout mixer machine:
1. This grout mixer machine for consolidation grouting in dams is simple structure, easy assemble .
2. Extremely fast mixing, mixing time just about 1-2 minutes.
3. Less spare parts, low maintenance. Lower maintenance cost.
4. Grout mixer and agitator switch by using butterfly valve, simple to operate.

Grout mixer machine for consolidation grouting in dams


Grout mixer machine for consolidation grouting in dams


Grout mixer machine for consolidation grouting in dams


Beside the LMA850-1500E grout mixer machine for consolidation grouting in dams, we also produce others grouting and pumping equipment. Such as: grout mixer and agitator (electric motor or diesel engine for option), grout pump (hand operate, electric motor, diesel engine), and grout plant (mixer, agitator and grout pump in one plant).

Contact us for price of grout mixer machine for consolidation grouting in dams:
If you are interested in our grout mixer machine, we will recommend a suitable grout mixer machine for you. Please help us to confirm the following points:
1. Mixer only or mixer with agitator do you need?
2. How about the grouting liquid? Just water and cement? Any sand in?
3. How about the water cement ratio? More than 0.45: 1?
We can supply many types grout mixer machines for you, you can send your demands to our email, email address: sales@leadcrete.com
