Portable air driven dry shotcrete machine supplier in China

2016-11-07 17:49:18

LZ-5 portable air driven dry shotcrete machine is medium-sized shotcrete machine for the processing of dry mix.

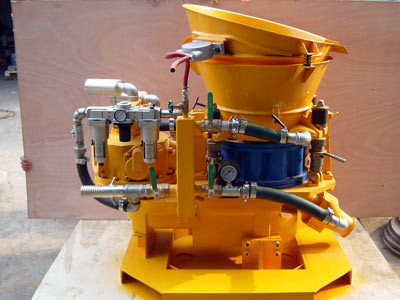

air driven dry shotcrete machine

LZ-5 gunite machine is available in following versions:

• Air motor driver or diesel drive combined with skid or rail-wheel.

• Basic: Electric drive can be combined with tyre chassis.

• Extended (optional): Electric motor drive with variable speed gearbox, air motor drive or diesel drive combined with Skid or Rail-wheel.

Lead Equipment Co., Ltd. is a portable air driven dry shotcrete machine supplier in China.LEC is a leading supplier of shotcrete/gunite machines in China, as well as an unique supplier with ISO 9001:2008,SGS and CE certificate in shotcrete/gunite machines in China.

Today we introduce emphatically the LZ-5 air driven dry shotcrete machine to you!
LZ-5 gunite machine can be used for tunneling, mining operations, hydropower projects and hillside protection, etc.


The  Features of LZ-5 portable air driven dry shotcrete machine:

♦ Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
♦ Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.
♦ Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dusk leak and prolong consumption parts life.

The pictures of portable air driven dry shotcrete machine supplier in China:

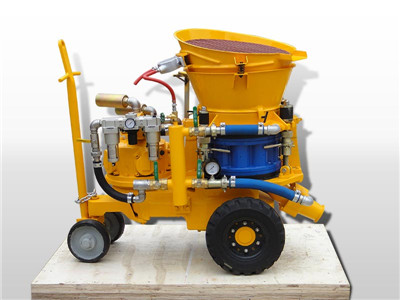

air driven dry mix shotcrete machine

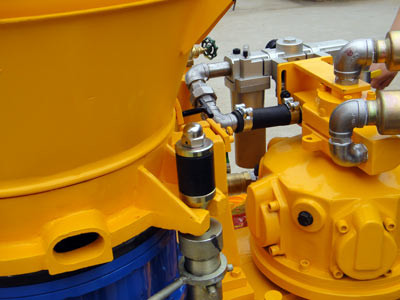

air motor of air driven dry shotcrete machine

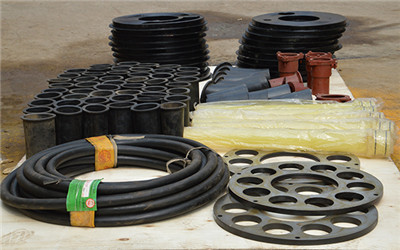

air driven dry shotcrete machine spare parts


Technical Data about LZ-5 portable air driven dry shotcrete machine:

Output Capacity

2.5-5.5m3 /h

Max. Horizontal Conveying Distance

200m

Suitable Mix Ratio(Cement/Sand)

≤1:3~5

Max. Aggregate Size

Φ15 mm

Conveying Hose Inner Diameter

Φ51 mm

Conveying Pressure

0.2-0.4MPa

Air Consumption for conveying material

7~8m3/min

Air Motor Air Pressure

0.5MPa

Material Charging Height

1.1m

Rotor Speed

11rpm

Air Motor Type

TMH6A

Air Motor Air Consumption

7.5m3/min

Overall Dimension(length×width×height)

1.35×0.75×1.2m

Net Weight

720kg
