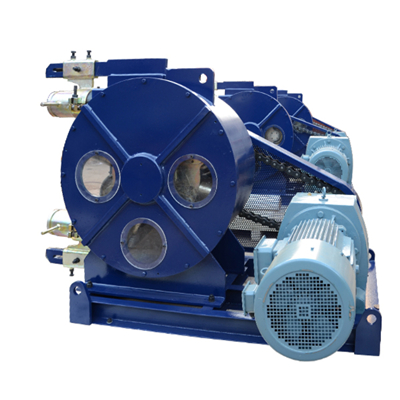

Peristaltic Hose Pump for Viscous Liquid

2016-11-21 16:27:59

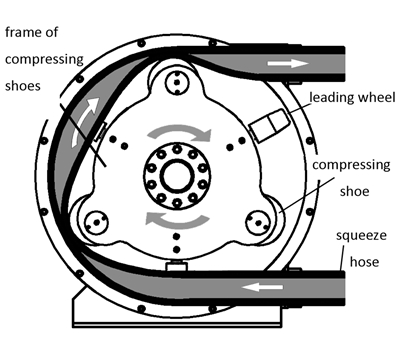

Working Principle:
Industrial peristaltic hose pump consists mainly of pump hose, rotor, roller, idle roller, squeeze tube and driving unit. The squeeze hose is U-shape in the  pump house, when rotor drives roller to rotate, hose is deformed. After the roller rotate, the deformed hose recover by its elasticity. Thus the negative pressure in this hose is generated, sucking slurries, and discharging through outlet under roller’s push, finally forms pressure conveying of slurries.

hose peristaltic pump



hose pump principle

Industrial hose pump working principle

Advantages:

1. No seals;

2. No valves;

3. Self-priming;

4. Only tube to replace;

5. Dry-running without damege;

6. Reversible.

Precision hose elements ensure:

1. Gives good force to roller;

2. Prolongs lifespan of hose;

3. Brilliant suction of 5m;

4. High pressure of 3Mpa;

5. High accuracy;

6. Interference-free conveying system;

7. Suitable for slurries of high viscosity.
