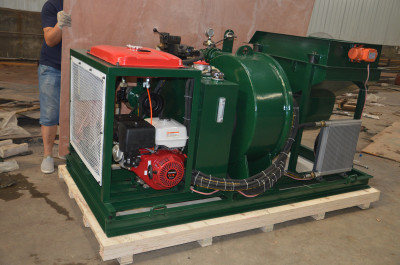

LDS2000 Shotcrete Pump

2015-06-09 15:14:22



Our LDS2000 is a lightweight shotcrete pump run by a highly-reliable direct drive planetary gearbox and hydraulic power pack. This sturdy workhorse is made better with the added improvement of a direct drive to the carousel.

Technical data sheet:

Item

Description

Working Pressure

1.5 Mpa (Chinese Hose)/3.5 Mpa (Trelleborg Hose)





Output

6-8m3/h

Max. Aggregate

10mm

The Squeeze Hose

ID 50mm

Conveying Hose

ID 50mm

Squeeze pump

GH50-680

Power

  Honda GX390 Gasoline Engine (low pressure)   Honda GX630 Gasoline engine(high pressure)

Overall Dimension

2350x1250x1450mm

Hopper volume:

240 Liter

Hopper rated rev.

76r/min

Oil tank

130 Liter

Weight

900kg

Requested air compressor

6m3/min, 0.6Mpa Pressure

Vertical Conveying Distance

15 m (Chinese Hose)/30 m (Trelleborg Hose)

Horizontal Conveying Distance

40 m (Chinese Hose)/80 m (Trelleborg Hose)
