Jet grout mix plant manufacturer

2021-05-08 18:17:10

Jet grout mix plant manufacturer

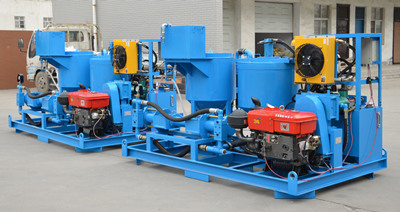

The jet grout mix plant was one high shear grout mixer, agitator, grout pump all-in-one. We have any types jet grout mix plant used for building grouting.

Jet grout mix plant manufacturer


The jet grout mix plant for sale has following advantages:
1. Continuous output with small pulse or kicks or jerks
2. Grouting pressure and flow both could be adjust step-less.
3. High speed vortex mixers ensure mixing evenly and quickly.
4. Grout mixer and agitator switch by using squeeze handle, easy to operate, safe and reliable.
5. The motors with overload protection function.
6. The hydraulic system with oil temperature overheating protection.
7. Less spare parts make sure the machine with low maintenance costs.
In one word, the jet grout mix plant for sale with simple structure, compact size, light weight, easy maintenance etc. features in one.


Jet grout mix plant manufacturer


Jet grout mix plant is mainly used for above-ground and underground engineering construction such as roads, railways, hydropower, buildings and mines, and can quickly mix water, cement, sand, bentonite, filler, clay, silicate and other media. Then grouting/grouting is carried out by plunger grouting pump to realize waterproof and plugging, tunnel lining, reinforcing foundation and rock stratum, filling gaps, etc. This series of grouting pump has the advantages of compact structure, high grouting pressure and wide application range.


Jet grout mix plant application


Jet grout mix plant is a combination of mixer, agitator and grout pump in one plant. The special mixing effect of cement or bentonite with water is archived in mixer by a high turbulence created in the pump casing. This turbulence with its high shear forces separates the cement or bentonite particles which results in a fully hydrated suspension.
As soon as the mixing process is over, the mixing is transferred into the agitator. The slow stirring paddle prevents the grout from settling out of suspension and removes any air bubbles from the mix. Each machine incorporates mixers and pumps of matched capacity which together with an agitated storage tank enable virtually continuous operation once work has commenced.

Jet grout mix plant for sale


As a professional jet grout mix plant manufacturerLead equipment offer you a suitable solution in Tunneling, Microtunnelling / Pipe Jacking / Directional Drilling, Anchoring, Dam construction, Diaphragm Walls / Slurry Walls and Soil Mixing (Deep Mixing). Now Lead equipment have developed full series of jet grout mix plant manufacturer, pump including piston type, plunger type and hose type. Mixer volume from 200L to 800L, agitator volume from 300L to 1200L, pump flow from 0 to 130L/min and pressure from 0 to 100 bar. Diesel power and electric power is provided for better used in varies conditions. So please contact us now for one suitable grout machine to mixing and pumping bentonite slurry.


Jet grout mix plant manufacturer


If you don’t know which type jet grout mix plant is suitable for your project, please help us to confirm the following points:
1. What is the pressure do you demands?
2. What is the flow do you demands?
3. Would you like the grout machine with electric motor or diesel engine If want the jet grout mix plant manufacturer work with electric motor; also please confirm the voltage at the worksite.

Send your answers and demands to sales@leadcrete.com for more suitable type and the best price.
