Grout pump for injecting microcement

2021-08-25 18:14:19

Grout pump for injecting microcement
Lead Equipment Co., Ltd. is a manufacturer specializing in the production of grout pump for injecting microcement. We have many different types of grouting pumps, piston grouting pumps, plunger grouting pumps, and squeeze grouting pumps, high pressure grouting pump, medium pressure grouting pump and low pressure grouting pump.

Grout pump for injecting microcement

Grout pump is mainly used for injecting microcement soil nails, foundation stabilization, tunnel lining, dam foundation, cable and rock bolts, earth anchors, slope line grouting and void fillings etc.

We are engaged in the research and development, production and sales of grout pumps for injecting microcement. And in the past years, we have accumulated a wealth of industry experience, and can provide personalized product customization services for customers' special demands. For example: LGH series grouting pumps have two types passageway, single and double passageway are optional freely. And have two types chassis, skid and tyre chassis could be tailored for you.

Grout pump for injecting microcement

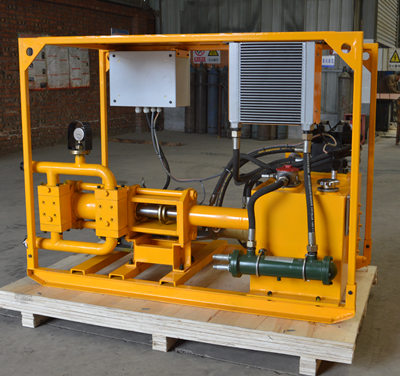

LGH series grout pump for injecting microcement is a general purpose high-pressure grouting pump, and driven by hydraulic pressure.
LGH70/100PI-E grout pump:
The grout pump for injecting microcement weighs 450kg. The rated output range of grouting pump is 0-70L/min, the rated working pressure is 10Mpa, its power unit is 7.5kw.
LGH100/100PI-E grout pump:
The grout pump for injecting microcement weighs 580kg. The rated output range of grouting pump is 0-100L/min, the rated working pressure is 10Mpa, its power unit is 11kw.

Grout pump for injecting microcement


Feature of LGH series grout pump for injecting microcement:
1. The grout pumps for injecting microcement have compact structure and save space;
2. The grout pumps for injecting microcement are easy to operate and low maintenance cost;
3. It is a single-piston double-acting grouting pump controlled by a ball valve (single or double passageway are optional);
4. LGH series grouting pump adopts hydraulic drive, which is stable and reliable in operation;
5. Equipped with emergency unloading valve: it can unload immediately in case of emergency;
6. When the grouting pumps for injecting microcement at low pressure, the two pumps merge and the output is large; under high pressure, only one pump works, and the output is relatively low.

In addition, we have three other types of grouting pump that can be used to inject microcement.
LGH95/165PL-E is a plunger-type grouting pump. It is driven by a electric engine. The adjustable pressure range is from 0-16.5Mpa and the adjustable flow rate is from 0-95L/min. Its fuel tank is 200L, and its power unite are respectively 37Kw, 3-400V, 50Hz.

Grout pump for injecting microcement


LGM80/50PLD-E grouting pump have double plunger hydraulic with two low-wear plunger pump, and ball valves, low pressure surge, variable pressure and flow. It is driven by a electric engine. Pressure and flow could be adjustable step-less. It is rated pressure from 0-5Mpa and the adjustable flow rate from 0-80L/min. And its power unite is 11Kw.

Grout pump for injecting microcement


LGH75/100PI-E grouting pump weighs 390kg. Its rated working pressure range from 0-10Mpa, its rated output range from 0-40L/min, and its power unit is 7.5kw.

Grout pump for injecting microcement


Before starting each time, check whether the hydraulic oil rod is sufficient and whether the proximity switch is fixed in place.
When the grout pump is working, check whether the oil pressure is stable, whether the oil temperature is high, and whether there is oil leakage.
When the grout pump shutting down, clean the grouting cylinder and delivery hose in time.

Contact us for details of grout pump for injecting microcement:
If you want us to help you recommend a suitable grout pump for injecting microcement, please let me know the following question:
1. What is the project you will do?
2. What rated flow and working pressure grout pump do you need?
3. How about the water and cement ratio, does any sand in?
4. Regarding the engine, do you want an electric engine or a diesel engine? If you need an electric engine, please let us know your local voltage.
You can send your demands to our email, email address: sales@leadcrete.com
