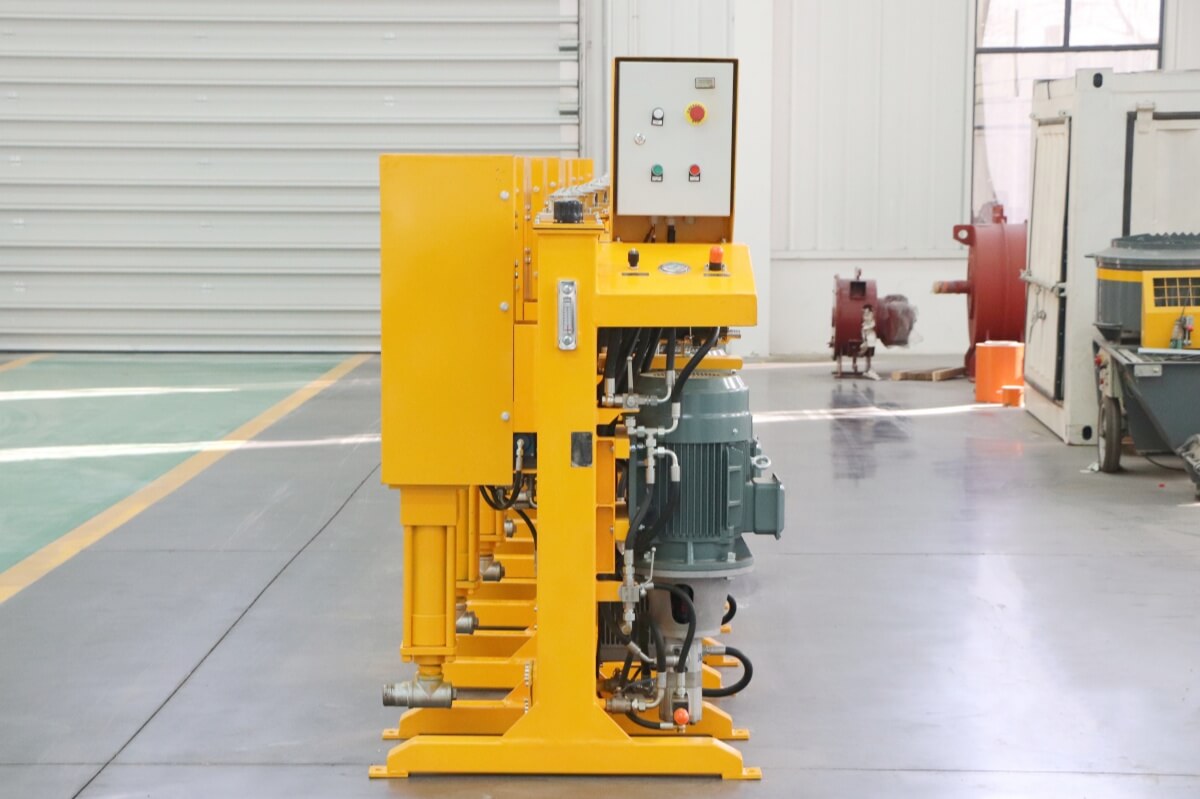

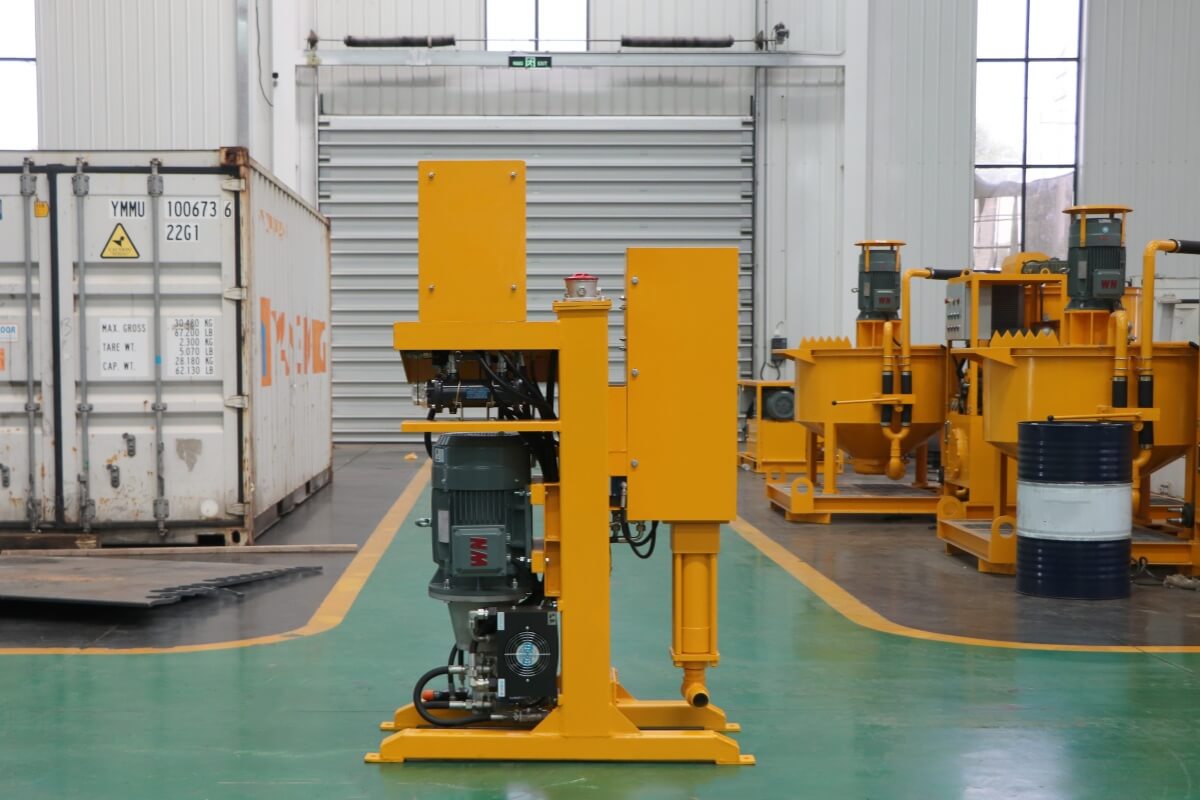

LGH75/100PI-E High Pressure Vertical Grouting Pump

  • Piston diameter:100mm
  • Piston stroke:150mm
  • Adjustable pressure( low pressure):0-50Bar/725psi
  • Adjustable flow rate( low pressure):0-75L/min
  • Adjustable pressure ( high pressure):0-100Bar1450psi
  • Adjustable flow rate( high pressure):0-40L/min

  • High Pressure Grout Pump
  • Vertical Grout Pump
  • hydraulic grout pump
  • Grouting Pumps
  • cement grout injection pump

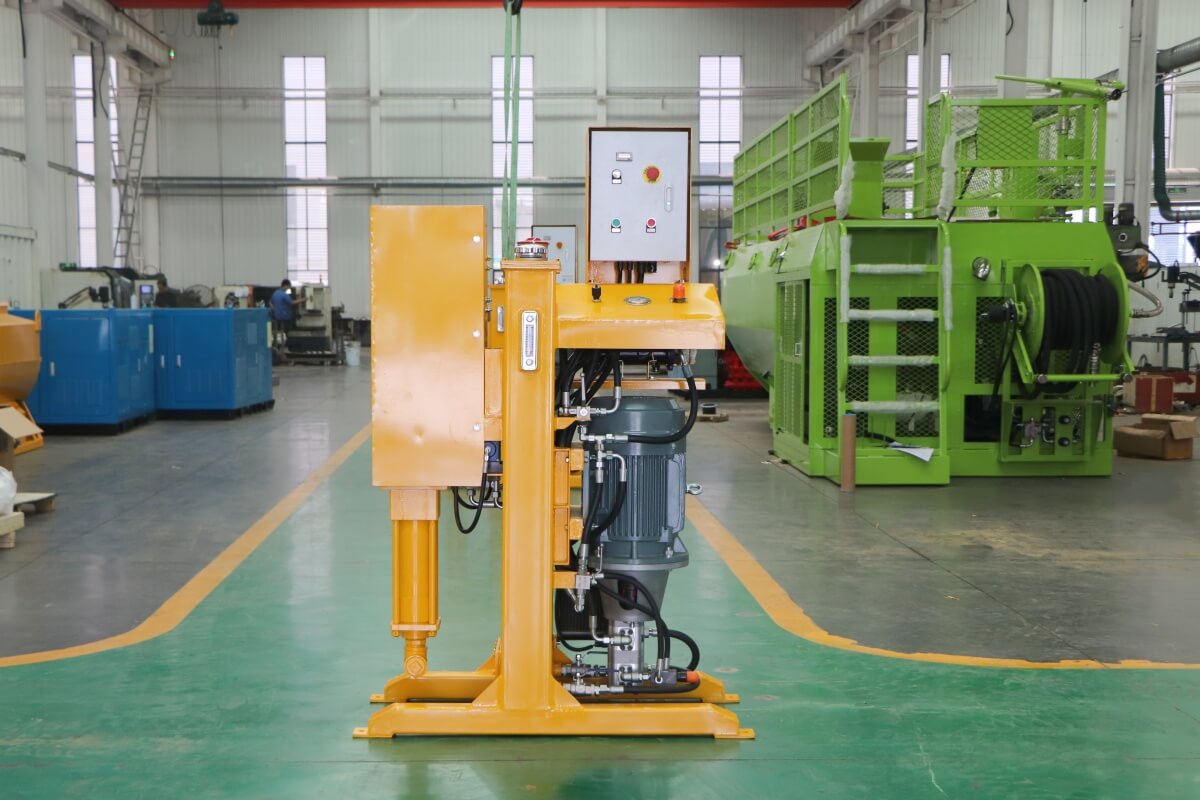

  • High Pressure Vertical Grouting Pump
Grouting Plant
Grout Mixer and Agitator
Grout Pump
HydroSeeders
Refractory Gunite/Mixer
Shotcrete Machine
Industrial Peristaltic Pump
Foam Concrete Machine
Concrete Mixer
Concrete Pump
Plaster Machine
hydraulic pump station
Customized Service

Phone/Viber/Wechat

+86-18538591025

Whatsapp

+86-18538591025

Email

sales@leadcrete.com

skype:

machine.machine6

ADDRESS

Xisihuan Ring-Road East, Tielu, Xiliu Lake sub-district, Zhongyuan District, Zhengzhou, Henan China

■Introduction

Description:

The LGH75/100PI-E High pressure vertical grouting pump is designed and made for permeation grouting, compaction grouting, backfilling grouting, curtain grouting, high pressure split grouting etc, grouting methods.

compact grout pump


electric grout pump

Application:

ØCivil Engineering- dam foundations, tunnels, mining, soil nails, tiebacks, earth anchors, cable and rock bolts

ØStructural– building and bridge restoration, foundation stabilization, foundation raising, soil compaction grouting; soil & rock grouting

Ø Construction- pavement under sealing, slab jacking and slab raising

High Pressure Grouting Pump


ØMarine- underwater foundations, piers, breakers, shoreline foundations

Ø Mining- tunnel lining, contact grouting, shaft waterproofing

Ø Utilities- encasements, waterproofing, slope line grouting

ØGeotechnical- deep well casing, monitor wells, well sealing and abandonment

High Pressure Grout Pump Application


Features:

1. Compact structure, light weight, easy operate, low maintenance cost;
2. With digital display counter: it can display at any time, and can accumulate work times;
3. Flow and pressure can be adjusted step-less;
4. High pressure grouting pump is equipped with emergency unloading valve: in case of an emergency, it can be load-off instantly;
5. In low pressure, it will be flow-converging of two pumps; In high pressure, there is only one pump work. Low pressure and large flow, high pressure and low output;
6. With full-hydraulic shaft device, stable and reliable operation;
7. Cooling type: water-cooling and air cooling; Suitable for hot and cold areas;
8. Provide customized framework.

Customizable grouting pump

■Product Details

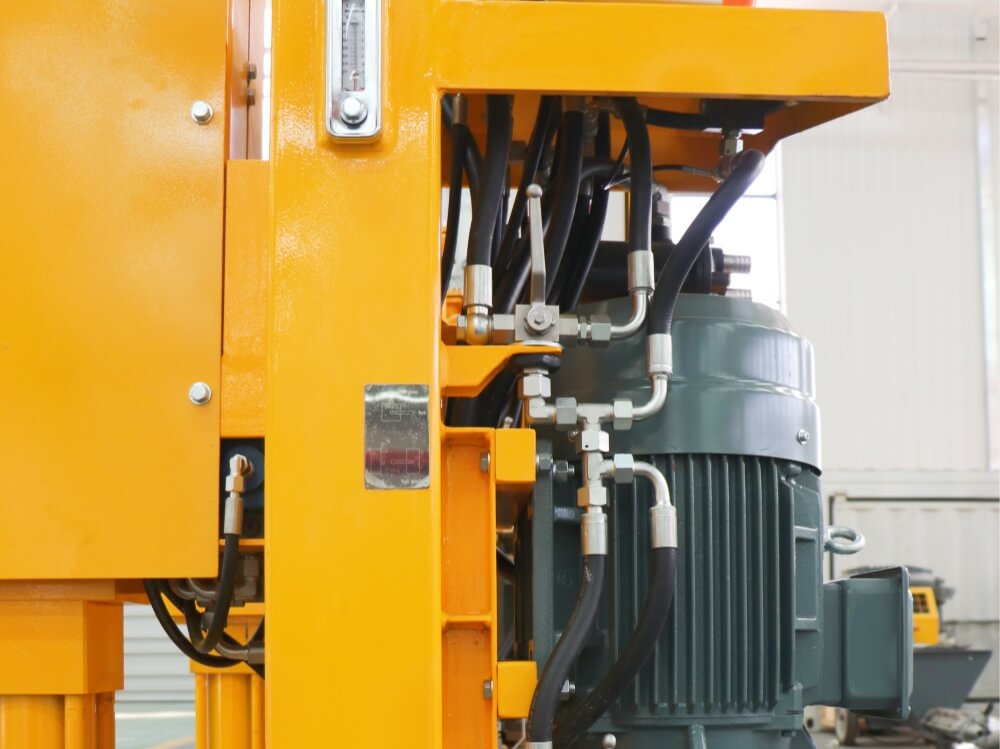

Equipped with emergency unloading valve

High pressure grouting pump equipped with emergency unloading valve

flow-converging of  two pumps

Flow converging of two pumps

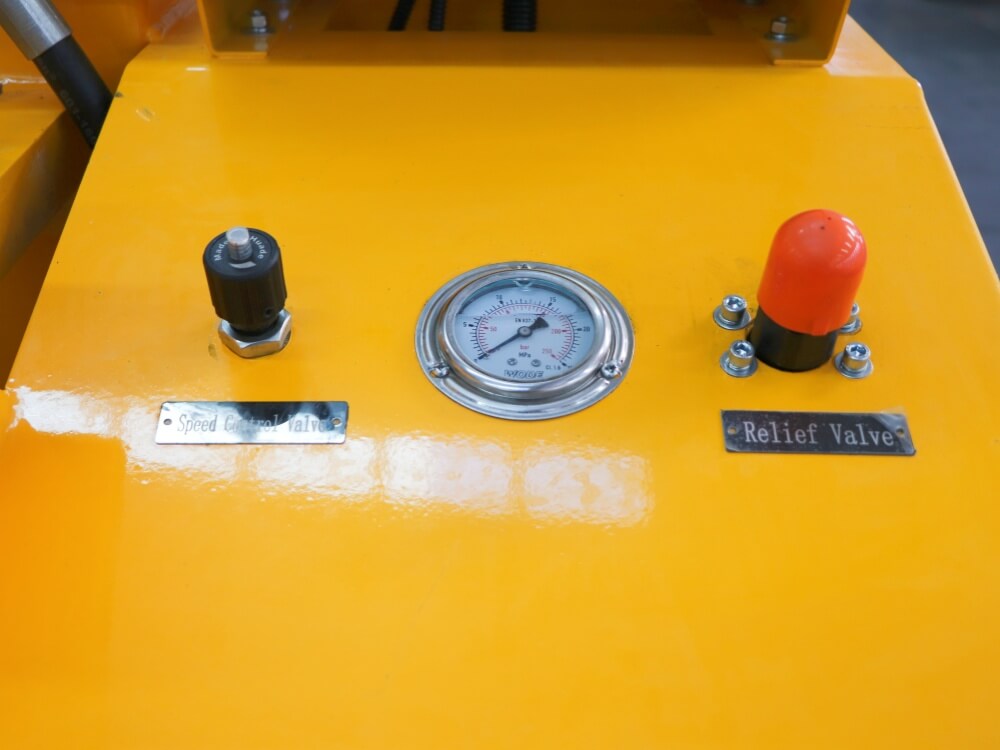

one pump or two pumps switch valve

One pump or two pumps switch valve

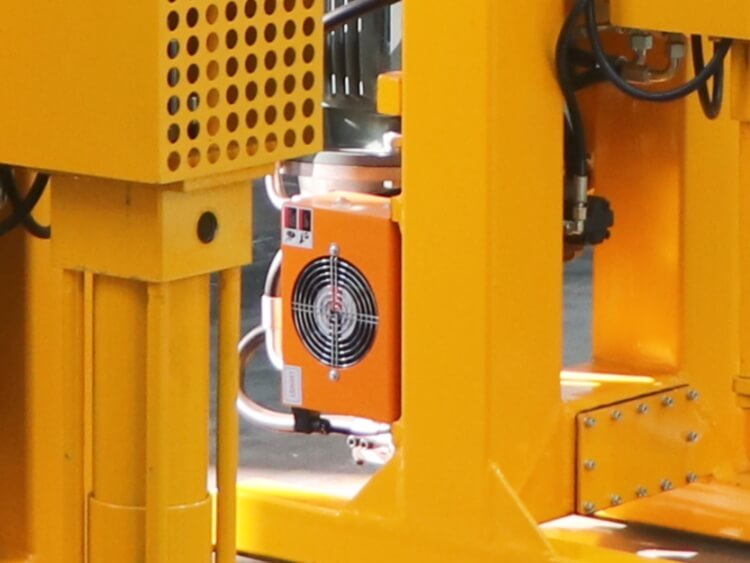

water-cooling and air cooling

Water-cooling and air cooling

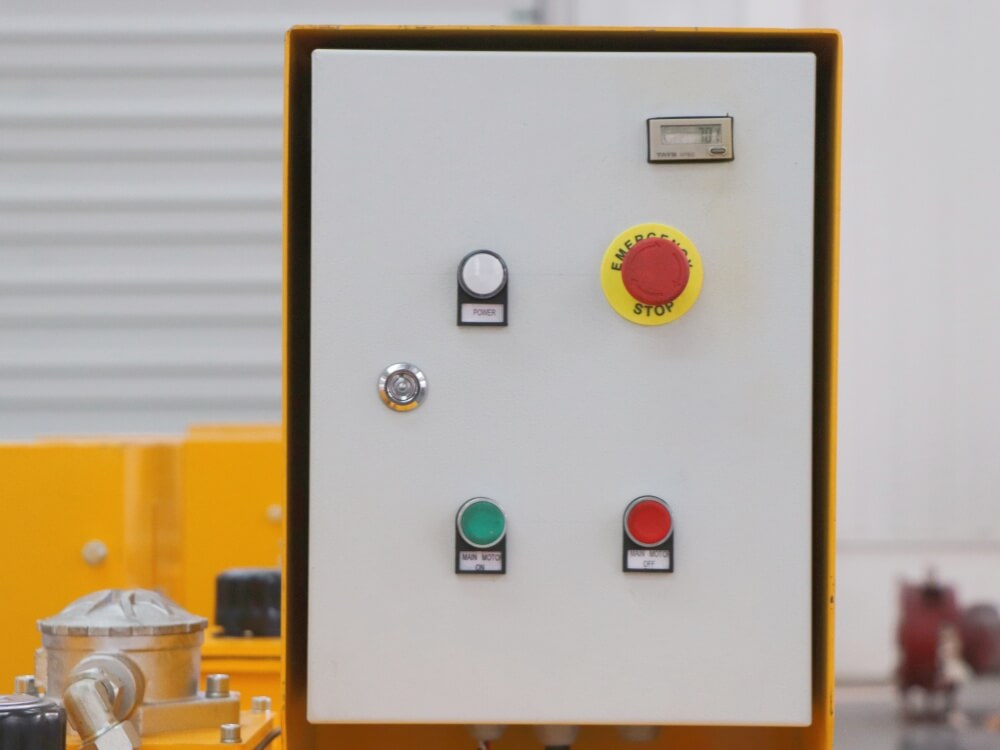

With digital display counter

With digital display counter

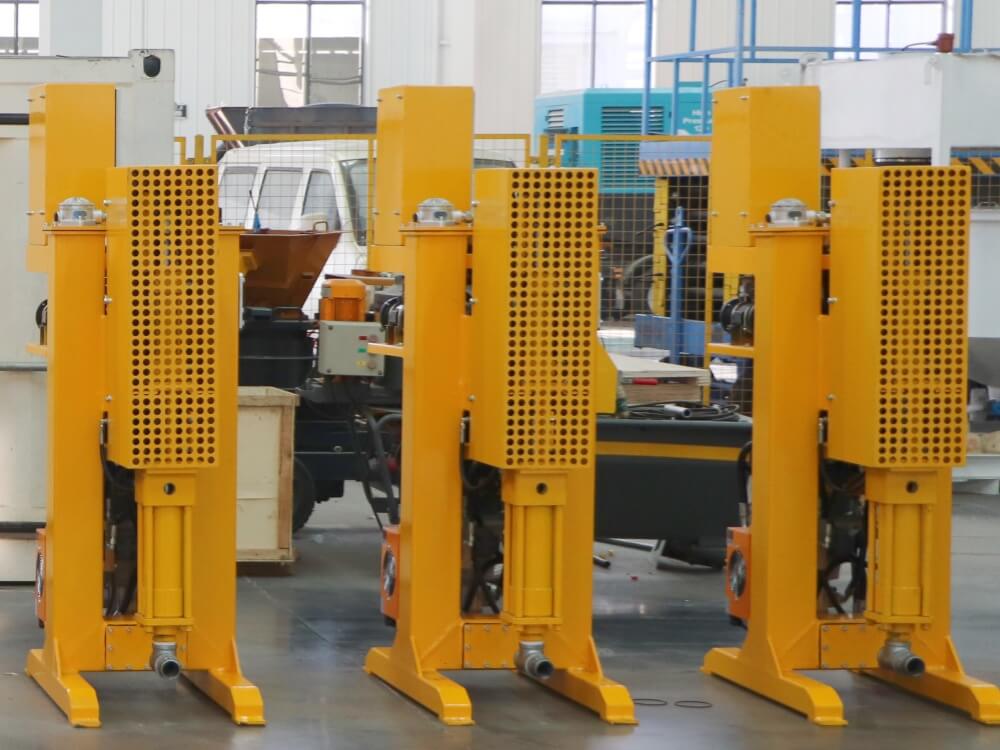

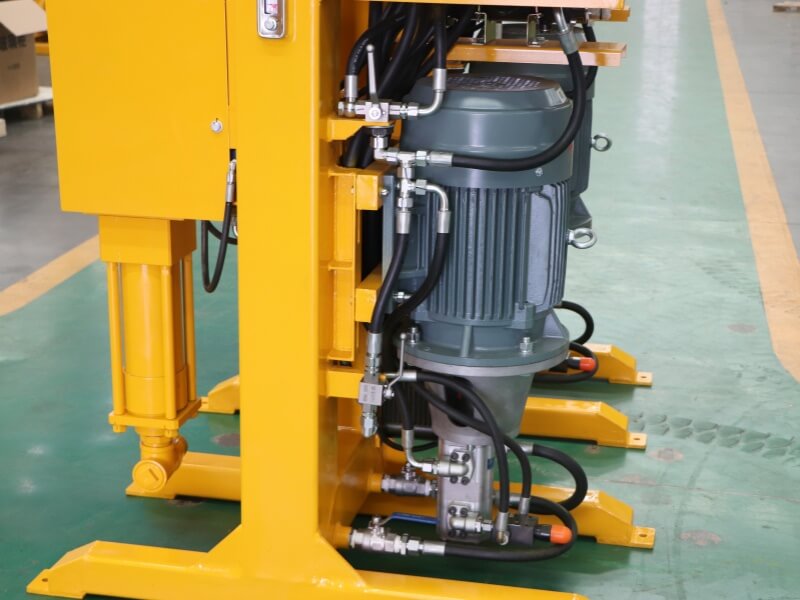

With full hydraulic shaft device

With full hydraulic shaft device

■Technical Parameters
Item LGH75/100PI-E high pressure grouting pump
Piston diameter 100mm
Piston stroke 150mm
Adjustable pressure ( low pressure) 0-50Bar/725psi
Adjustable flow rate( low pressure) 0-75L/min
Adjustable pressure ( high pressure) 0-100Bar1450psi
Adjustable  flow rate( high pressure) 0-40L/min
Discharge pipe size: M27x2
Inlet pipe size: G2’’
Power Unit 7.5kW
Chassis Skid
Weight 390Kg
Overall Dimension 1040x550x1650mm

Note: Chassis: Skid or Tyre

We also could according to your demands to customize high pressure grouting pump.
