Electric motor grout station

2017-03-16 10:41:20

Lead Equipment Co., Ltd. is a specialized supplier of electric motor grout station.

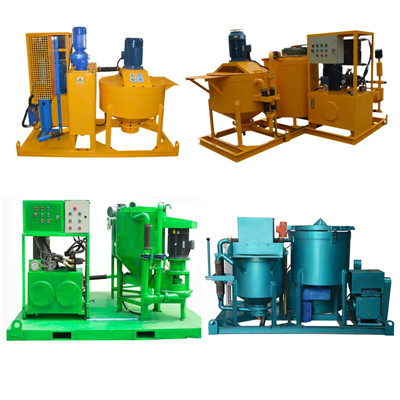

We have developed full series of electric motor grout station. Pump including piston type, plunger type and
hose type. Mixer volume from 200L to 800L, agitator volume from 300L to 1200L, pump flow from 0 to 130L/min, pressure from 0 to 10MPa.



Pump type

Mixer volume

Agitator volume

Pump flow

Pressure

LGP300/300/75PI-E Grout station

Piston pump

300 L

300 L

High speed:
0-75 L/min;
Low speed:
0-38 L/min;

High speed:
0-5 MPa;
Low speed:
0-10 MPa;

LGP200/300/100PI-E Grout Plant

Piston pump

200 L

300 L

0-100 L/min

0-10 MPa

LGP500/700/100PI-E Grout Plant

Piston pump

500 L

700 L

0-100 L/min

0-5 MPa

LGP220/300/300PI-E grout station

Piston pump

220 L

300 L

0-50 L/min

0-1.5 MPa

LGP400/700/80PL-E Grout Station

Plunger pump

400 L

700 L

High speed:
0-80 L/min;
Low speed:

0-58 L/min;

High speed:
0-2.5 MPa;
Low speed:

0-4.5 MPa;

LGP300/350/85PL-E Grout Station

Plunger pump

300 L

350 L

High speed:
0-85 L/min;
Low speed:

0-55 L/min;

High speed:
0-2.4MPa;
Low speed:

0-5 MPa;

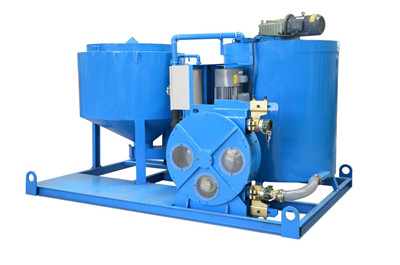

LGP800/1200/130H-E grout station

Hose pump

800 L

1200 L

30-130 L/min

0-1.5 MPa


If you have any questions, pls contact us freely: sales@leadcrete.com.
