The advantages of vertical grouting pump

2017-10-18 16:36:28

In the field of grouting pump, with the development of technology, vertical grouting pump technology gradually mature and popular in the field of grouting, vertical pump on the use of advantages, the next I give you to explore.


advantages of vertical grout pump

Advantages of vertical grouting pump
1. Vertical injection pump structure is simple, smooth operation, vibration, noise, easy disassembly and maintenance.
2. The high concentration of high viscosity material transport advantages, up to 10000PaS, but also transports the slurry containing suspended particles.
3. Vertical injection pump flows stability, no overcurrent, pulsation and mixing, shear slurry phenomenon.
4. Self-priming ability, do not have to install the bottom valve can also directly suck the liquid.
5. Discharge pressure has nothing to do with the speed, low flow can also maintain a high discharge pressure.
6. Vertical injection pump flow is proportional to the speed, through the transmission mechanism or speed motor can easily achieve flow regulation.

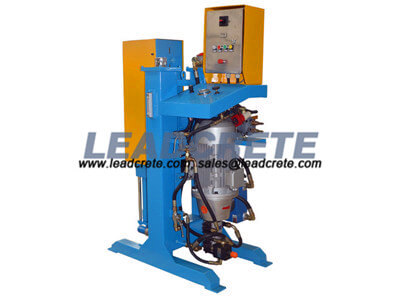

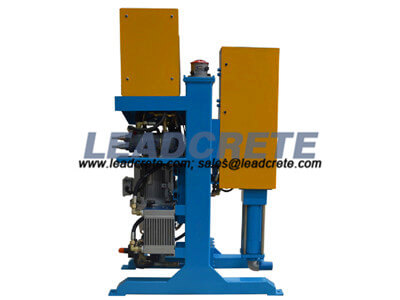

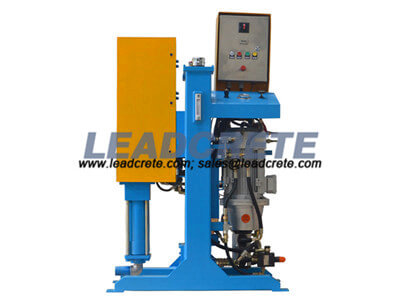

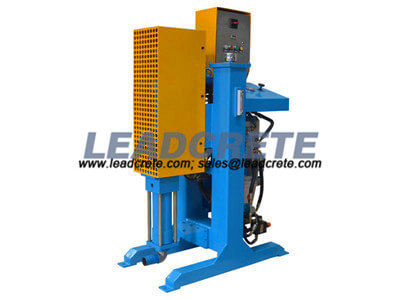

Our company LDH 75/100 vertical grouting pump is designed and made for backfilling grouting, permeation grouting, compaction grouting, curtain grouting, high pressure split grouting etc. projects.

compaction vertical grouting pump


Technical data of LDH 75/100 vertical grouting pump

Piston diameter

100mm

Piston stroke

150mm

Adjustable pressure ( low pressure)

0-50Bar/725psi

Adjustable flow rate( low pressure)

0-75L/min

Adjustable pressure ( high pressure)

0-100Bar1450psi

Adjustable pressure ( high pressure)

0-40L/min

Discharge pipe size:

M27x2

Inlet pipe size:

G2’’

Power Unit

7.5kW

Chassis

Skid

Weight

390Kg

Overall Dimension

1040x550x1650mm

The company is a professional grouting pump manufacturer and supplier, in the field of vertical grouting injection pump research and development has been in a leading position, the production of vertical injection pump to use obvious advantages! If you have the same need, you can contact us freely. Email address: sales@leadcrete.com.
Vertical grouting pump:

vertical pump



vertical grouting pump
