High quality grouting pump for subway construction


High quality grouting pump for subway construction
The high quality grouting pump for subway construction is the key equipment in the grouting construction process. The working performance and product quality of the high quality grouting pump for subway construction play an important role in the safety and work efficiency of the grouting project. If the high quality grouting pump for subway construction is chosen blindly and arbitrarily, the construction efficiency may not reach the expected effect, and even cause the occurrence of engineering accidents. Therefore, it is very important to choose a high quality grouting pump for subway construction with good performance and quality assurance.

High quality grouting pump for subway construction


We have several popular high quality grouting pump for subway construction, for example:

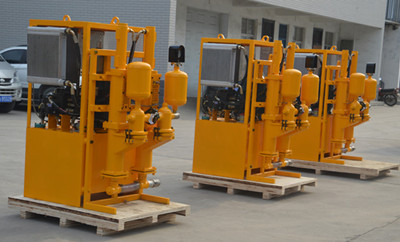

LGH95/165PL-E is a plunger-type grouting pump. It is driven by a electric engine. The adjustable pressure range is from 0-16.5Mpa and the adjustable flow rate is from 0-95L/min. Its fuel tank is 200L, and its power unite are respectively 37Kw, 3-400V, 57Hz. It is used for injecting in the sub-soil for soil consolidation, piling or even for long transport of material. The equipment adopts two pieces of high pressure plungers to stabilize the consistency of the grouting flow. Grouting pressure and displacement is step-less adjustable.


High quality grouting pump for subway construction
LGM80/50PLD-E grouting pump for subway construction have double plunger hydraulic with two low-wear plunger pump, and ball valves, low pressure surge, variable pressure and flow. It is also driven by a electric engine. Pressure and flow could be adjustable step-less. It is rated pressure from 0-5Mpa and the adjustable flow rate from 0-80L/min. It is suitable for all grouting work, up to 8mm particle size , such as, for the pumping of backfill mortar behind tunnel liners, grouting in soil, earth foundation stabilization, waterproofing, tunnel lining, underwater foundations, bridge decks, deep well casing, slope line grouting, etc.

High quality grouting pump for subway construction

1. Simple structure, light weight, easy maintenance;
2. With the function of record and display grouting pump reciprocating times by a counter;
3. The engine has an overload protection function. Hydraulic system with oil temperature overheating protection;
4. Grouting pressure, displacement is step-less adjustable;
5. Less spare parts ensure low maintenance costs;
6. Electric engine and hydraulic driven. Anytime, over pressure occurred, the hydraulic safety protection will be worked.

High quality grouting pump for subway construction


After years of technological development and experience accumulation, We are already far ahead in China's high quality grouting pump industry. We are engaged in the research and development, production and sales of high quality grouting pump for subway construction. In the manufacturing process of the grouting pump, we adopt professional processing equipment, introduce foreign advanced production technology, and strictly require the quality of the product in accordance with the quality control system. Therefore, our products have quality assurance, and customers can choose us with confidence.

High quality grouting pump for subway construction


Contact us for grouting pump price:
We are a professional manufacturer of high quality grouting pump for subway construction, our engineer has strong ability for designing and manufacturing the grouting equipment as per your requirement, please help us clear about your detailed requirements:
1. What project will you do with grouting equipment?
2. What is output and pressure of pump?
3. What is the water cement ratio?
4. Which engine do you prefer? electric or diesel, if electric engine, please let us know your local voltage.
You can send your demands to our email, email address: sales@leadcrete.com.
