Foam concrete system (pump, mixer) for sale
2025-10-25 13:48:13
Today, our factory successfully dispatched a GF10B foam concrete system to a valued customer in the Philippines. This CLC making machine is set to play a pivotal role in their operations, specifically for pouring foamed concrete to enhance roof insulation.

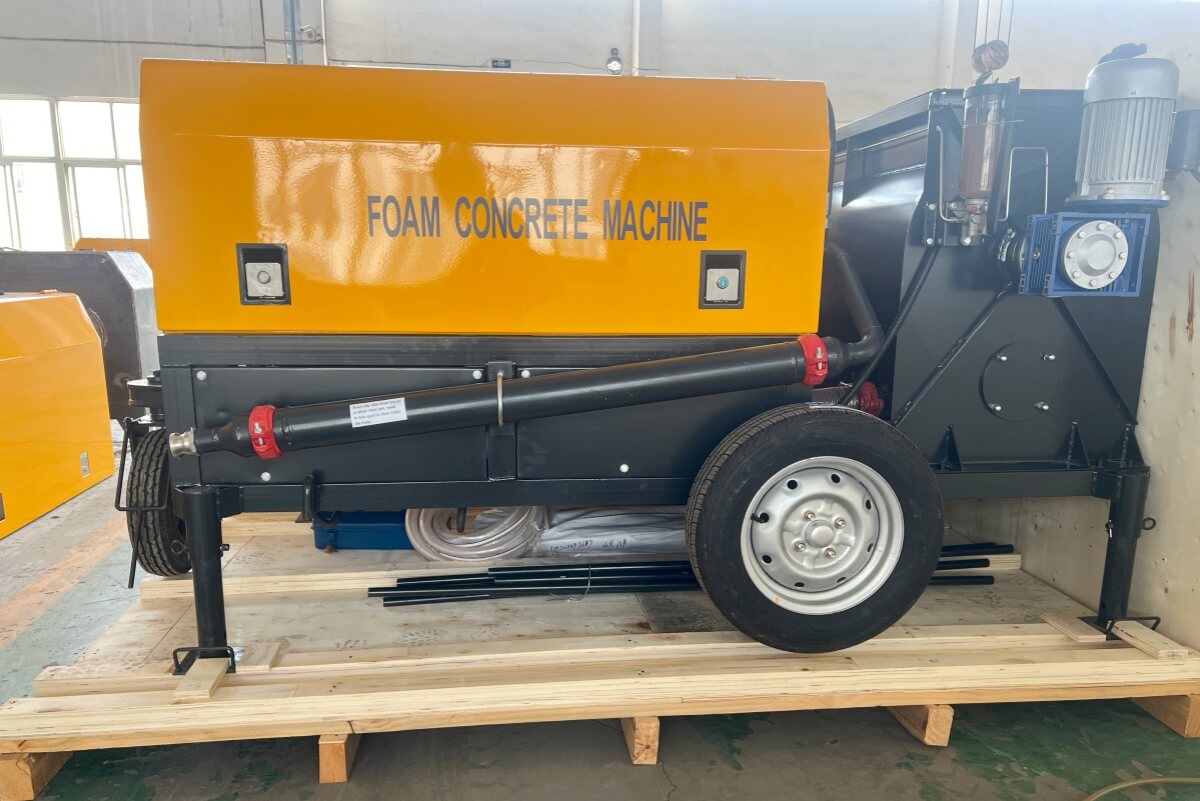

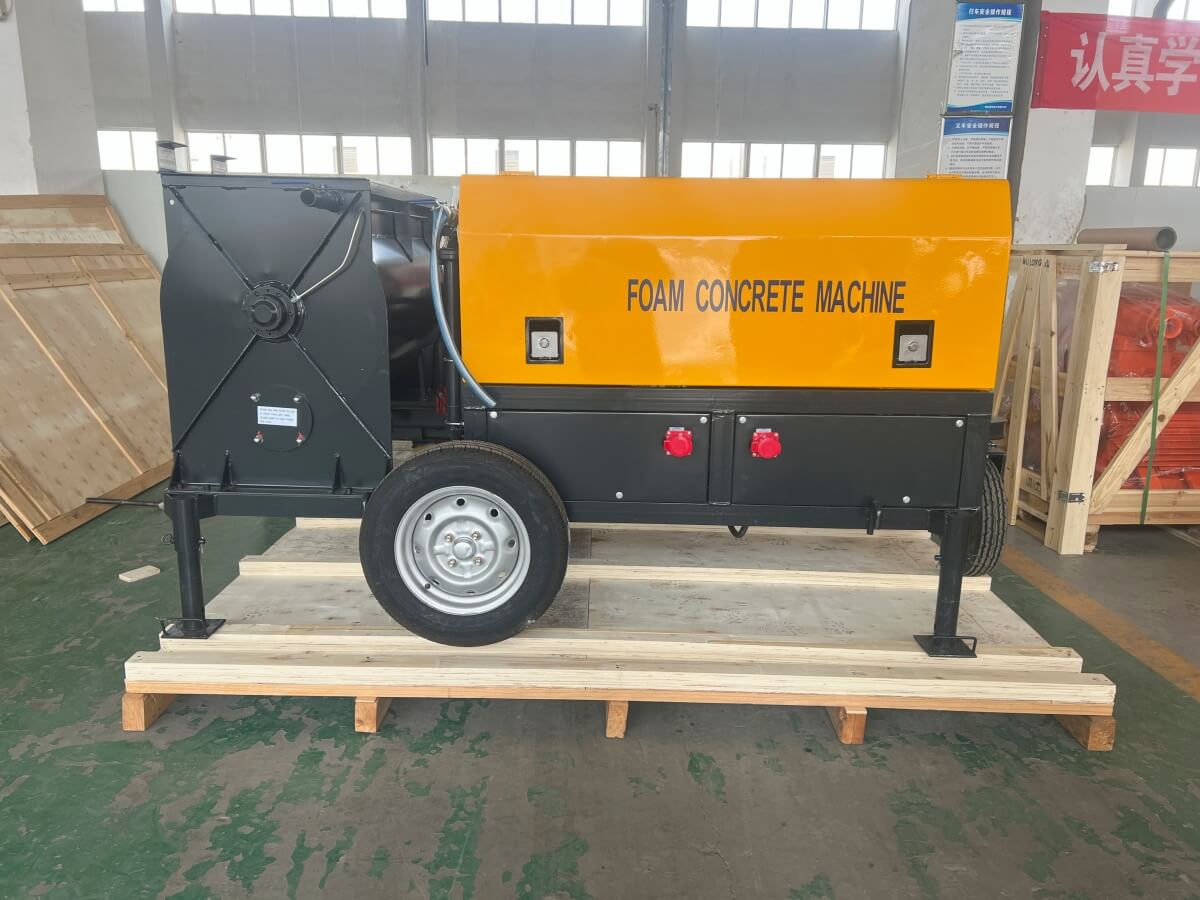

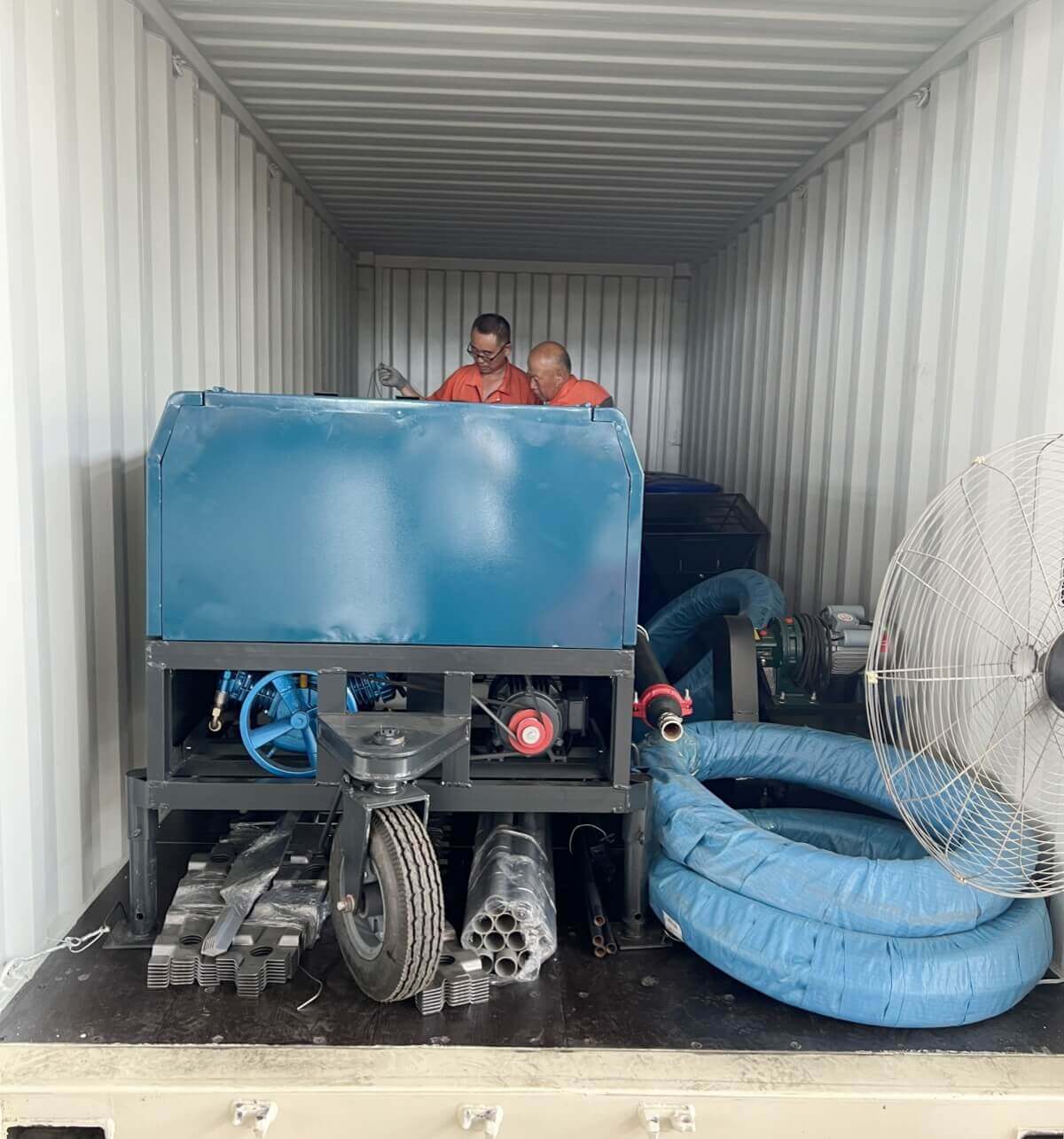

Foam concrete system equipment system structure:
1. Foaming Unit: This unit incorporates an air compressor, a foaming agent solution pump, and a foam generator. It employs either a venturi mechanism or rotating blades to ensure the uniform production of foam, a crucial step in achieving consistent material quality.
2. Mixing Unit: Featuring a twin-shaft forced mixer, this unit guarantees the thorough blending of foam and cement paste within a mere 30 seconds. This rapid mixing process is essential for preventing density fluctuations that could arise from foam breakage, thereby maintaining the integrity of the final product.
3. Pumping and Forming Unit: Equipped with either a screw pump or piston pump, this unit facilitates vertical conveying of the concrete up to 200 meters. The concrete is then shaped into the desired form through mold casting or on-site spraying techniques, offering flexibility in construction applications.
Advantages of Foam Concrete:
Foam concrete boasts a range of benefits that make it an attractive choice for various construction projects:
1. Low density, ranging from 300 to 1800 kg/m³, which reduces the overall structural load.
2. Excellent thermal and acoustic insulation properties, enhancing energy efficiency and soundproofing.
3. Inherent fire resistance, providing an added layer of safety.
4. Self-leveling capabilities and ease of pumping, simplifying the construction process.
5. Reduction in structural load, contributing to more efficient and sustainable building designs.
Foam concrete systems find extensive use in a variety of scenarios:
Void Filling: Ideal for filling abandoned tanks, tunnels, and sewers.
Roof Insulation: Acts as a lightweight thermal insulation layer.
Floor Screeds: Perfect for underfloor heating systems.
Precast Blocks: Lightweight blocks suitable for wall construction.
Thermal and Acoustic Insulation: Enhances energy efficiency and soundproofing in buildings.
Fire Resistance Applications: Provides critical fire protection in high-risk areas.
Slope and Tunnel Stabilization: Strengthens and stabilizes slopes and tunnels.
Other Applications and Typical Cases of the GF10B Foam Concrete Machine
1. Building Energy Efficiency
Roof Insulation: Foam concrete with a density of 800–1200 kg/m³ is utilized for the slope leveling layer of sloping roofs, boosting construction efficiency by 40% compared to traditional materials.
Wall Self-Insulation: When combined with reinforced concrete to form a sandwich wall, the heat transfer coefficient is significantly reduced to below 0.5W/(m²·K).
2. Infrastructure
Soft Soil Treatment: Foamed concrete with a density of 400-600kg/m³ is employed for highway and airport runway replacement, effectively controlling settlement.
Pipeline Backfill: Foamed concrete with a density of 600-1100kg/m³ is used to fill the perimeter of underground pipelines, preventing stress concentration in the pipes that could result from traditional sand and gravel backfill.
3. Special Projects
Fire Barriers: Foamed concrete with a density of 300-500kg/m³ is utilized for fire partitions in high-rise buildings, offering a fire resistance limit of up to 3 hours.
Anti-Floating Anchors: Combined with rebar, they form a lightweight, anti-floating structure that effectively addresses the anti-floating problem in underground garages.
Should you be interested in purchasing a foam concrete production line for any of the projects mentioned earlier, please do not hesitate to contact us. For more detailed cellular foam concrete machines information, feel free to reach out via email at sales@leadcrete.com.
