Durable peristaltic pump for pumping mud

2021-09-01 15:20:57

Durable peristaltic pump for pumping mud
Lead Equipment Co., Ltd. is a manufacturer specializing in the production of durable peristaltic pump for pumping mud. We are engaged in the research and development, production and sales of durable peristaltic pump for pumping mud. During the manufacturing process of peristaltic pumps, we strictly control product quality in accordance with the quality control system and have obtained ISO 9001. , SGS and CE certification. After years of technological development, We have developed a full range of peristaltic pumps with tens of models. We also have accumulated a wealth of industry experience, and can provide personalized product customization services for customers' special demands.

durable peristaltic pump for pumping mud


LH89-610C durable peristaltic pump for pumping mud consists mainly of pump house, rotor, roller, idle roller, squeeze tube and driving unit. The squeeze hose is U-shape in pump house, when rotor drives roller to rotate, hose is deformed. After the roller rotate, the deformed hose recover by its elasticity. Thus the negative pressure in this hose is generated, sucking slurry, and discharging through outlet under roller's push, finally forms pressure conveying of mud.

durable peristaltic pump for pumping mud

The max working pressure of LH89-610C durable peristaltic pump for pumping mud is 1.0Mpa, it’s max output is 240L/min, and its power unit are respectively 22Kw, 380V, 50Hz. If you have any special requirements, we can customize it for you.

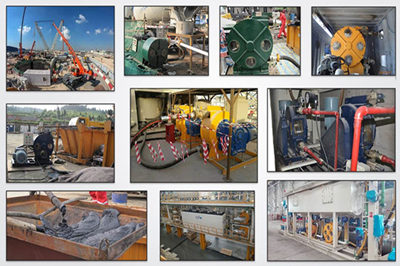

1. Durable peristaltic pump can work as a benonite pump or foam, slurry pump in tunnel boring machine(T BM).
2. Textiles - fibre, dyes and additives.
3. Printing and packaging - varnishes, inks, coatings and adhesives.
4. Pint and pigments - dispersion mill feed, pigment and latex transfer.
5. Peristaltic hose pump mining and mineral separation - tailing.
6. Ceramics and glass - fine China.
7. Industrial peristaltic pump for conveying slurry, sludge and reagents.
8. Peristaltic pump for pumping water and wastewater treatment - lime, sodium hypochlorite, ferric chloride and sludge.
9. Chemical - corrosive acids, and bases.
10. Durable peristaltic pump for construction - pumping the cement slurry, mortar or light-weight concrete or foam concrete, etc.

durable peristaltic pump for pumping mud


1. No seals.
2. No valves.
3. Self -priming.
4. Only tube to replace.
5. Dry -running without damage.
6. Reversible.
7. No contact between product and mechanical parts.
8. It is able to pump products with solid parts inside.
9. It is easy maintenance, low-cost, short down time.

durable peristaltic pump for pumping mud


In addition, we have other types of durable mud peristaltic pump. For example:
LH76-770B peristaltic pump working pressure is 25bar, its max output is 14m3/h, and its power unite are respectively 18.5Kw, 220V, 60Hz.

durable peristaltic pump for pumping mud

LH76-915B peristaltic pump working pressure is 10bar, its max output is 20m3/h, and its power unite are respectively 18.5Kw, 380V, 50Hz.

durable peristaltic pump for pumping mud


LH100-1050B peristaltic pump working pressure is 26bar, its max output is 30m3/h, and its motor power is 45kw.

durable peristaltic pump for pumping mud


Contact us for details of durable peristaltic pump for pumping mud
If you are interested in our durable peristaltic pump for pumping mud, we will recommend a suitable durable mud peristaltic pump for you. Please help us to confirm the following points:
1. What is the project with our peristaltic pump, is it for pumping concrete or others?
2. What is the pressure and output you require?
3. What is the local voltage you require? here the voltage 380V, 50HZ, is it OK for you?
You can send your demands to our email, email address: sales@leadcrete.com.
