Electric dry mix shotcrete machine

2026-01-26 17:02:15

The electric dry mix shotcrete machine feeds a dry cement-sand-aggregate mixture (with dry powder accelerator added if necessary) into a hopper, mixes it, and then feeds it into the rotor/rotary feed wheel chamber. An electric motor drives the rotor to rotate; compressed air is injected, pushing the dry powder mixture through a delivery hose to the nozzle. Water is added only at the nozzle (not inside the machine body) to wet the mixture before spraying onto the target surface. The high-speed airflow ensures good bonding and compaction of the concrete with rock, soil, or existing structures.

Core components of the electric shotcrete machine:

1. Motor drive system: Three-phase motor (common specifications 5.5/7.5kW, 380V/460V, 50/60Hz) + reducer, providing stable torque.

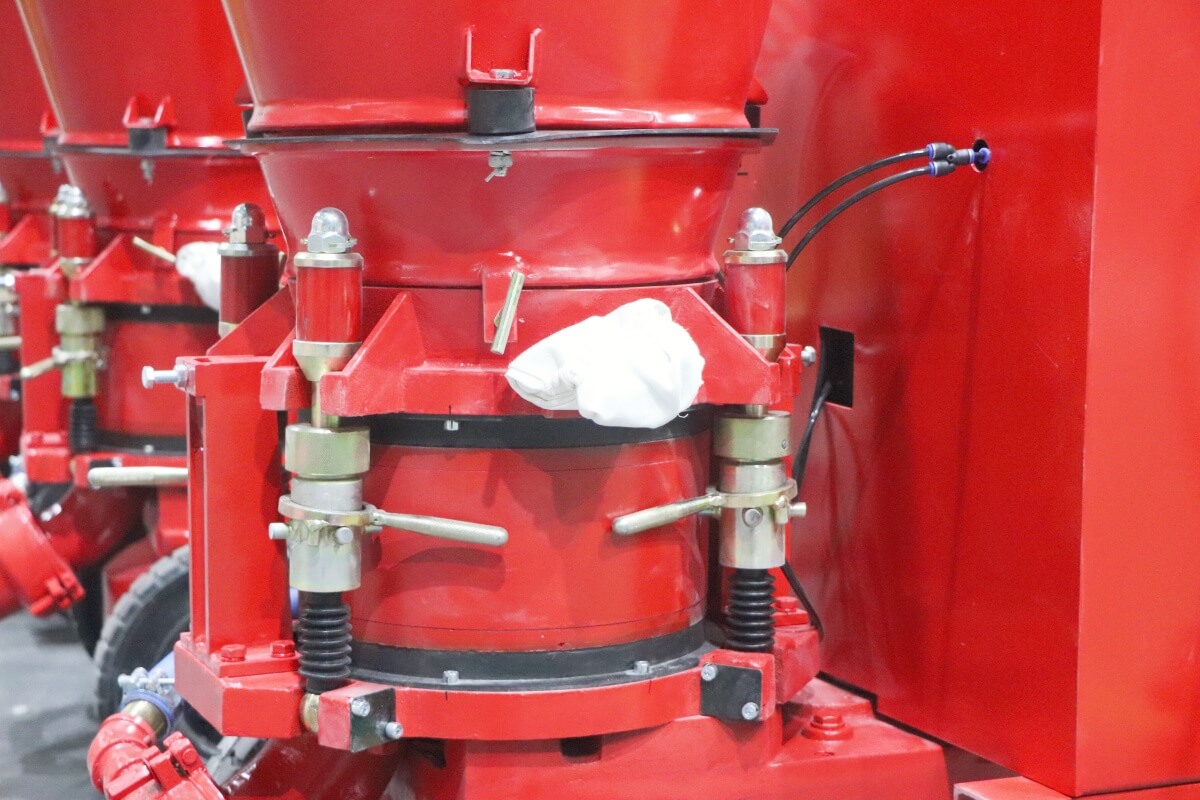

2. Rotor assembly: Rotating cylinder with material chamber, sealed with wear-resistant rubber to prevent air leakage.

3. Air System: Compressor (external, typical 6–12 m³/min, 0.3–0.6 MPa), air hoses, pressure regulator.

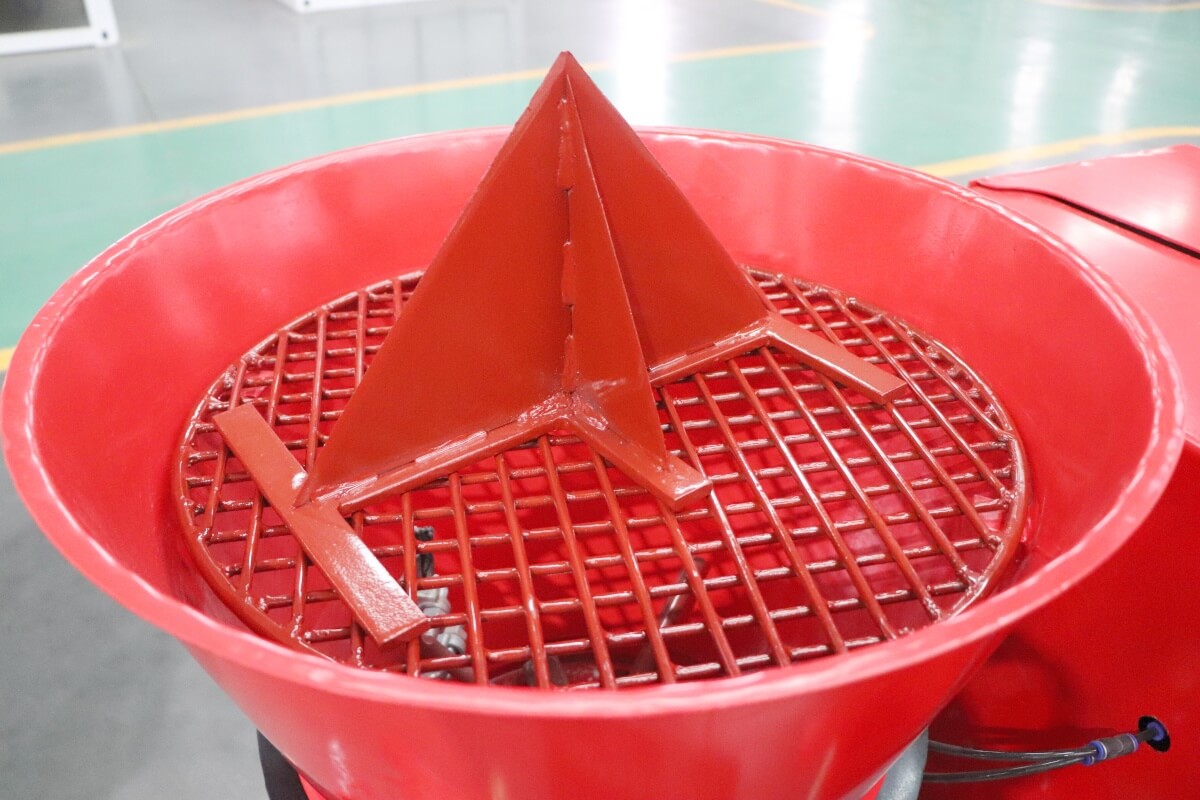

4. Hopper and Agitator: Prevents material bridging; some models are equipped with a bag breaker.

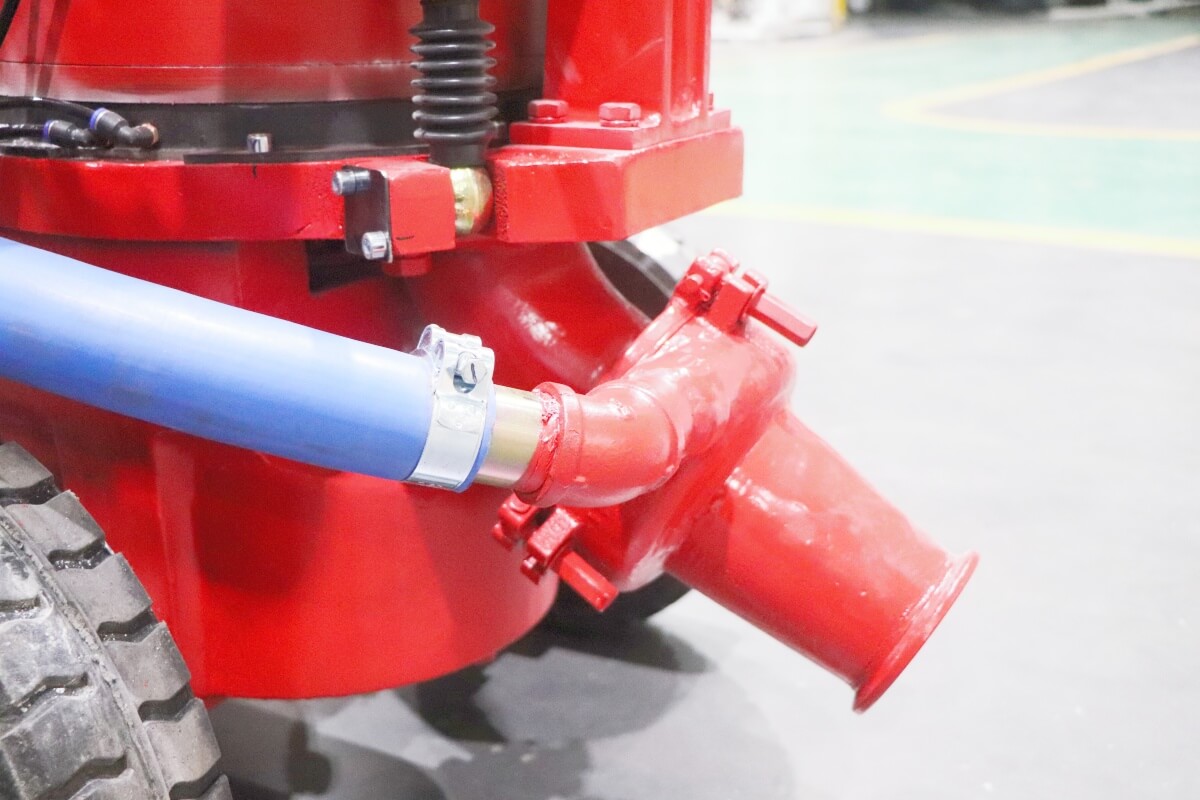

5. Nozzles and Manifolds: Water ring ensures uniform wetting; wear parts are replaceable.

6. Control Panel: Motor start/stop, air pressure monitoring, emergency stop.

Main applications of electric gunning machines:

Underground Engineering: Tunnels, mines, subway stations, culverts.

Slope and Soil Stabilization: Retaining walls, landslide prevention, rock face reinforcement.

Hydropower and Civil Engineering: Dam maintenance, canal lining, underground caverns.

Refractory Material Spraying: Furnaces, kilns (using specialized refractory material mixtures).

Advantages of a dry mix shotcrete machine compared to a diesel shotcrete machine:

1. Electric drive advantages: Lower noise, zero emissions on-site (suitable for enclosed spaces), lower operating costs, and simpler maintenance than diesel engines.

2. Dry mix machine characteristics: Lighter weight, easier to transport; less water consumption on-site; faster installation; better suited for cold climates (pipes won't freeze).

3. Limitations: Higher dust emissions (requires dust collectors/personal protective equipment); operator skill can affect the stability of the water-cement ratio; greater nozzle wear.

Dry mix shotcrete machine operation and maintenance tips:

- Ensure the dry mix is uniform (cement:sand ≤1:3–5) and free of lumps.

- Control the air pressure (0.2–0.4 MPa) and water flow at the nozzle to avoid over-wetting (slump) or under-wetting (insufficient strength) concrete.

- Regularly inspect rubber seals, rotor discs, and nozzle wear parts; replace immediately if damaged.

- Use full personal protective equipment: dust mask/respirator, goggles, earplugs, gloves.

- Comply with electrical safety regulations (grounding required; waterproof housing required for outdoor use).

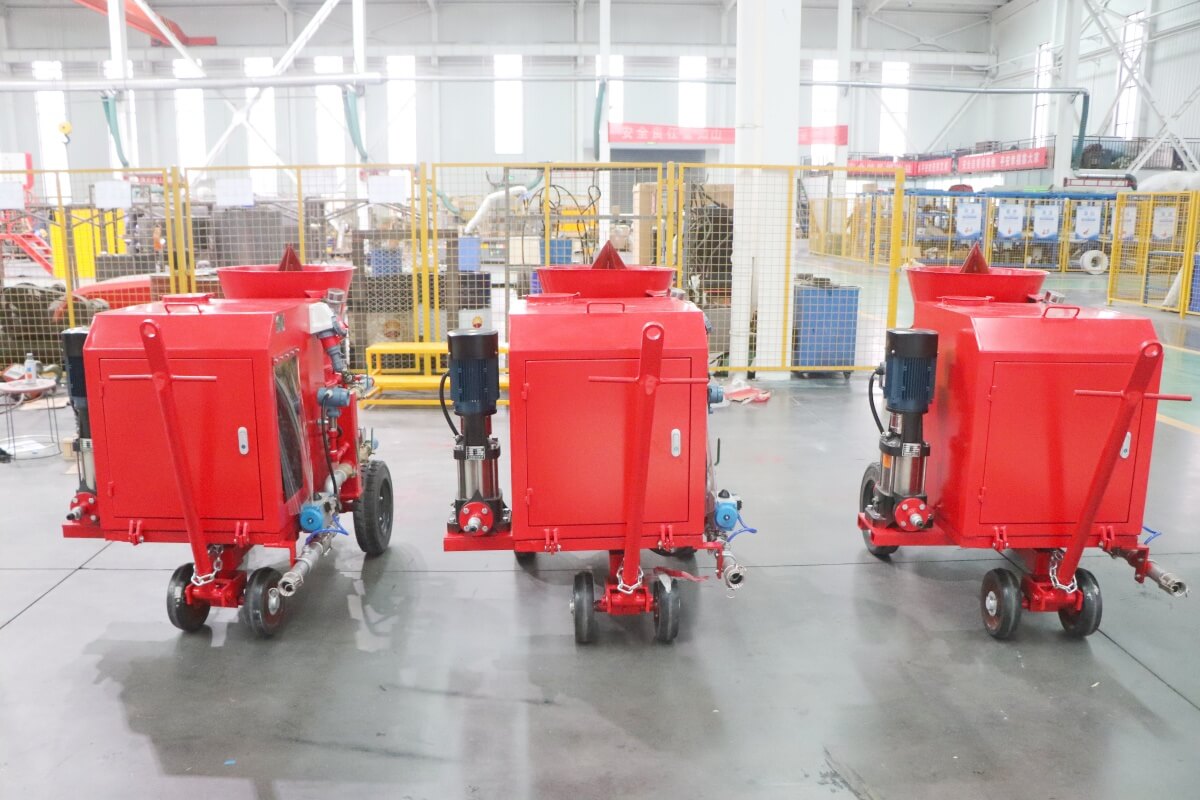

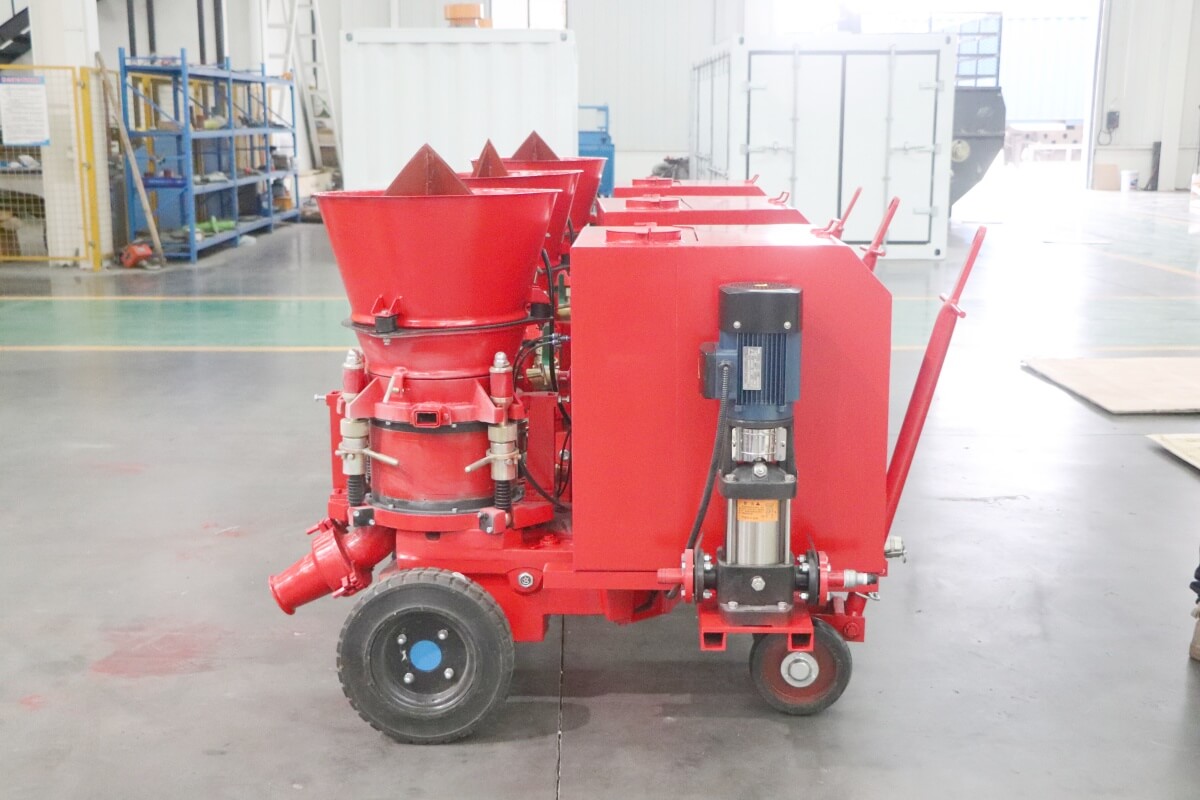

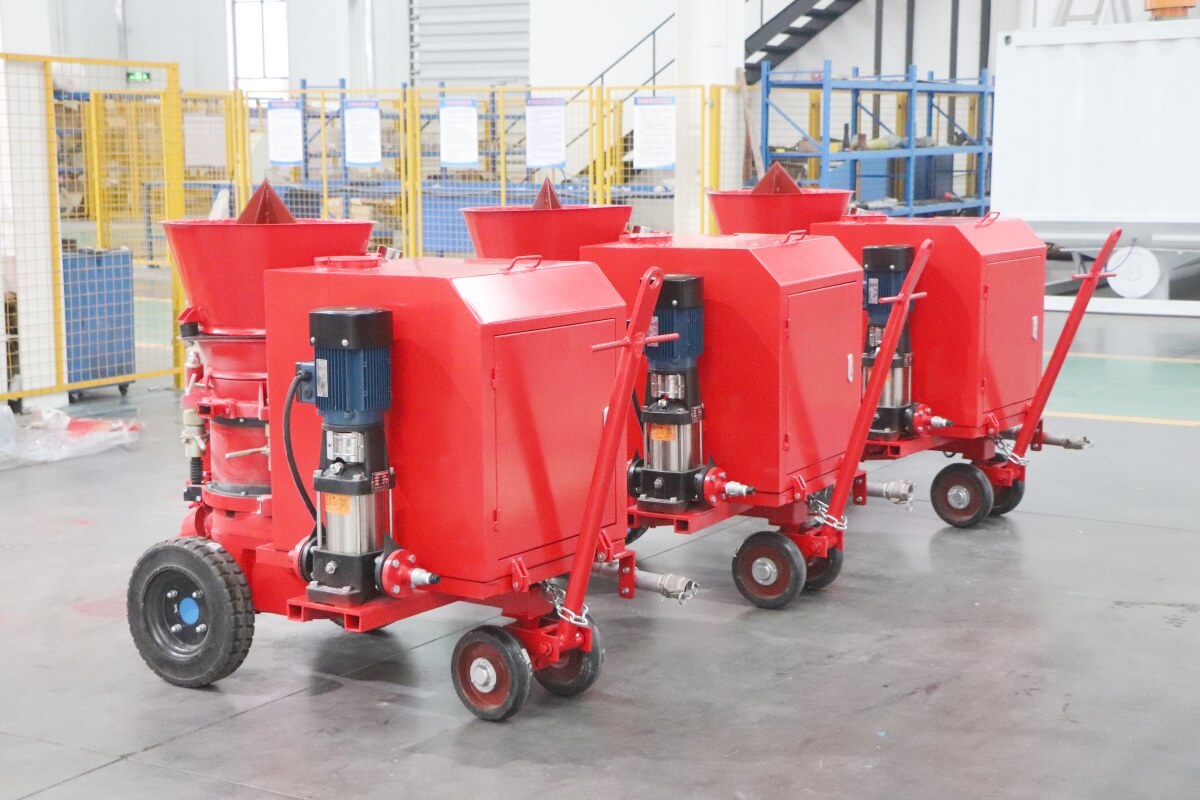

Example image of a dry mix gunning machines:

For a quote or more detailed information about an electric dry mix shotcrete machine, please contact us directly: sales@leadcrete.com
