Customizable grout injection pump with mixer

2025-05-29 11:05:16

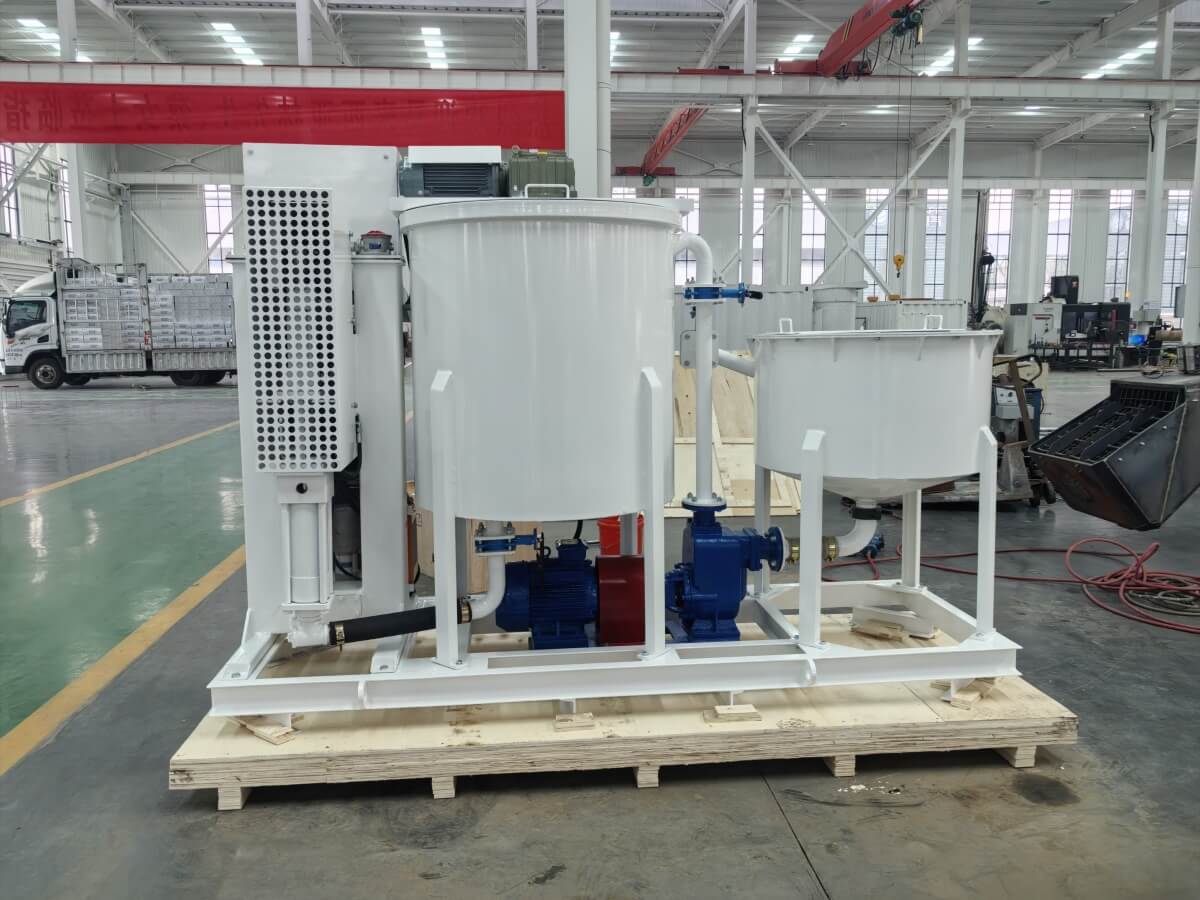

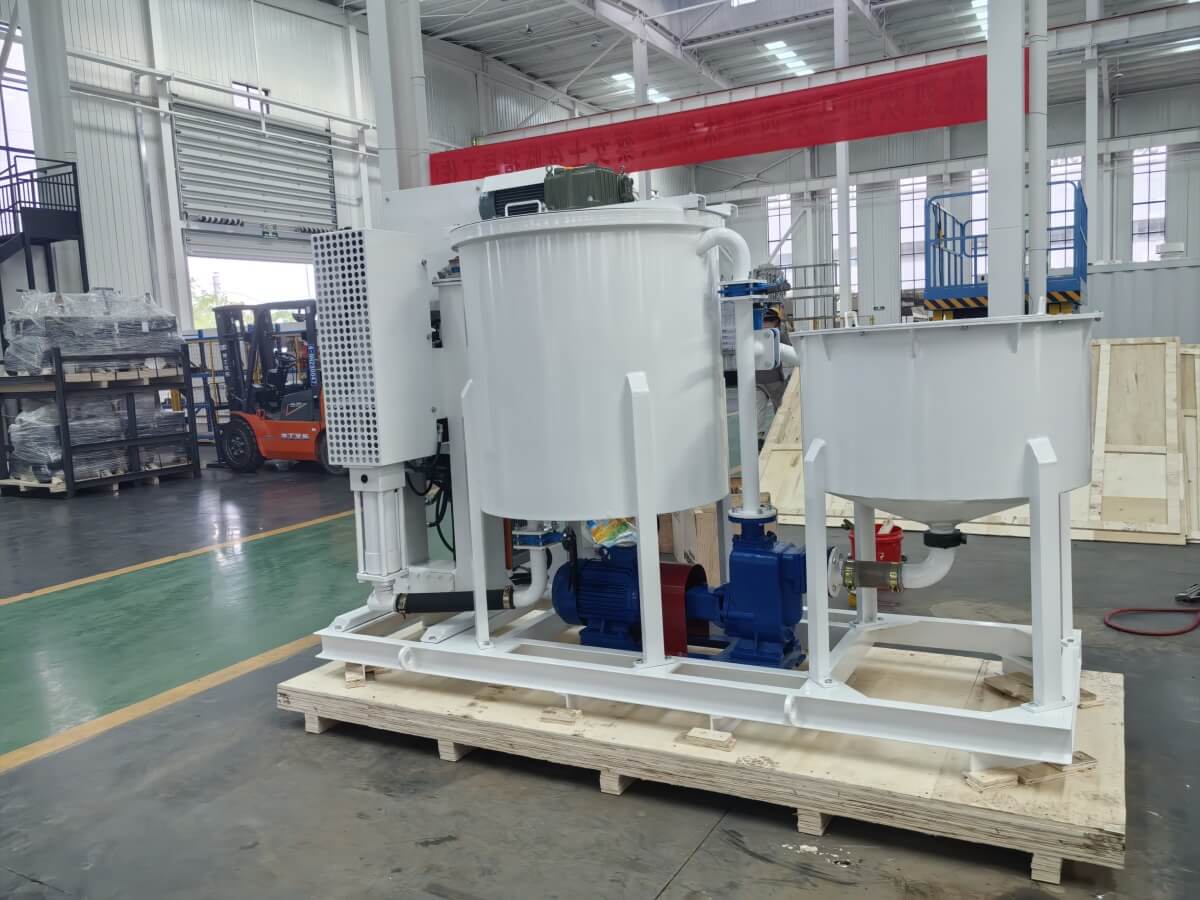

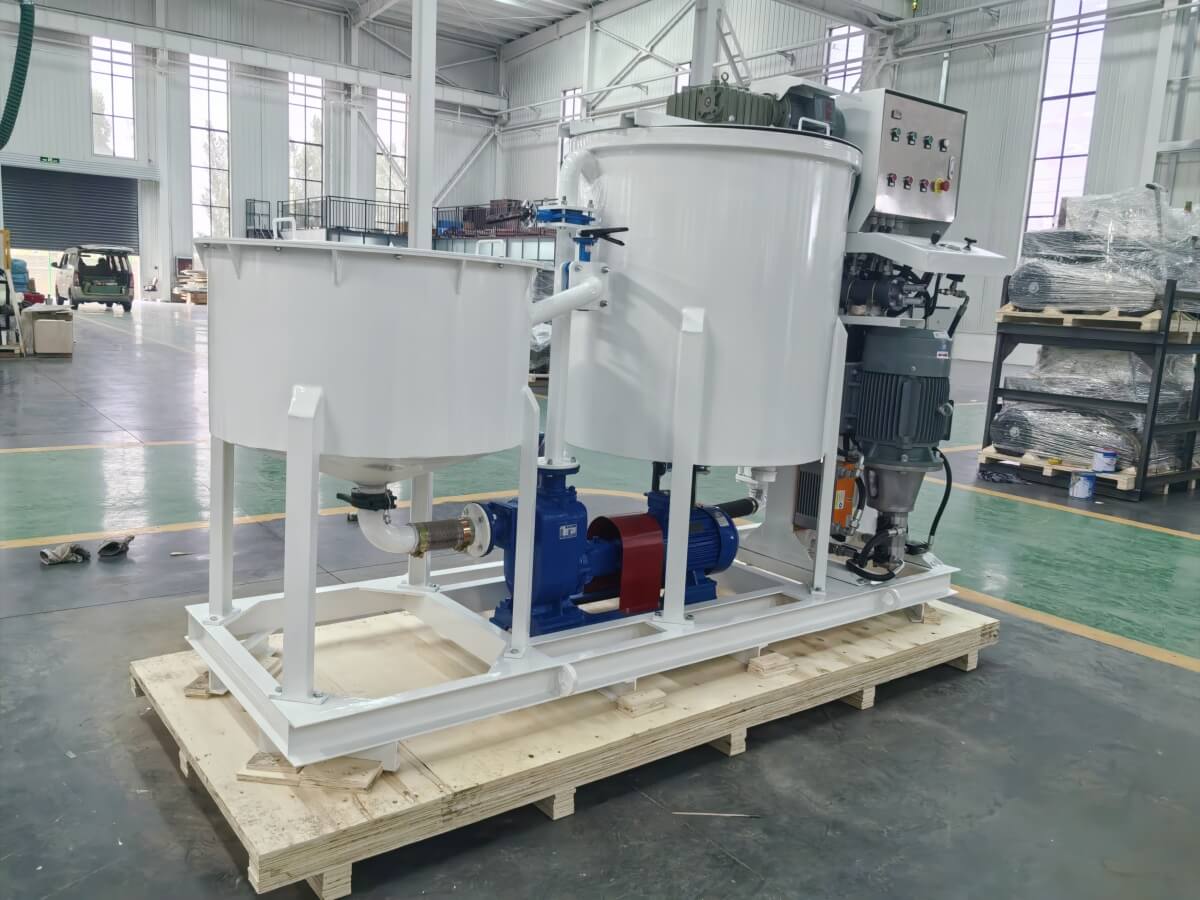

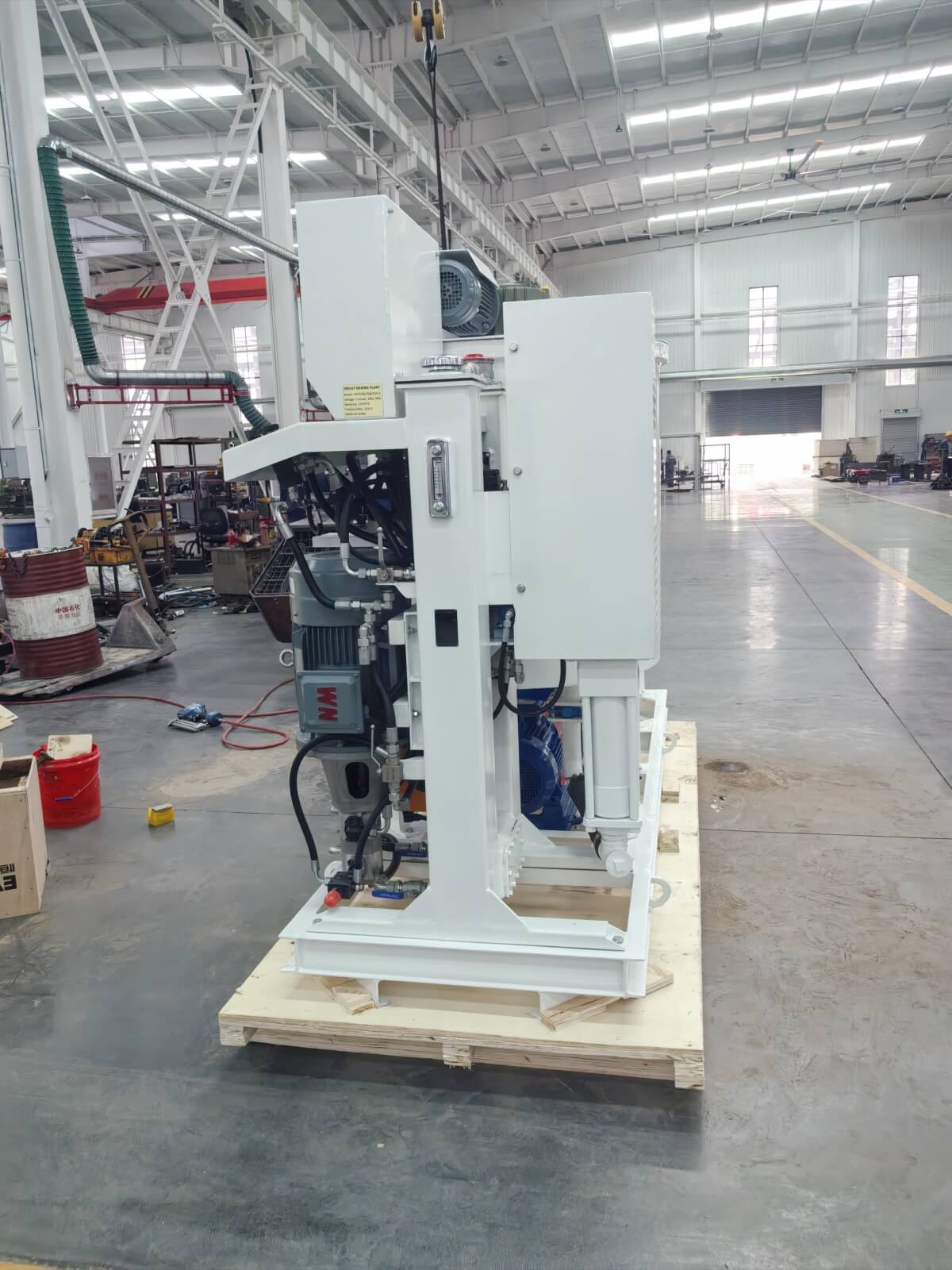

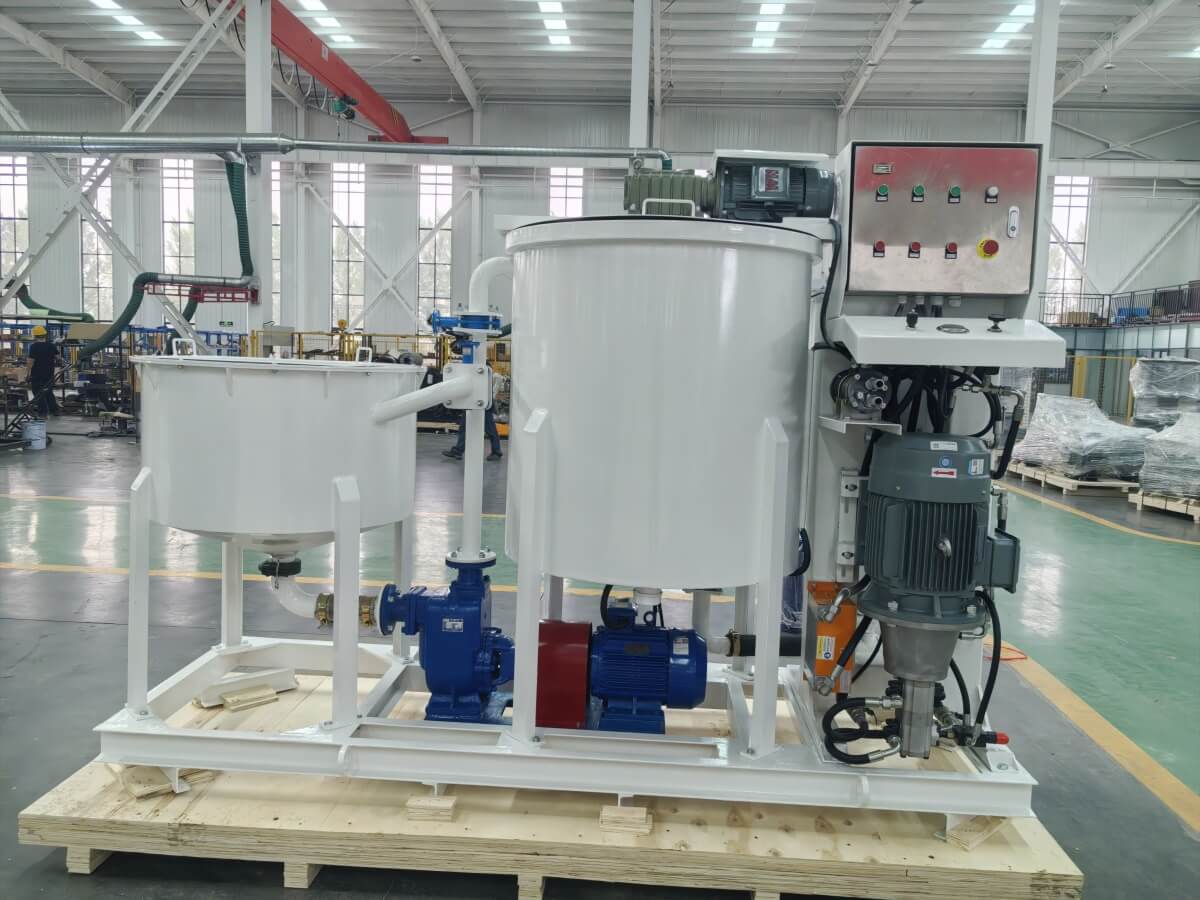

Today, our factory shipped a grouting pump station customized by a Saudi Arabian customer. A customizable grout injection pump with a mixer is a specialized piece of equipment designed for the efficient and precise placement of grout in various construction and renovation projects. This type of pump allows for the customization of its settings to meet specific project requirements, such as adjusting the flow rate, pressure, and mix consistency.

The technical parameters of this customizable grout injection pump with mixer:

Grout injection pump
Output/Pressure	Low pressure:0-75L/min, 0-50bar
Output/Pressure	High Pressure:0-40L/min, 0-100bar
Power	7.5KW
Cement grout mixer
Capacity	250L
Output	1100L/min
Suitable water/cement ratio	≥0.5:1
Motor Power	7.5Kw
Rated Rev.	1450rpm
Cement grout agitator
Capacity	700L
Motor Power	1.5KW
Rated Rev.	35rpm
Dimensions	271011001820mm
Weight	1060kg

We are a professional grouting equipment manufacturer and supplier with more than 20 years of experience in manufacturing and exporting. We can customize various types of grouting pumps, grouting machines and grouting pump stations for customers.

Benefits of customization injection pump with mixer:

1. Tailored Solutions: Customization allows the equipment to be precisely matched to the project's specific needs, ensuring optimal performance and cost-effectiveness.

2. Scalability: The equipment can be designed to grow with the project, whether it's a small-scale repair or a large-scale infrastructure project.

3. Efficiency: Customized features like automated mixing and injection can significantly reduce labor costs and project timelines.

The grout injection pump can be tailored to deliver grout at varying pressures and flow rates, allowing it to be used in a wide range of applications, from low-pressure grouting for soil improvement to high-pressure injection for rock anchoring. Applications of customizable grout pump with mixer:

1. Soil Stabilization: Improving the load-bearing capacity of weak or unstable soils.

2. Foundation Repair: Filling voids or cracks in foundations to prevent settlement or structural damage.

3. Tunnel Lining: Injecting grout to seal gaps or reinforce the tunnel walls.

4. Underground Construction: Stabilizing excavations or creating waterproof barriers.

5. Mining: Supporting underground openings or sealing fractures in rock formations.

When considering a customizable grout injection pump with a mixer, it's essential to evaluate the specific requirements of your project, including the type of grout to be used, the required volume, and the on-site environmental conditions. Consulting with manufacturers or suppliers can also provide valuable insights into which model might best suit your needs. If you have such needs, don't hesitate to get in touch with us directly at the email address: sales@leadcrete.com
