Shotcrete machine used for slope protection project

2019-03-13 15:36:11

Shotcrete machine is used for slope-protection project. Shotcrete machine is divided into dry mix shotcrete machine and wet mix shotcrete machine according to the different spraying process.

Dry mix shotcrete process

In the dry-mix shotcrete process, cement, sand and aggregate are mixed without water, and then placed into shotcrete machine hopper, use compressed air to convey dry material from the machine through the hose to the nozzle where water is added. The water thoroughly wets the other ingredients as the mixture is jetted from the nozzle at high velocity onto the surface to be shotcreted.

Dry mix shotcrete machine application

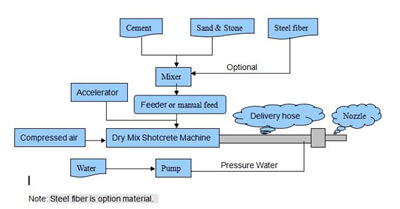

Dry mix shotcrete process

Wet mix shotcrete process

In the wet-mix shotcrete process, all ingredients are first mixed with water to produce concrete in mixer. The concrete is then placed into shotcrete machine hopper. The material is forced through a delivery hose by compressed air to the nozzle where accelerator is added.

wet mix shotcrete machine application

Wet mix shotcrete process

Dry mix shotcrete machine is very suitable for slope-protection, compared with wet shotcrete machine, dry mix shotcrete machine lower construction costs, only need extra air compressor and water pump. Air compressor is mainly used for providing need compressed air, while water pump is used for provide water on the nozzle.


Shotcrete machine for slope-protection project

Dry mix shotcrete machine for slope-protection

https://www.leadcrete.com/shotcrete-machine/dry-mix-shotcrete.html


According to different drive type, we have electric motor, air motor and diesel engine for customers’ option. For some remote working site, there is no electric power supply, so air motor and diesel engine shotcrete machine is very good choice. Dry mix shotcrete machine have four different type, LZ-3 (output 3m3/h, max.aggregate size 10mm), LZ-5 (output 5m3/h, max.aggregate size 15mm), LZ-7 (output 7m3/h, max.aggregate size 15mm), and LZ-9 (output 9m3/h, max.aggregate size 20mm). Customers could choose the suitable model shotcrete machine according to required output and max. aggregate size. More detailed product information, please check our company website:
https://www.leadcrete.com/shotcrete-machine/
