Squeeze concrete pump for sale

2021-06-16 18:03:12

Squeeze concrete pump for sale
Lead Equipment is a professional manufacturer of industrial squeeze concrete pump, we have developed full series of
squeeze concrete pump with tens of model, work pressure from 0.6-3 Mpa, output from 0.01-50m3/h. Leadcrete has a ability to design different specification form squeeze concrete pump according to the requirement of our customers.

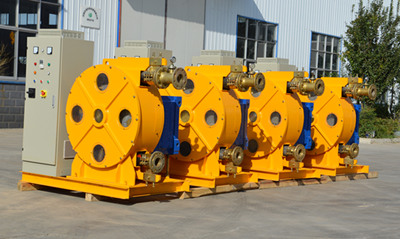

Squeeze concrete pump


Our squeeze concrete hose pump core parts galvanizing process, it can well be avoided in the use course of rust. Usually, our
squeeze pump (peristaltic pump) have two rollers is used to squeeze hose forming vacuum to pump materials. Our customer provided their requirements, the squeeze pump can also be designed with three rollers, the material flow is pumped more continuously.

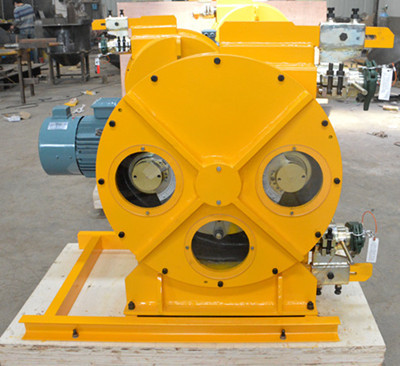

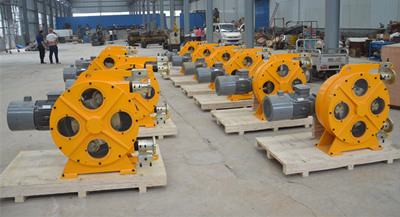

industrial squeeze concrete pump



Pump core

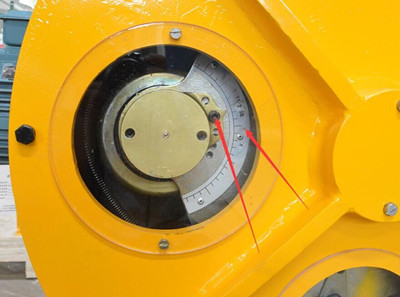

The unique design of our squeeze concrete pump (hose pump) is adding pointer dials, which can adjust the hose gap though observing scale. It makes adjustment become more accurate and intuitive. Besides, it doesn’t appear the case of loose in the use, because it is fixed by bolt.

Squeeze hoes pump details

squeeze pump unique part

Squeeze pump unique part

GH series industrial squeeze concrete pump are mainly applied in distant conveying, grouting and dosing of viscous slurries in construction, mining, food, paper making, ceramic, etc.


industrial squeeze concrete pump

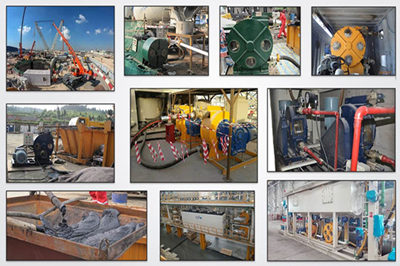

Fields of squeeze concrete pump application

1. Construction

Pumping fine grain concrete, foam concrete and mortar.

2. Water Treatment

Pumping water or waste water.

3. Paper Making

Pumping pulp, color and glues.

4. Food Project

Pumping beer, wine, milk, juice etc.

5. Mining

Conveying of mineral waste residue.

6. Underground Engineering

For TBM, pumping bentonite.

industrial squeeze concrete pump

industrial squeeze concrete pump


How to choose suitable squeeze concrete pump?
Please tell us about following question, we can help you to choose suitable squeeze concrete pump:

1. What is the project with our peristaltic pump, is it for pumping concrete or others?

2. What is the pressure and output you require?

3. What is the local voltage you require, here the voltage 380V, 50HZ, 3phase, is it ok for you?

4. What is max. aggregate size in the slurry?

Contact us for detailed information and price of squeeze concrete pump, sales@leadcrete.com.
