Buy cement mortar spraying machine

2018-06-30 17:26:05

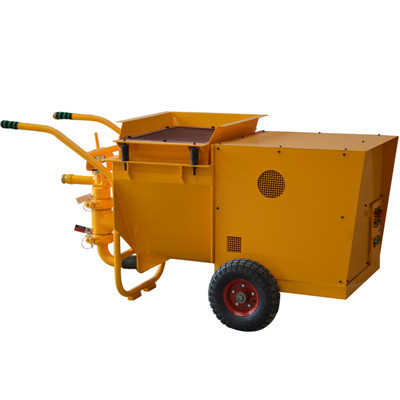

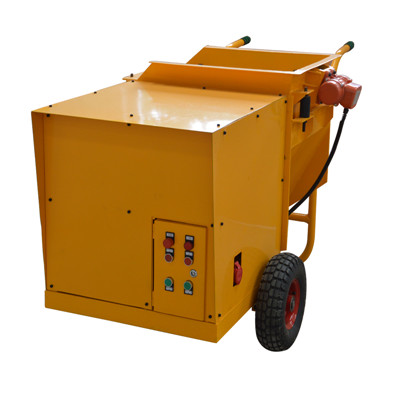

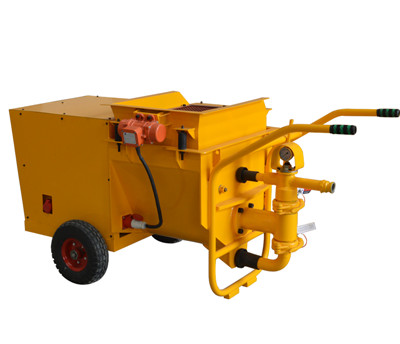

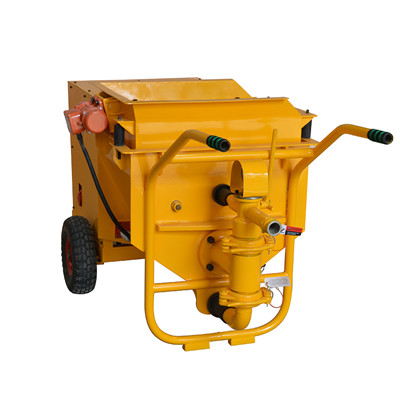

Cement mortar spraying machine is a piston pump with one single cylinder & single acting, mainly is designed for conveying and spraying mortar or plaster. LMP35/30 cement mortar spraying machine is widely been using for mortar spraying, pumping and grouting in tunnel excavation and maintenance, mine engineering, constructing dams, bridges and foundation treatment etc. projects. The pump also has been using for mortar and putty pumping and spraying civil buildings. The pump has compact structure, reliable operation, low failure rate, easy cleaning, convenient maintenance, high pump pressure, etc. It is widely used in tunnel excavation and maintenance, mine engineering, mortar spraying, pumping and grouting in dam construction, and bridges, foundation treatment and other projects. The pump is also used for pumping and spraying civil buildings with mortar and putty.

Cement mortar spraying machine is the most powerful single piston pump with ball valves available in the market. Widely tested in many different conditions, it is extremely strong and reliable for any sort of civil and industrial work. Ideal even for the most difficult site mixes up to 6mm aggregate size, cement mortar spraying machine is mainly used for building inside and outside the wall of cement mortar spraying and external wall insulation materials, refractory spraying and stucco gypsum mortar spraying.

Cement mortar spraying machine features:

1. The mortar spraying machine equipped with special mortar nozzle, making spraying operation more smoothly, continuously and reducing the rebound effectively.

2. V belt and gear transmission, high efficiency, low failure rate;

3. Vdopt special design rubber parts to connect to the feeding and back port, easy to disassemble;

4. The special design of the working valve chamber ensures the mortar flow easily, small resistance, no deposition;

5. The cement mortar spraying machine is single cylinder & single-acting, ball valve, quick clamp connection, operation and cleaning conveniently;

6. The mixing shaft in the hopper is directly linked to the piston rod, thus this shaft is synchronously moved with the said piston rod effectively prevent mortar precipitation;

7. The screen adopts rubber spring with cone bolt installation, convenient disassembly;

If you want to buy cement mortar spraying machine, you can contact us freely, email address: Thanks!
