Small shotcrete machine for the construction site

2025-07-16 16:05:40

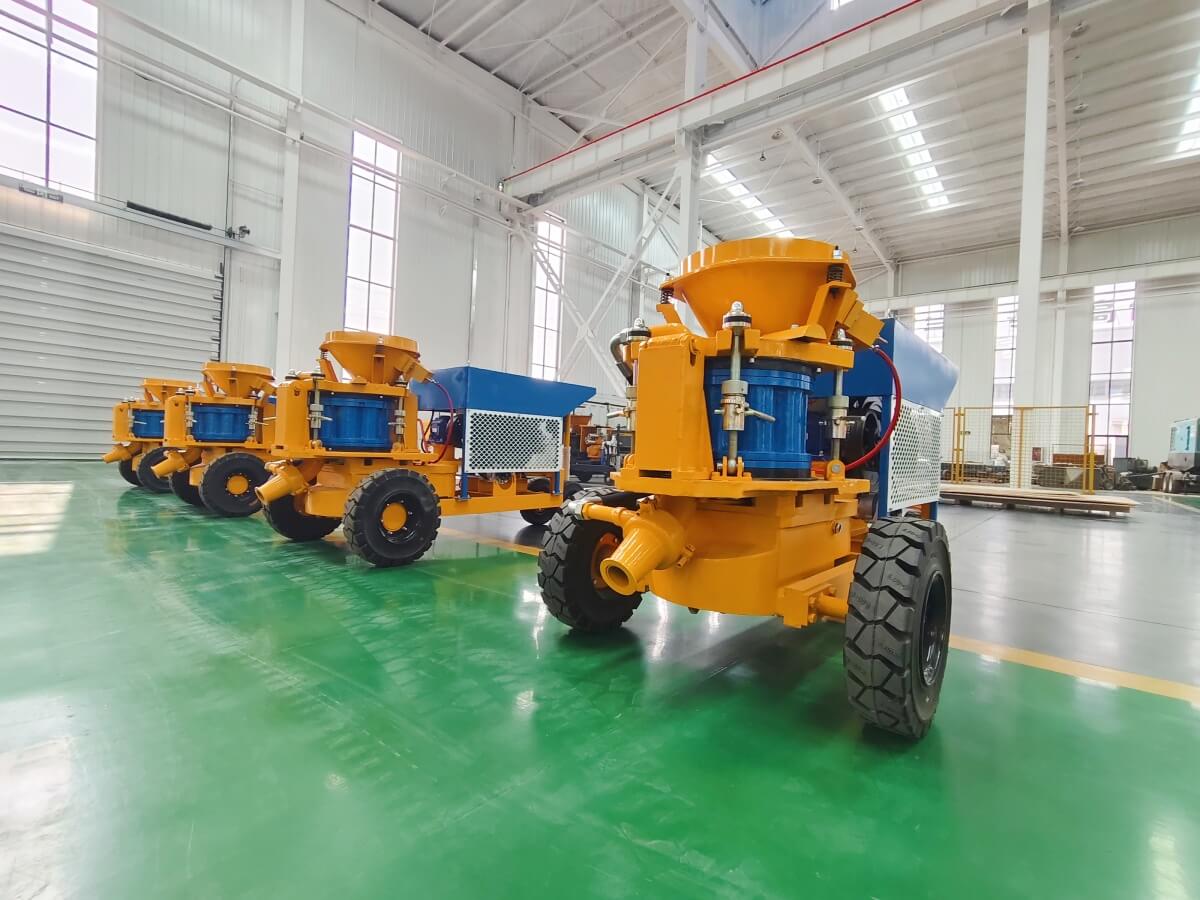

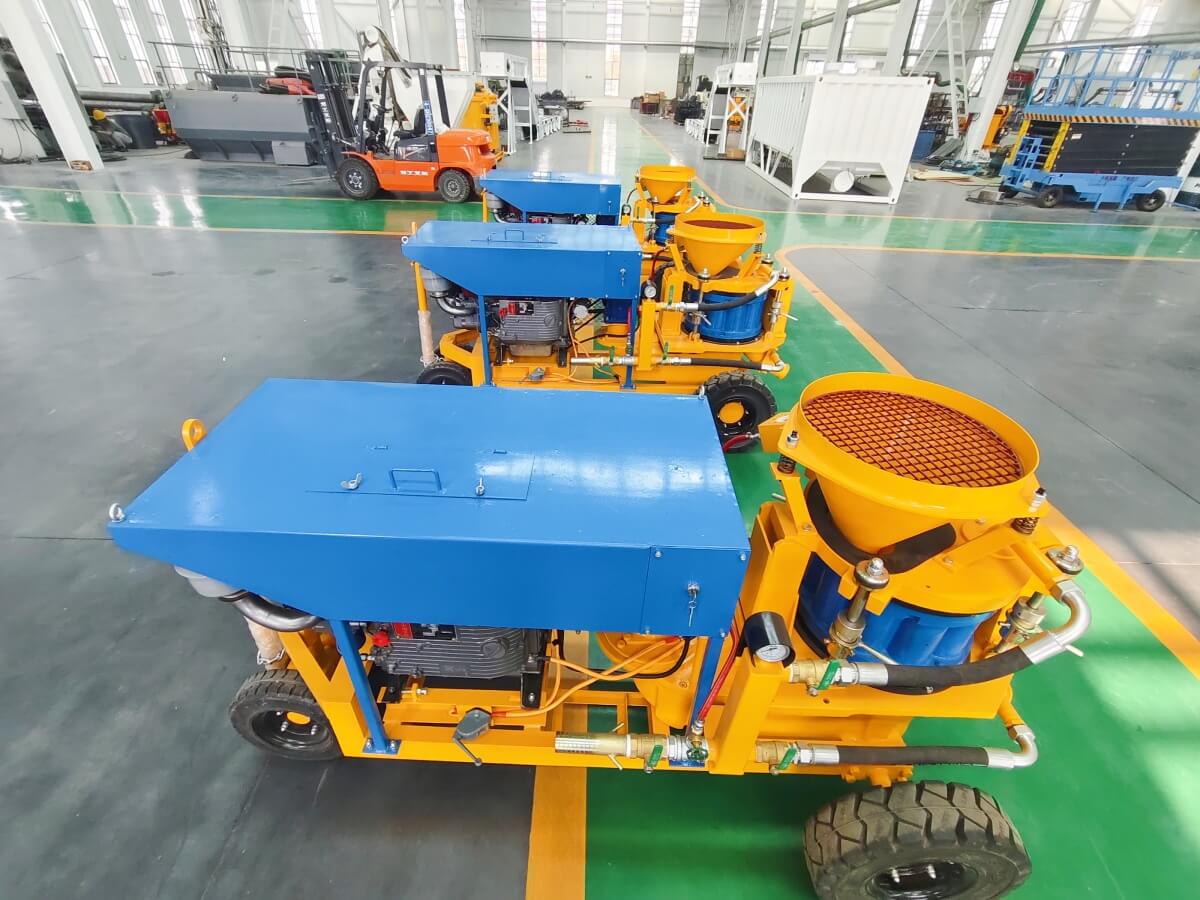

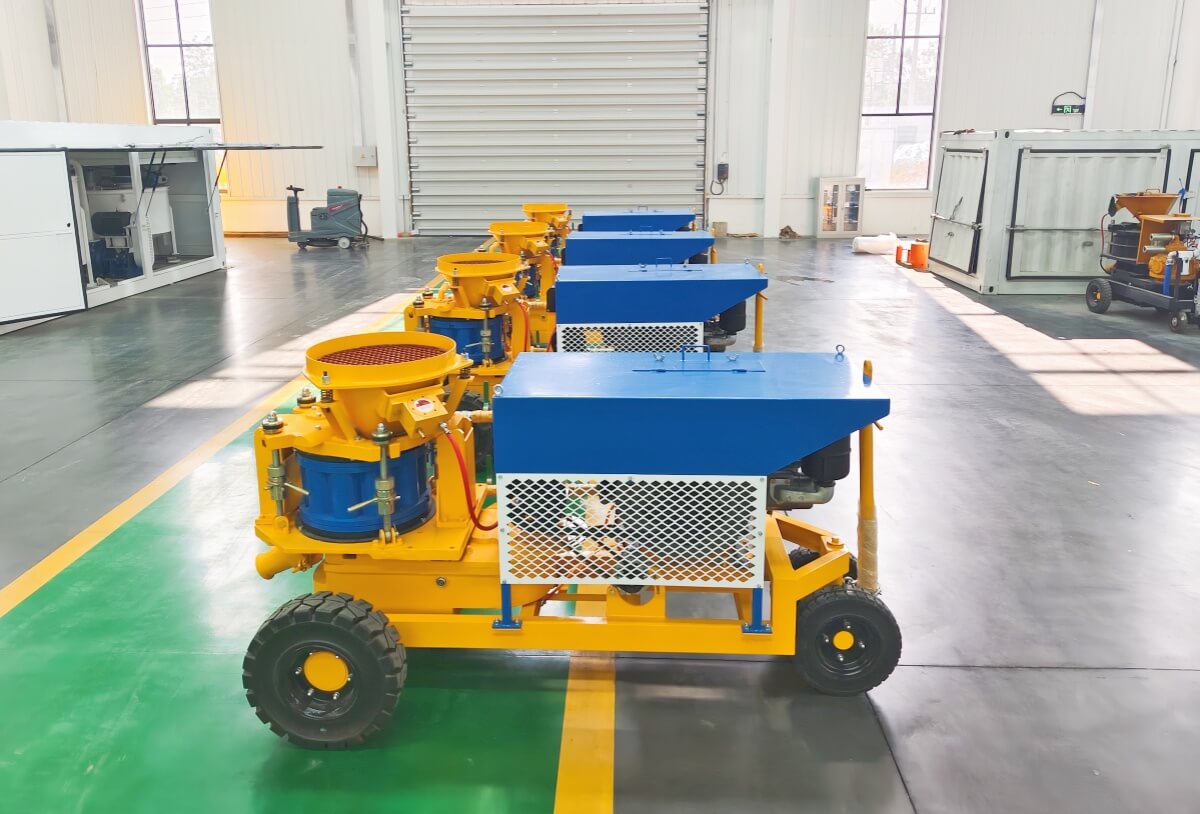

Today, four brand new diesel-powered shotcrete machines were successfully loaded and will be shipped to the Philippines to help the local retaining wall repair project!

A few weeks ago, we received an urgent inquiry from a Philippine customer, who clearly needed a small diesel-powered shotcrete machine to repair the retaining wall base slab washed by water. The customer has high requirements for equipment performance and applicability, and looks forward to efficiently solving construction problems.

After the business team's quick response and professional communication, we customized solutions based on customer needs, introduced product advantages and after-sales services in detail, and finally successfully won the order for four shotcrete machines!

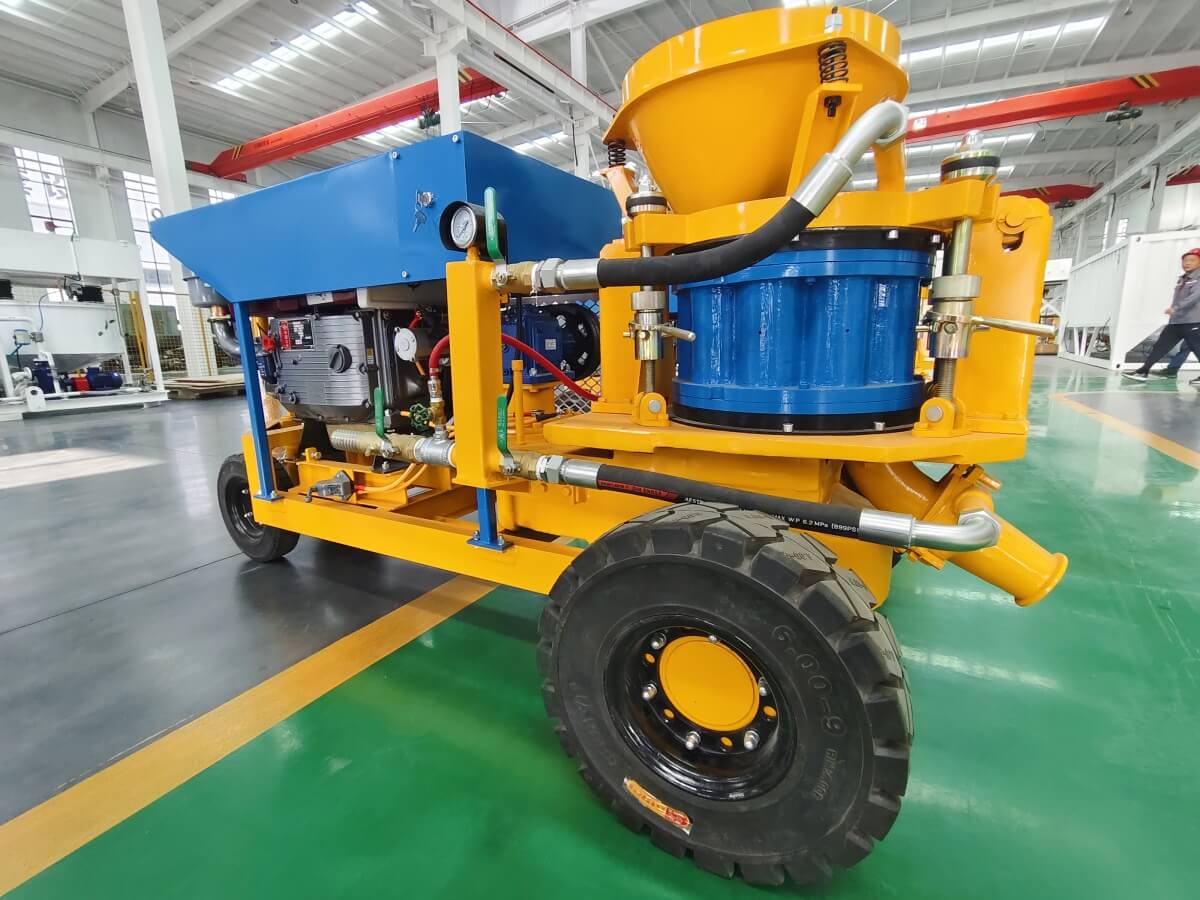

LZ-9 Diesel driven small shotcrete machine parameters:

Output Capacity	6-9m3 /h
Max. Horizontal Conveying Distance	200m
Suitable Mix Ratio(Cement/Sand)	≤1:4~5
Max. Aggregate Size	Dia.20 mm
Conveying Hose Inner Diameter	Dia.64 mm
Conveying Pressure	0.2-0.4MPa(29-58PSI)
Air Consumption	10~12m3/min(357-430CFM)
Material Charging Height	1.1m
Rotor Speed	7.5-11r/min
Diesel Engine	20hp,2200rpm, Radiator Cooling
Diesel Engine Starting	Electric start
Clutch Type in Diesel Engine	Automatic Clutch
Air Vibrator	OR100,Oli
Overall Dimension(length×width×height)	2.66×1.11×1.50m
Net Weight	950kg

Advantages of small shotcrete machine:

Powerful power: Diesel engines provide stable power, adapting to high load and continuous operation.

High construction efficiency: Fast spraying speed can shorten construction period and reduce labor costs.

Material adaptability: Dry, wet or mixed materials can be sprayed to meet different engineering needs.

High flexibility: Easy to move, suitable for decentralized or temporary projects.

Typical application cases of small dry mix shotcrete machine:

Coal mine tunnel support: Sprayed concrete forms a 3-5cm thick support layer, replacing traditional wooden supports to improve safety.

Highway slope protection: Spraying vegetation concrete, taking into account ecological restoration and engineering protection.

Initial support of subway tunnels: Cooperate with anchor rods and steel frames to form a composite support system to ensure excavation safety.

Diesel-powered spraying machines have become indispensable construction equipment in mining, tunneling, water conservancy, transportation and other fields due to their high efficiency and flexibility, especially in complex environments or emergency scenarios.

This shipment is not only a recognition of our product quality, but also a trust in "Made in China" by the international market. In the future, we will continue to contribute to global infrastructure with high-quality equipment and services!
