pnumatic refractory gunite machine to India

2017-02-03 21:48:49

We are a professional refractory gunite machine manufacturer. We have now developed pnumatic refractory gunite machine and electric refractory gunite machine.

Refractory gunite machine is specifically designed for refractory dry-mix shotcrete applications, as well as for concrete shotcrete application. With this refractory gunite machine, you can get low dust and high performance spraying flow in nozzle.


Specification   Electric refractory gunite machine Pnumatic refractory gunite machine
Rated Output 1-3m3 /h (2-6 ton/h)  1-3m3 /h (2-6 ton/h)
Max. Horizontal Conveying Distance 200m 200m
Max. Aggregate Size Φ10 mm Φ10 mm
Conveying Hose Inner Diameter 38mm 38mm
Operating air Pressure 0.2-0.4MPa(29-58PSI) 0.2-0.4MPa(29-58PSI)
Air Consumption 5~6m3/min 10-11m3/min
Engine 4kw(electric motor 3 phase380V50Hz) 4kw (air motor)
Material Charging Height 1.1m 1.1m
Rotor Speed 13.2r/min 13.2r/min
Overall Dimension(L×W×H) 1.13×0.54×1.1m 1.13×0.54×1.1m
Weight 430kg   430kg

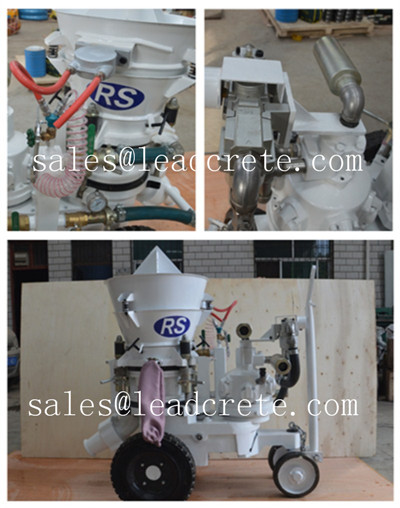

Our pnumatic refractory gunite machine  to India:


pnumatic refractory shotcrete machine  to India
