Factory direct sale customized peristaltic hose pump

2021-10-12 13:46:32

Factory direct sale customized peristaltic hose pump
Factory direct sale customized peristaltic hose pump mainly used in following field: Construction, pharmacy, textile mill, dye making, water treatment, paper making, mining, ceramic, brewery and beverage, underground engineering, etc. It's perfect to pump corrosive, abrasives, shear sensitive fluids, high viscosity fluids, high density fluids.

Factory direct sale customized peristaltic hose pump


A peristaltic pump is like squeezing a hose filled with fluid with your fingers, and moves forward as your fingers slide the fluid in the tube forward. The peristaltic pump is also based on this principle, but the finger is replaced by a roller. The fluid is pumped by alternately squeezing and releasing the elastic delivery hose of the pump. Just like squeezing a hose with two fingers, as the fingers move, negative pressure is formed in the tube, and the liquid flows along with it.

Lead Equipment Co., Ltd. is a manufacturer specializing in the production of peristaltic pump. Our peristaltic hose pumps are factory direct sale. And we have peristaltic hose pumps with different working pressure and output. The working pressure ranges from 10bar to 26bar, and the output ranges from 14m3/h to 54m3/h.

Factory direct sale customized peristaltic hose pump

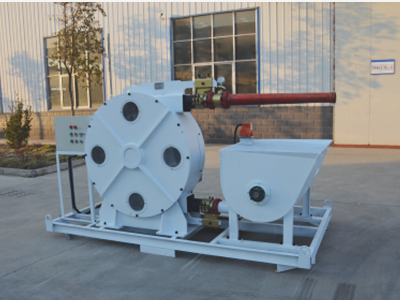

We have three types of peristaltic hose pump with hopper.
The LCP15H series of peristaltic hose pump have two drive modes. LCP15H-E is driven by an electric engine with a working pressure of 3Mpa, the output of high abrasion resistance peristaltic hose pump is 15m3/h.
LCP15H-D is a diesel engine with a working pressure of 2.5Mpa, the output of the peristaltic hose pump is 15m3/h, too.

Factory direct sale customized peristaltic hose pump


LCP20H-H peristaltic hose pump is designed on the basis of squeeze pump, it can be used for pumping lightweight foam concrete, mortar and refractory materials. Hose pump working pressure is 25bar, its max output is 20m3/h, and its hopper capacity is 400L.

Factory direct sale customized peristaltic hose pump


LCP40H-E peristaltic hose pump is driven by electric engine, and it is equipped with soft start, which start the switch smoothly and protect the electric engine of hose pump. Hose pump working pressure is 25bar, its max output is 45m3/h, its hopper capacity is also 400L, and its power unite are respectively 45Kw, 380V, 50Hz.

Factory direct sale customized peristaltic hose pump


In addition, we have other types of durable mud peristaltic pump. Such as:
LH76-915B peristaltic pump working pressure is 10bar, its max output is 20m3/h, and its power unite are respectively 18.5Kw, 380V, 50Hz.

Factory direct sale customized peristaltic hose pump
LH100-915B peristaltic pump working pressure is 26bar, its max output is 30m3/h, and its motor power is 45Kw.

Factory direct sale customized peristaltic hose pump


If our customers have any special requirements, we can customize peristaltic hose pump for them. The driving engine of the peristaltic hose pump, working pressure, displacement, extruded tube material, etc., these all can be customized according to your needs.


Factory direct sale customized peristaltic hose pump


Maintenance of peristaltic hose pump:
The hose should be replaced in time according to the frequency of use of the specific pump during use. When the hose breaks and the liquid seeps from the hose and flows into the roller of the pump head, the pump head should be disassembled and cleaned in time to avoid weathering and solidification in the gap of the roller to avoid jamming of the pump head. If the liquid is highly corrosive, please choose a corrosion-resistant hose to avoid damage to the pump.

If you are interested in our peristaltic hose pump, we will recommend a suitable peristaltic hose pump for you. Please help us to confirm the following points:
1. What is the project with our hose pump, is it for pumping concrete or others?
2. What is the pressure and output do you need?
3. What is the local voltage do you need? here the voltage 380V, 50HZ, is it OK for you?
4. What is Max aggregate size in the slurry?
You can send your requirements to our email, email address: sales@leadcrete.com.
