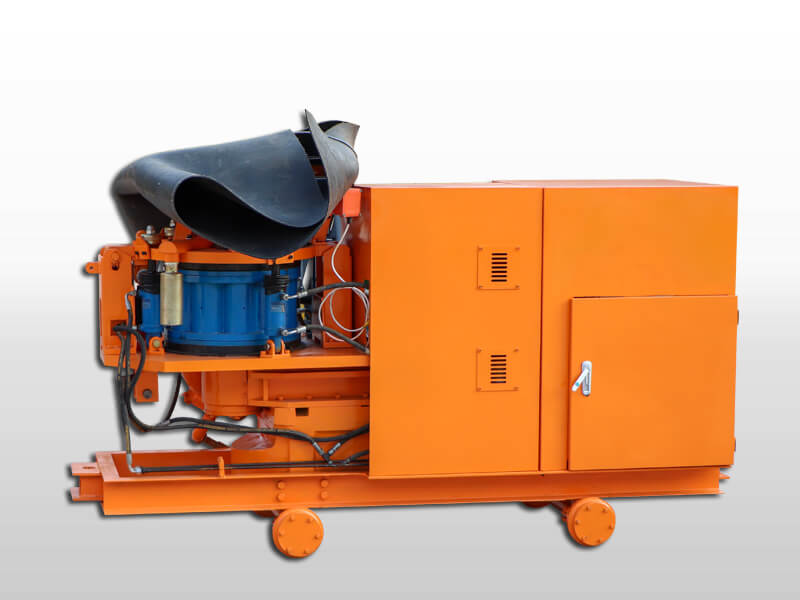

LZ-9E/S Shotcrete system for tunnel boring machine

  • Type: LZ-9E/S
  • Rotor Volume: 12.9L
  • Max. Rotor Speed: 12.6r/min
  • Max. Output: 9.5m³/h
  • Max. Horizontal Conveying Distance : 200m
  • Max. Aggregate Size: Φ20 mm

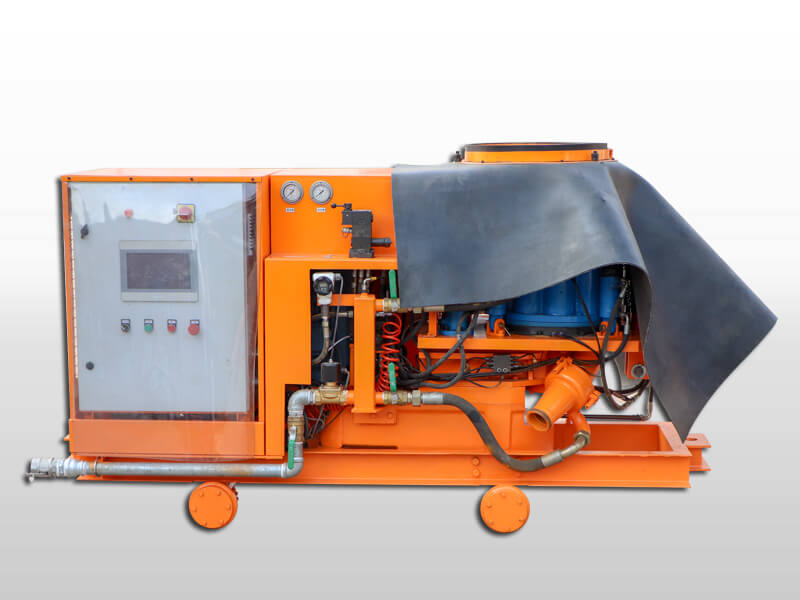

  • tunnel boring machine shotcrete system

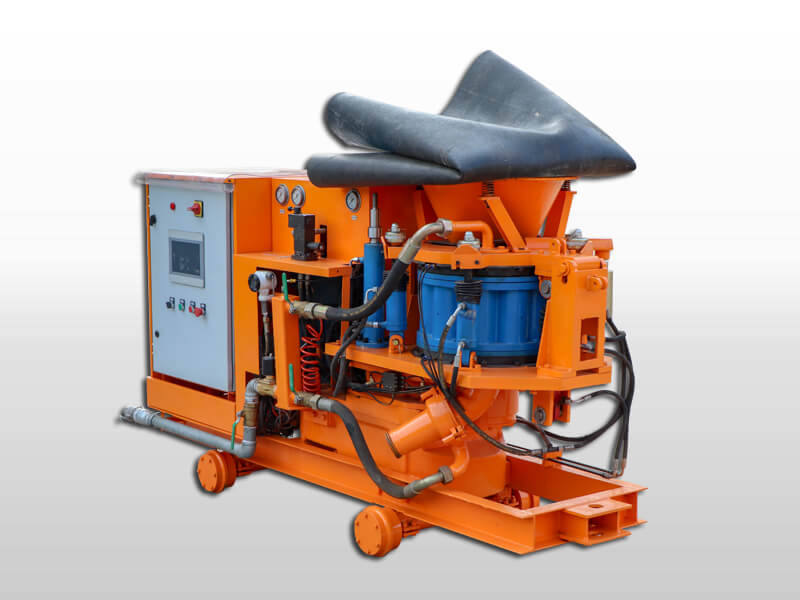

  • shotcrete machine for tbm

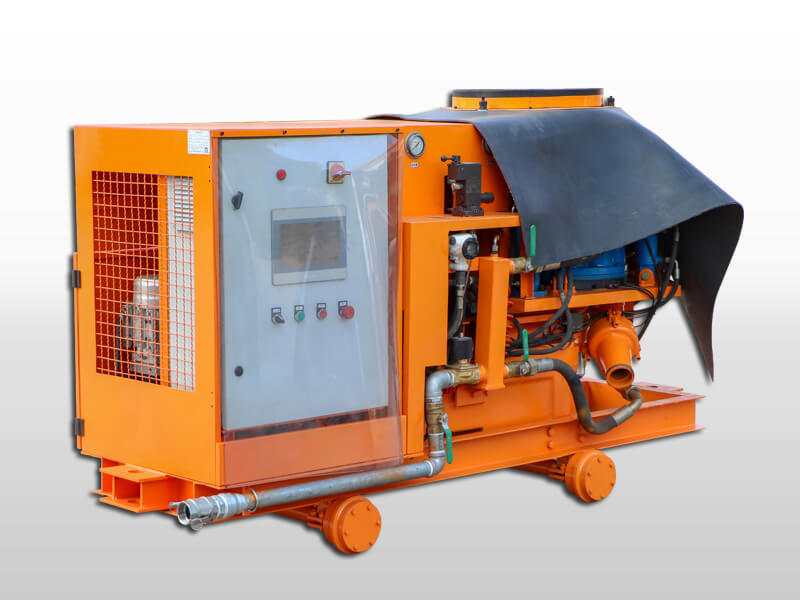

  • automation shotcrete machine for tbm
  • shotcrete machine for tunnel boring machine
Grouting Plant
Grout Mixer and Agitator
Grout Pump
HydroSeeders
Refractory Gunite/Mixer
Shotcrete Machine
Industrial Peristaltic Pump
Foam Concrete Machine
Concrete Mixer
Concrete Pump
Plaster Machine
hydraulic pump station
Customized Service

Phone/Wechat

+86-18538591025

Whatsapp

+86-18538591025

Email

sales@leadcrete.com

skype:

machine.machine6

ADDRESS

Xisihuan Ring-Road East, Tielu, Xiliu Lake sub-district, Zhongyuan District, Zhengzhou, Henan China

■Introduction

 Description:

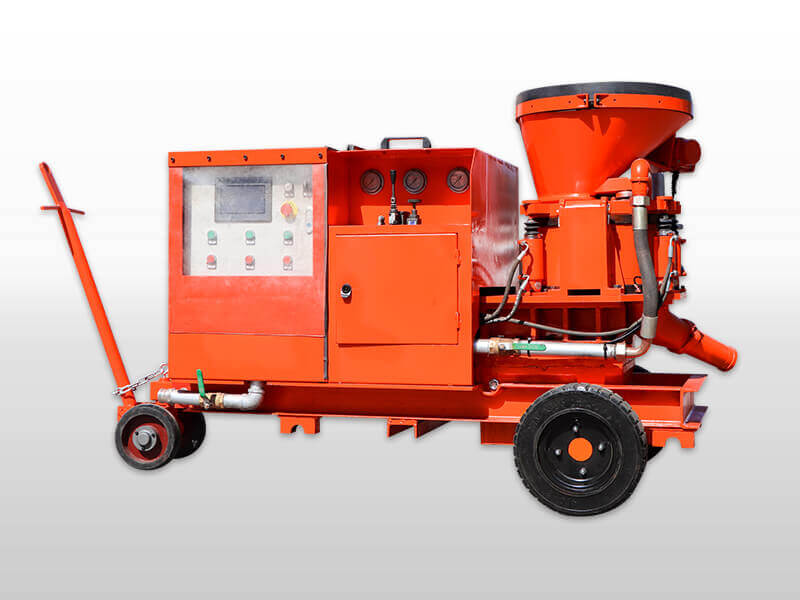

LZ-9E/S Shotcrete system for tunnel boring machine is a multifunctional rotor type machine for wet and dry spraying and conveying, with Max. Output 9.5m³/h. The materials that can be transported and sprayed with this kind of machine are mainly as follows: concrete, gunite, mortar, refractory, masses, sand, fine gravel, and crushed stone.

chamber rotor type wet and dry spraying concrete machine

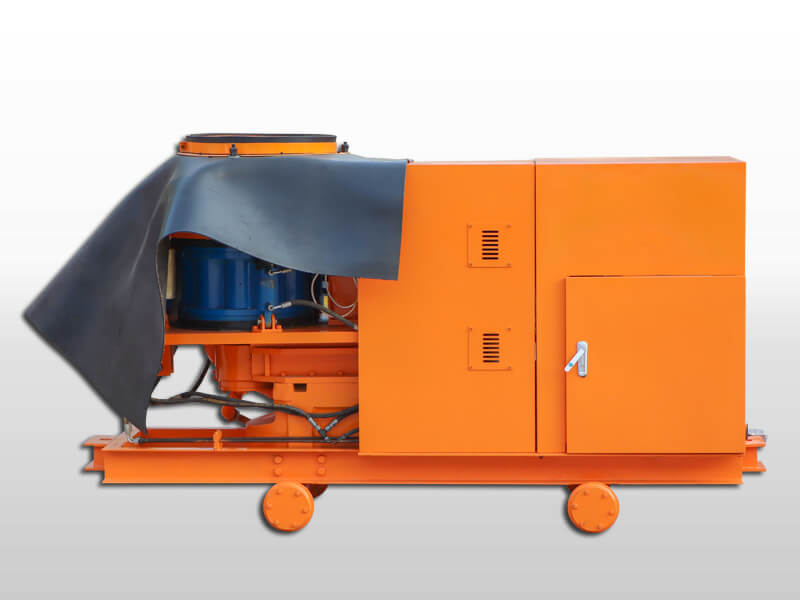

concrete spraying machine for tunnel boring machine


dry wet shotcrete machine for sale


Shotcrete Machine  Dry and Wet

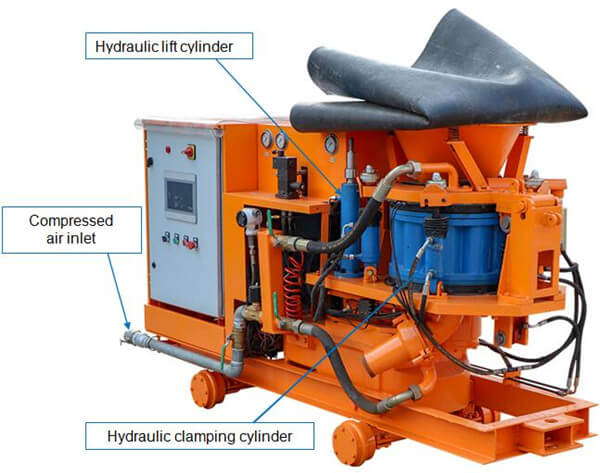

LZ-9E/S shotcrete machine for TBM compared with the traditional spraying and conveying machine, it has several advantages: hydraulic floating compression (pressure automatic compensation after the rubber sealing plate is worn), hydraulic lifting rotor body, automatic anti-blocking function, automatic lubrication, the local control mode and remote control function with PLC control system, which greatly enhance the degree of automation of the machine and increase the machine efficiency. Therefore, this machine is installed into the TBM for the pea gravel spraying, as well as it is widely used in tunnels’ projects, slopes’ consolidations, channels’ restorations etc.

spraying fine gravel and crushed stone machine

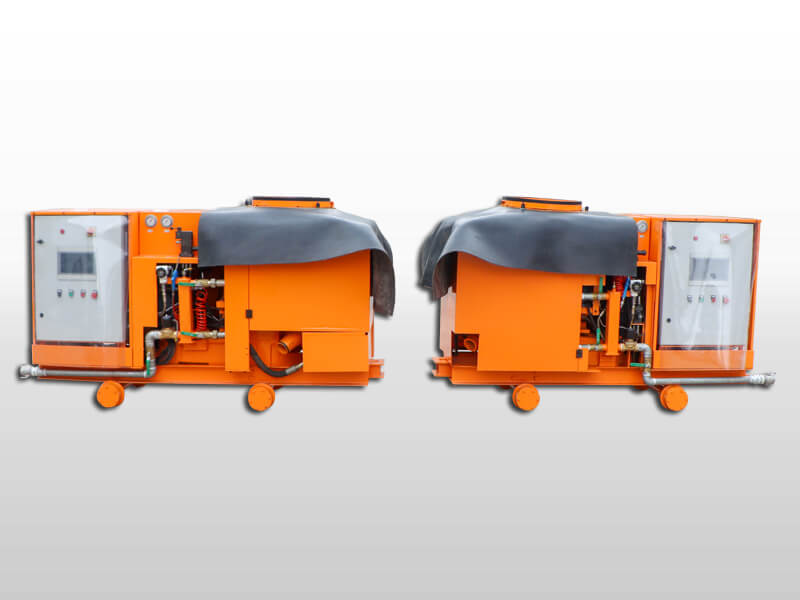

TBM shotcrete machine


TBM shotcrete system


wet and dry spraying and conveying concrete machine


 Application:

LZ-9E/S automation shotcrete machine for TBM is widely adopted for the pneumatic conveyance of pea-gravel when tunnelling with a TBM. The shotcrete machine machine’s flexibility both in terms of workable mixes and outputs ranges, allows a very wide field of applications. Therefore, this automation shotcrete machine for TBM is installed into the TBM for the pea gravel spraying, as well as it is widely used in mines, tunnels, culverts, subways, hydropower projects, underground projects, etc.

China Railway TBM used concrete spraying machine for tunnel lining


concrete spraying machine for China Railway TBM


Electric Concrete Pump for tunnel lining


shotcrete concrete pump for China Railway TBM


LZ-9E/S Shotcrete system for backfilling pea gravel  installation on TBM:

Shotcrete system for backfilling pea gravel  installation on TBM


 Features:

LZ-9E/S Media is a straight chamber rotor type wet and dry spraying and conveying machine.

TBM straight chamber rotor type wet and dry shotcrete machine


1. Sector rigid wear plate and rotor
2. High quality upper and lower rubber seal plates

TBM wet and dry mix concrete spraying conveying machine

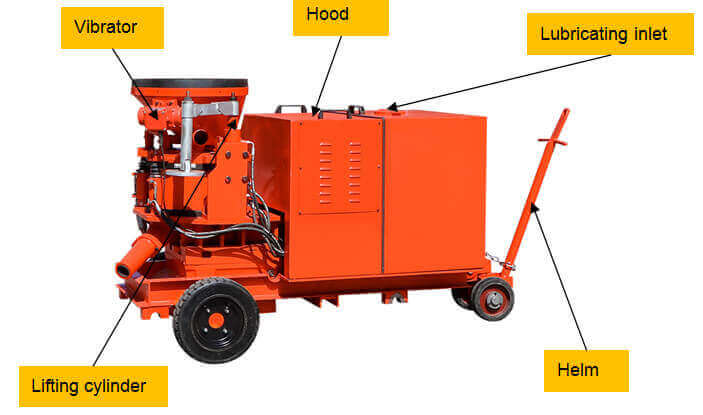

3. Wheels
Heavy-duty solid wheels.
Steerable rear wheels.
Solid wheels can be replaced with track wheels as needed.

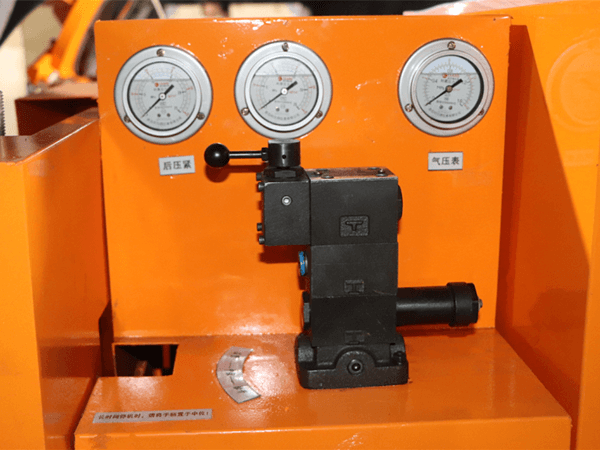

4. Hydraulic system
Hydraulic floating compression (pressure automatic compensation after the rubber sealing plate is worn).

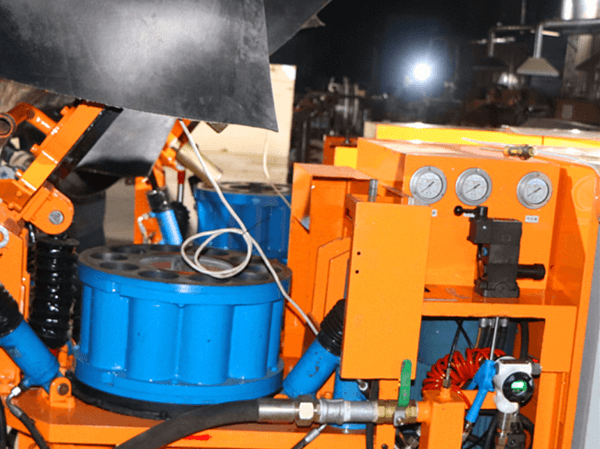

Hydraulic lifting rotor body.

TBM dry and wet mix shotcrete machine

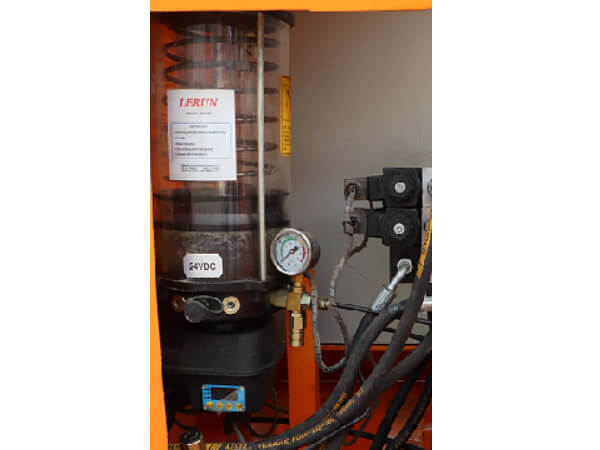

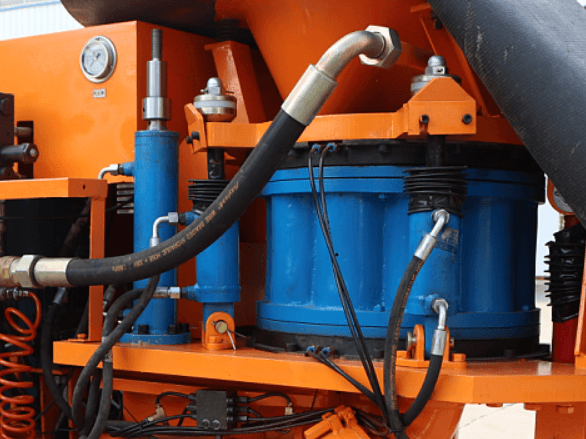

5. Automatic lubrication
Automatic lubrication for upper and lower seal plates.

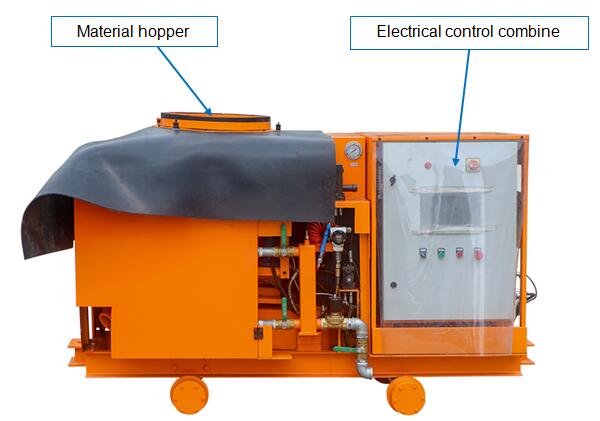

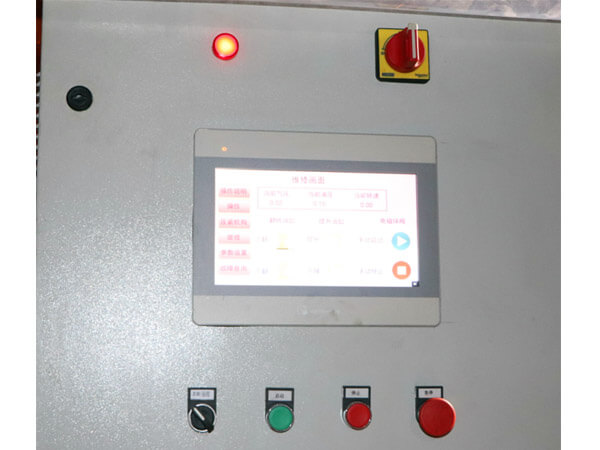

6. Control system
Variable output with variable-frequency drive.
PLC integrated machine control.
Locally control mode and remote control function.
7. Intelligent anti-clogging pipe system

■Product Details
wear disk

Wear disk

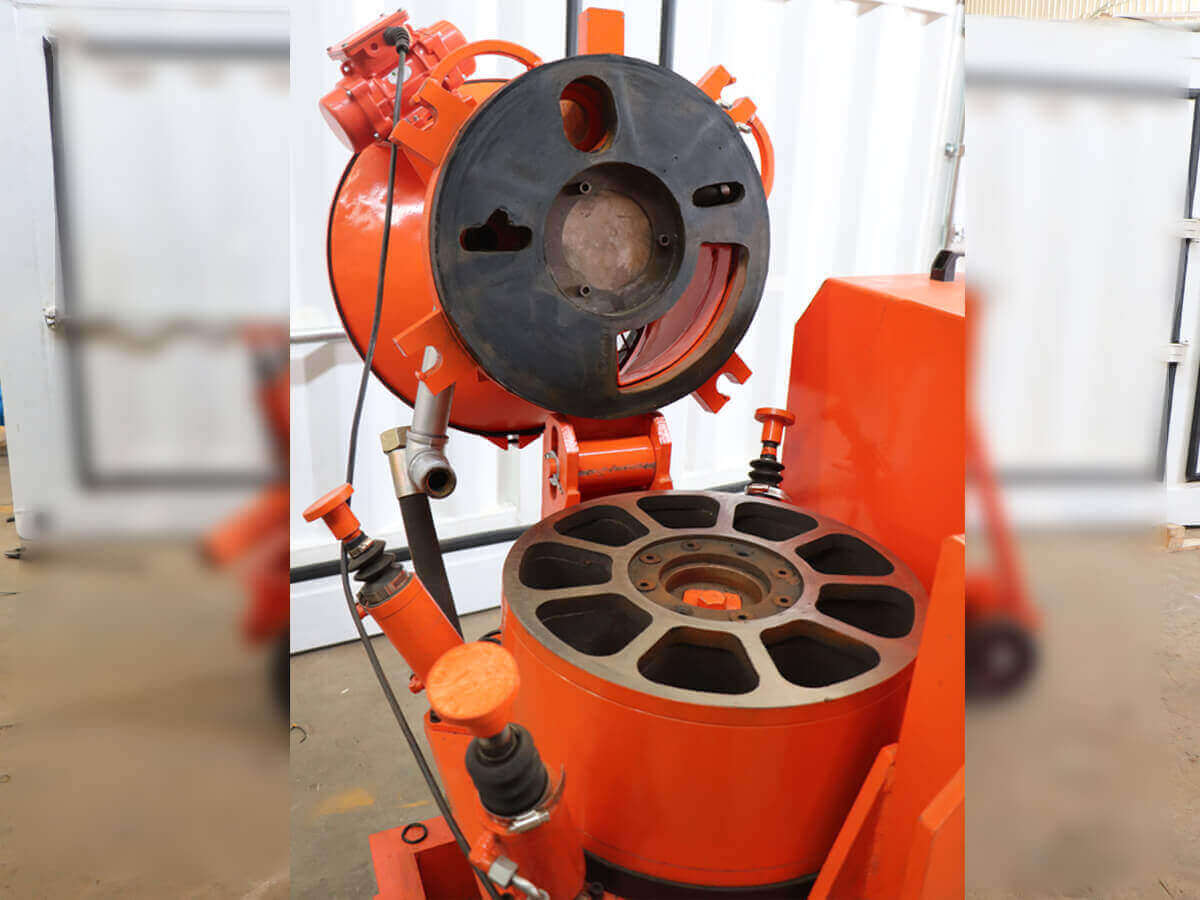

upper rubber seal plate and wear disk

Upper rubber seal plate and wear disk

tipping cylinder

Tipping cylinder

rotor

Rotor

distributor

Distributor

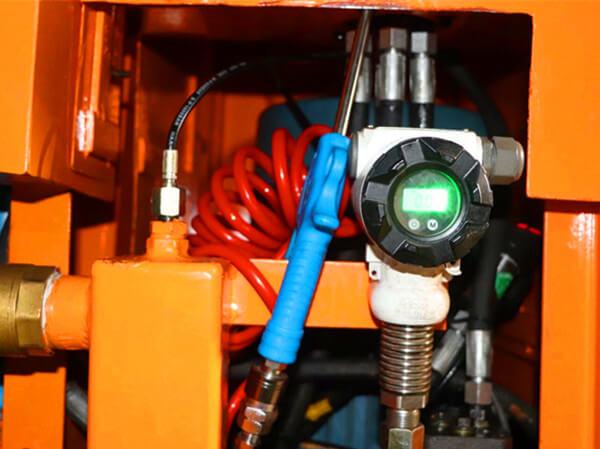

details of shotcrete system for tunnel boring machine

Details of shotcrete system for tunnel boring machine

■Technical Parameters

Specification (with Electric motor drive):

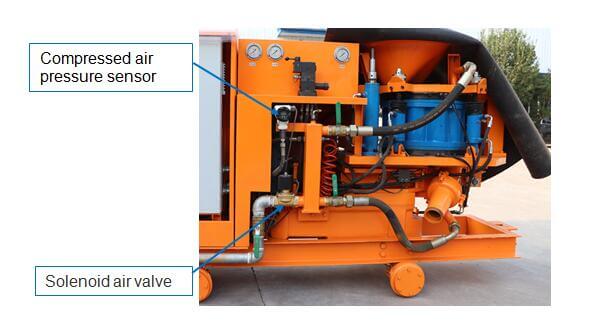

1. Automatically clean delivery line blockage: PLC+VFD+Air Pressure Sensor.
2. Sector hole to replace the circle hole in the rotor to improve the volume of the rotor and to decrease friction area, then with the same output, the rotor speed will be lower to improve the work life of the rubber sealing plate and keep the motor power lower.
3. Hydraulic floating compression (pressure automatic compensation after the rubber sealing plate is worn).
4. To add an automatic lubricator to the rubber seal plate to make the work life of worn parts longer and make the motor power lower.
5. Intelligent anti-clogging pipe system.

Rotor Volume

12.9L

Max. Rotor Speed

12.6r/min

Max. Output ①

9.5m³/h

Max. Horizontal Conveying Distance

200m

Max. Aggregate Size

Φ20 mm

Conveying Hose Inner Diameter

64mm

Operating Air Pressure

0.2-0.4MPa(29-58PSI)

Air Consumption

12-14m³/min(215-250CFM)

Rotor Motor

Power

7.5kW

Voltage

3 phase, 380V, 50Hz

Hydraulic System

Power

0.37Kw

Voltage

3 phase, 380V, 50Hz

Automatic Lubrication

Volume

4L

Power

24V, 50w

Vibration Motor

Power

0.04Kw

Voltage

3 phase, 380V, 50Hz

Dimension(L×W×H) (heavy-duty solid wheels)

2200×960×1300mm

Weight(heavy-duty solid wheels)

1425kg

①Data is based on safe filling and complete emptying of the cylinder.

We could also customize according to your demands.
