Your Position: Home > Products > Grouting Equipment

Dual slurry grouting injection pump

  • Model:LSYB70/4
  • Output on high gear:70L/min
  • Rated pressure on high gear:2Mpa
  • Output on low gear:42L/min
  • Rated pressure on low gear:4Mpa
  • Motor brand:Siemens

  • WSS grouting technology pump
  • double slurry grouting pump
  • two cylinder dual liquid grout pump
  • double slurry grouting pump
  • dual slurry grouting injection pumps
  • grouting injection pump
Shotcrete Machine
Grouting Equipment
Industrial Peristaltic Pump
Plaster Machine
Soil Spraying Machine
Concrete Pump
hydraulic pump station
Foam Concrete Machine

TEL

86-371-63902781

skype:

shotcreter

Email

sales@leadcrete.com

FAX

86-371-63902781

ADDRESS

Xisihuan Ring-Road East, Tielu, Xiliu Lake sub-district, Zhongyuan District, Zhengzhou, Henan China

■Introduction

 Description:

·    LSYB70/4 is a dual slurry grouting injection pump, the pump has two separate cylinder to avoid the
slurry and sodium silicate to mix inside the cylinder, then the two liquid will be outlet by two hose
and mixed outside the pump. This model pump is matched with our LZJ series drilling rig which
include double wall tube. The two liquid will mix at the end of double wall tube, so it has good
performance on the waterproof curtaining grouting, improve soft ground.

■Product Details

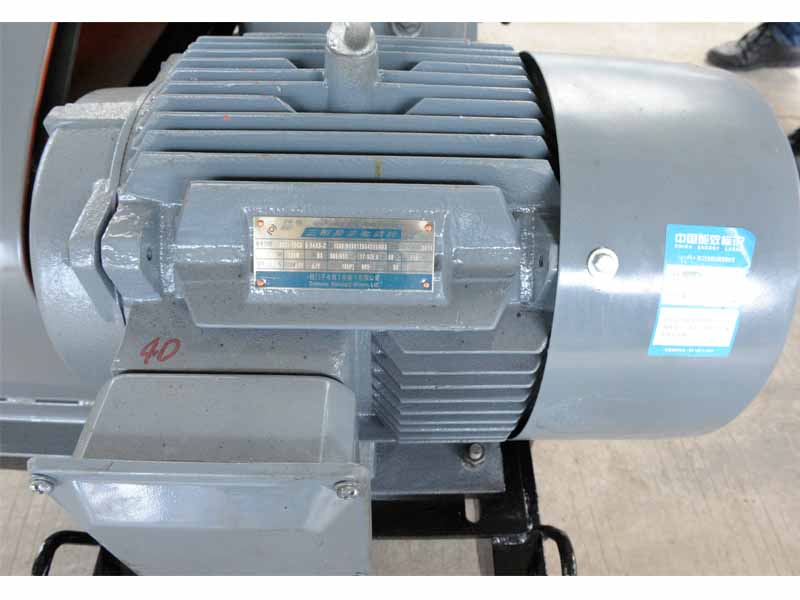

dual slurry grouting injection pump

Dual slurry grouting injection pump

WSS grouting technology pump

Dual slurry grouting injection pump

double slurry grouting pump

Dual slurry grouting injection pump

■Technical Parameters

Technical Data:


Model LSYB70/4
Output on high gear 70L/min
Rated pressure on high gear 2Mpa
Output on low gear 42L/min
Rated pressure on low gear 4Mpa
Motor brand Siemens
Motor power 7.5kw
Weight 486kg
Dimension 1806*750*780mm
