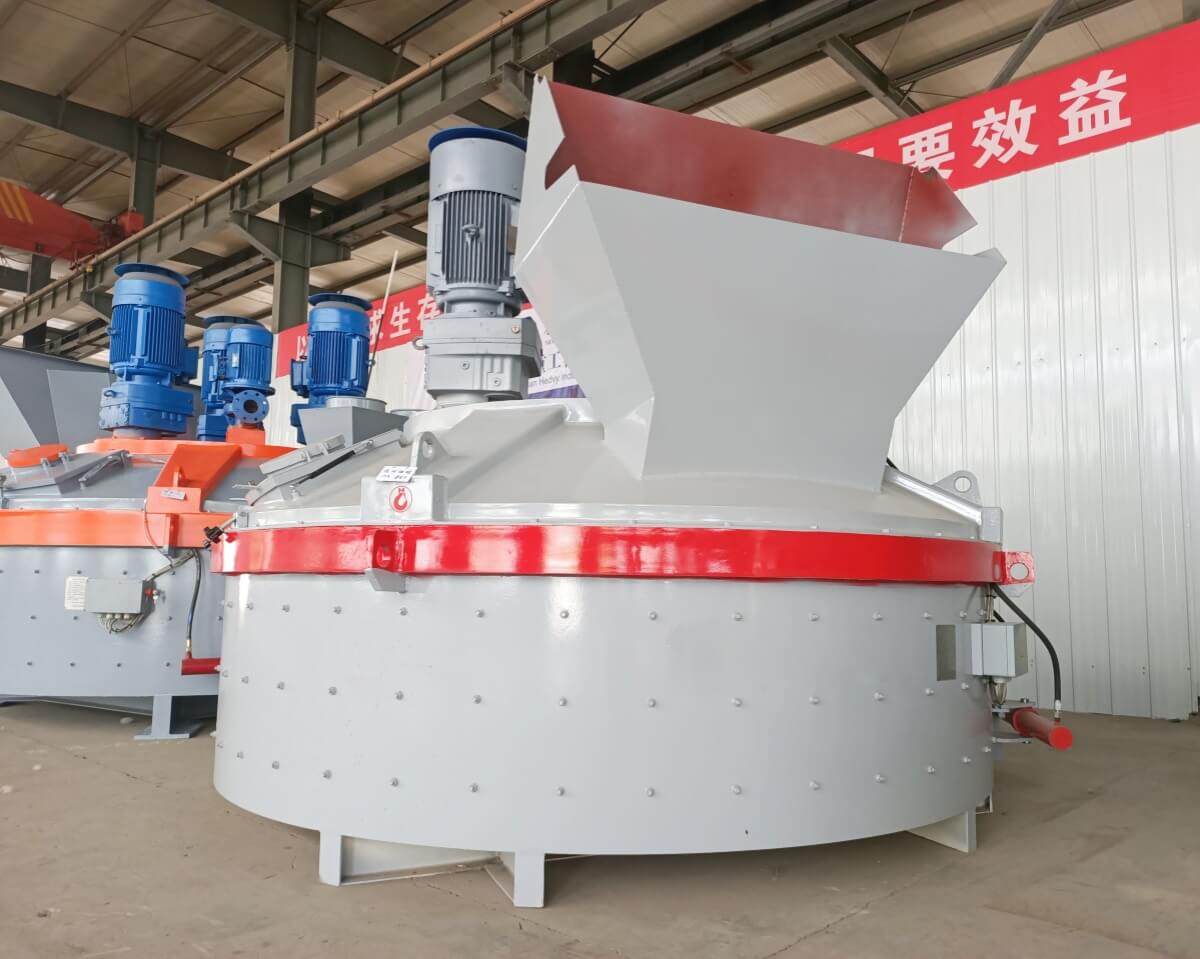

1000L planetary mixer for refractories
1000L planetary mixer for refractories adopts a planetary mixing device, through self-rotating and public-rotating dual motion tracks, to achieve full mixing of materials in three-dimensional space. Compared to traditional disk-type mixers, the mixing resistance is smaller, the mixing efficiency is increased by more than 30%, and it ensures that refractory materials (such as fireproof materials, plastic) achieve high uniformity in a short time.
A 1000L planetary mixer for refractories is a high-performance industrial mixing machine specifically designed to homogeneously blend refractory castables, gunning mixes, ramming masses, and other dense, abrasive ceramic or high-temperature materials used in furnaces, kilns, reactors, and linings.
Typical Mixing Process for Refractories in a 1000L Planetary:
Loading: Dry components (aggregates, fines, cement, additives) are typically loaded first, often via a pneumatic conveying system or a hopper.
Pre-Mixing (Dry): The mixer runs for a few minutes at a low speed to homogenize the dry powders.
Liquid Addition: Water and/or liquid binders are added gradually through a port. The speed is controlled to prevent balling or the formation of a “slip layer” on the surface.
Wet Mixing/Kneading: The main mixing phase occurs at a higher speed. The mixer kneads the paste until the desired consistency and homogeneity are achieved. This can take from 5 to 20 minutes.
Discharge: The bottom valve opens, and the mixed refractory material is discharged into a bin, truck, or conveying system for transport to the shaping process.
Applications of the 1000L planetary mixer for refractories:
1. Refractory Material Production
Casting Mixing: Variable frequency control of the mixing drum speed adapts to different formulation requirements, ensuring sufficient material reaction.
Plastics Preparation: Multi-dimensional mixing prevents particle settling and improves product stability.
Case Study: After replacing the traditional disc mixer, a refractory material factory saw a 25% increase in product qualification rate and a 15% reduction in mixing time.
2. Cross-Industry Expansion
Ultra-High Performance Concrete (UHPC): Achieves nanoscale particle dispersion to meet the reinforcement needs of building structures.
Glass and Ceramic Raw Materials: Uniform mixing prevents cracking during firing and improves yield.
Chemical raw materials: When processing high-viscosity materials, stirring resistance is reduced by 50% and energy consumption is reduced by 20%.
